Atlas Copco QL80 DTH Hammer: 6-35Bar, 23Hz, Rocking Drilling Tools

Atlas Copco QL80 DTH Hammer: 6-35Bar, 23Hz, Rocking Drilling Tools
Atlas Copco QL80 DTH Hammer: 6-35Bar, 23Hz, Rocking Drilling Tools
Atlas Copco QL80 DTH Hammer: 6-35Bar, 23Hz, Rocking Drilling Tools Atlas Copco QL80 DTH Hammer: 6-35Bar, 23Hz, Rocking Drilling Tools Atlas Copco QL80 DTH Hammer: 6-35Bar, 23Hz, Rocking Drilling Tools Atlas Copco QL80 DTH Hammer: 6-35Bar, 23Hz, Rocking Drilling Tools Atlas Copco QL80 DTH Hammer: 6-35Bar, 23Hz, Rocking Drilling Tools

Large Image :  Atlas Copco QL80 DTH Hammer: 6-35Bar, 23Hz, Rocking Drilling Tools

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO9001
Model Number: QL40 QL50 QL60 QL80
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable

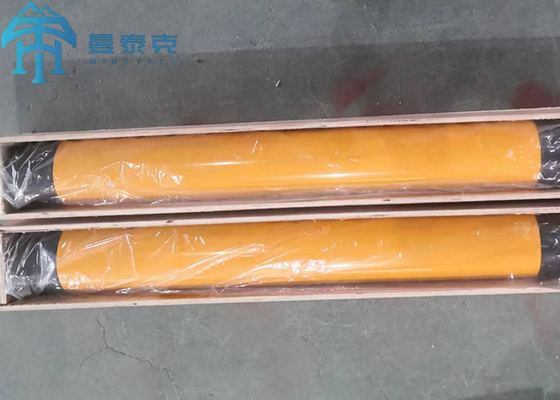

Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
Contact Now

Atlas Copco QL80 DTH Hammer: 6-35Bar, 23Hz, Rocking Drilling Tools

Description
Product Name: DTH Hammer Diameter: 99-180
Air Pressure: 1.2-3MPa Length: 1000-1500mm
Use: Ore Mining,Well Drilling,DTH Drilling Material: Carbon Steel,Tungsten Carbide & Steel
Application: Rock Drilling,quarry,water Well Drilling,mining Or Welling Drilling Color: Blue,Gold,Red,black Or Customized
Advantage: High Performance,High Wear Resistant,High-efficiency Usage: Hole Drilling,oil,water Well,Underground Mining,ore
Weight: 41-182kg Package: Wooden Case
Highlight:

DTH Hammers 1500mm

,

QL80 Rock Drilling Hammer

,

QL60 QL80 DTH Hammer

Atlas Copco QL80 DTH Hammer: 6-35Bar, 23Hz, Rocking Drilling Tools



Description:

The GSE QL series DTH Hammer: The Sinodrills GSE QL series hammers can fit the DTH bits with QL shank. Due to its optimized and robust design, in addition the superior material makes the DTH hammer longer life, less air consumption and 15% higher penetration speed than conventional DTH hammer in the market. The below is the specification of GSE QL series DTH hammer:



Specifications:



GSE QL hammer size GSE QL hammer working pressure The impact frequency when it is working on 18Bar
GSE QL40 6 bar ~ 35 Bar 31Hz
GSE QL50 6 bar ~ 35 Bar 30Hz
GSE QL60 6 bar ~ 35 Bar 28Hz
GSE QL80 6 bar ~ 35 Bar 23Hz



QL dth bit specification:



Shank style Diameter in mm Flat face Convex face Concave face Approx. weight Part number





QL 40

 105 √ √ √ 9.9 kgs QL 40-105
110 √ √ √ 10.1 kgs QL 40-110
115 √ √ √ 10.2kgs QL 40-115
120 √ √ √ 10.5 kgs QL 40-120
127 √ √ √ 11.2 kgs QL 40-127





QL 50

 135 √ √ √ 16.2 kgs QL50-135
140 √ √ √ 16.6 kgs QL50-140
146 √ √ √ 17.1 kgs QL50-146
152 √ √ √ 17.8 kgs QL50-152
165 √ √ √ 18.0 kgs QL50-165





QL 60

 152 √ √ √ 22.3 kgs QL60-152
165 √ √ √ 24.4kgs QL60-165
171 √ √ √ 24.8 kgs QL60-171
190 √ √ √ 29.0 kgs QL60-190
203 √ √ √ 33.0 kgs QL60-203





QL 80

 203 √   √ 48.5 kgs QL80-203
216 √   √ 50.1 kgs QL80-216
241 √   √ 60.1 kgs QL80-241
254 √   √ 62.5 kgs QL80-254
292 √   √ 85.0 kgs QL80-292
305 √   √ 83.9 kgs QL80-305





Application:



Rock Drilling,quarry,water well drilling,mining, construction blasting or welling drilling



Advantage:



 Longer operating life,excellent anti-wear properties, easy to operate, stable and reliable,smooth with high efficiency



Atlas Copco QL80 DTH Hammer: 6-35Bar, 23Hz, Rocking Drilling Tools 0Atlas Copco QL80 DTH Hammer: 6-35Bar, 23Hz, Rocking Drilling Tools 1

Atlas Copco QL80 DTH Hammer: 6-35Bar, 23Hz, Rocking Drilling Tools 2

Atlas Copco QL80 DTH Hammer: 6-35Bar, 23Hz, Rocking Drilling Tools 3













Tag:

127mm DTH Hammer,

DTH ql80 hammer,

12in DTH Hammer
