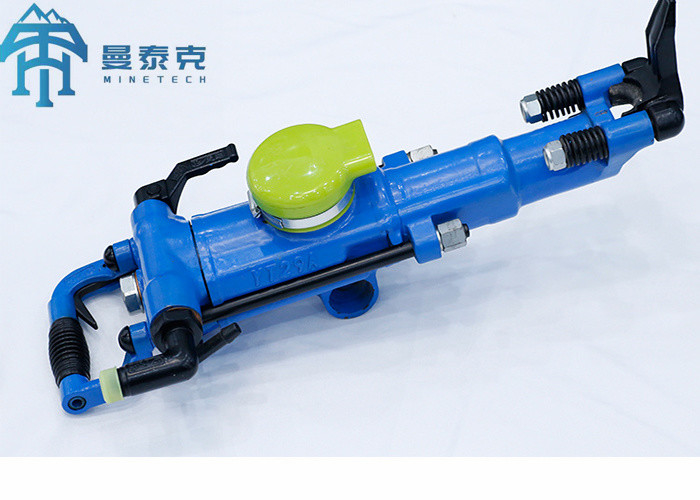

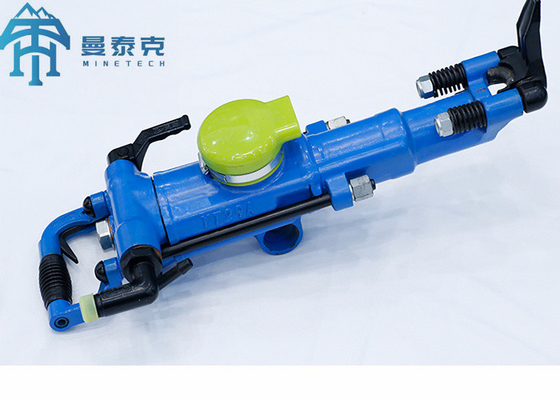

Pneumatic YT29A Rock Drill Machine With Air Leg Energy Saving

Pneumatic YT29A Rock Drill Machine With Air Leg Energy Saving
Pneumatic YT29A Rock Drill Machine With Air Leg Energy Saving

Large Image :  Pneumatic YT29A Rock Drill Machine With Air Leg Energy Saving

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: YT29A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 1000 pieces per month

Pneumatic YT29A Rock Drill Machine With Air Leg Energy Saving

Description
Product Name: Pneumatic Rock Drill Model No: YT 29A
Drilling Hole Diameter: 34 - 45mm Drilling Hole: 5m
Weight: 27kgs Size: 659 X 248 X 205 Mm
Color: Blue,Black, Grey Usage: Ore,mining Used,Rock Drilling
Package: Wooden Box Power Type: Pneumatic,Air Compressor And Electric
Highlight:

Pneumatic YT29A Rock Drill

,

Pneumatic Rock Drill energy saving

,

YT29A Rock Drill energy saving

Pneumatic YT29A Rock Drill Machine With Air Leg



Description:

Pneumatic rock drill is a kind of high efficiency air leg rock drill machine.
When it is matched with Model FY250 Oil reservoir and Model FT160A or FT160B Air-leg , it is suitable for wet drillingunder various of rocks


Used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and national defence project facility.

Specification:


YT29A AIR LEG ROCK DRILL
Weight27 kg
External Dimensions(L W H)659x248x205 mm
Cylinder Diameter82 mm
Piston Structure Stroke60 mm
Working Air Pressure0.4~0.63 MPa
Impact Frequency≥39 Hz
Impact energy≥78 J
Air Consumption≤88 L/s
Rotation Torque≥20 N.m
Water Pressure0.3~0.48 MPa
Air Pipe Inner Diameter25 mm
Water Pipe Inner Diameter13 mm
Drilling Hole Diameter34~45 mm
Drilling Hole Depth5 m
Working Temperature-30~45℃
Shank SizeH22x108±1 mm




 FT160AFT160BFT160CFT170
Weight17 kg16 kg18 kg18 kg
Length1668 mm1428 mm1820 mm1668 mm
Propulsion Stroke1338 mm1098 mm1490 mm1338 mm
Cylinder Inner Diameter65 mm65 mm65 mm67 mm



Advantage:

Low price, easy of use, improved efficiency and energy savings.

Target markets:


Hebei Minetech Machinery Technology Co, Ltd. is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province,China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption, like drill bit and drill rod with own factory in Shijiazhuang City.

With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.

Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, South America and so on, and established a good brand and reputation international market.
