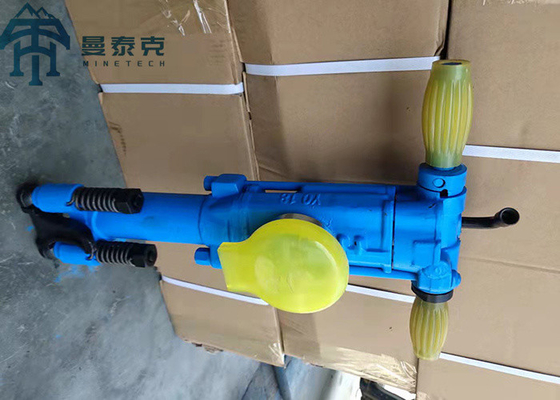

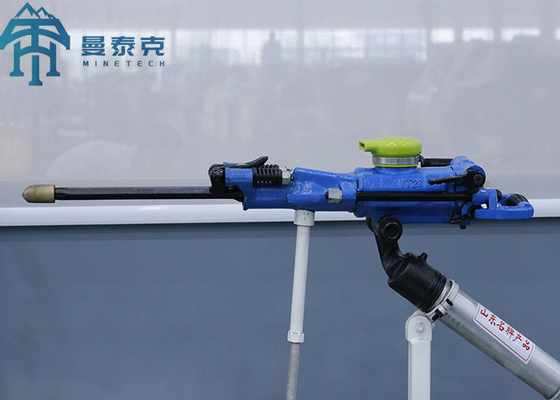

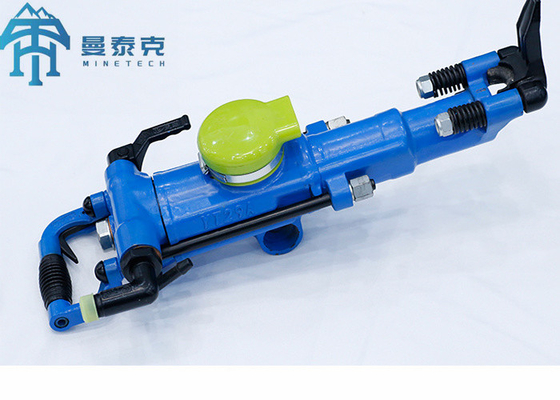

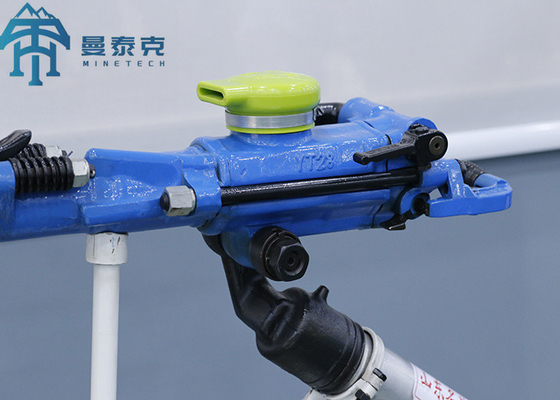

YT28 Model Air Legged Pneumatic Rock Drilling Machine with 50mm Drilling Diameter and Max 20m Depth

YT28 Model Air Legged Pneumatic Rock Drilling Machine with 50mm Drilling Diameter and Max 20m Depth
YT28 Model Air Legged Pneumatic Rock Drilling Machine with 50mm Drilling Diameter and Max 20m Depth YT28 Model Air Legged Pneumatic Rock Drilling Machine with 50mm Drilling Diameter and Max 20m Depth YT28 Model Air Legged Pneumatic Rock Drilling Machine with 50mm Drilling Diameter and Max 20m Depth YT28 Model Air Legged Pneumatic Rock Drilling Machine with 50mm Drilling Diameter and Max 20m Depth YT28 Model Air Legged Pneumatic Rock Drilling Machine with 50mm Drilling Diameter and Max 20m Depth YT28 Model Air Legged Pneumatic Rock Drilling Machine with 50mm Drilling Diameter and Max 20m Depth

Large Image :  YT28 Model Air Legged Pneumatic Rock Drilling Machine with 50mm Drilling Diameter and Max 20m Depth

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: YT28
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $3-$300
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: Western Union,T/T,MoneyGram
Supply Ability: 1000 pieces per month

YT28 Model Air Legged Pneumatic Rock Drilling Machine with 50mm Drilling Diameter and Max 20m Depth

Description
Product Name: Pneumatic Rock Drill Model No: YT28
Drilling Diameter: 50mm Drilling Depth: Max20m
Weight: 24kgs Size: 659 X 248 X 205 Mm
Color: Blue Usage: Ore,mining Used,Rock Drilling
Package: Wooden Box Drill Rod Diameter: B22*108mm
Highlight:

Air Legged Pneumatic Rock Drilling Machine

,

Air Legged Portable Drilling Rig

,

YT28 Pneumatic Rock Drilling Machine

YT28 Air Legged Pneumatic Rock Drilling Machine Portable Drilling Rig
Portable Mine Drilling Rig YT28 With Air Leg Pneumatic Rock Drilling Machine
Pneumatic rock drill is a high efficiency air leg rock drill machine. When matched with Model FY250 Oil reservoir and Model FT160A or FT160B Air-leg, it is suitable for wet drilling under various rock conditions.
Used for blasting holes and other drilling works in quarries, railway construction, water conservancy construction, and national defense project facilities.
Specifications
YT28 AIR LEG ROCK DRILL
Weight 27 kg
External Dimensions (L W H) 659x248x205 mm
Cylinder Diameter 82 mm
Piston Structure Stroke 60 mm
Working Air Pressure 0.4~0.63 MPa
Impact Frequency ≥39 Hz
Impact energy ≥78 J
Air Consumption ≤88 L/s
Rotation Torque ≥20 N.m
Water Pressure 0.3~0.48 MPa
Air Pipe Inner Diameter 25 mm
Water Pipe Inner Diameter 13 mm
Drilling Hole Diameter 34~45 mm
Drilling Hole Depth 5 m
Working Temperature -30~45℃
Shank Size H22x108±1 mm
Model FT160A FT160B FT160C FT170
Weight 17 kg 16 kg 18 kg 18 kg
Length 1668 mm 1428 mm 1820 mm 1668 mm
Propulsion Stroke 1338 mm 1098 mm 1490 mm 1338 mm
Cylinder Inner Diameter 65 mm 65 mm 65 mm 67 mm
Advantages
  • Low price
  • Easy to use
  • Improved efficiency
  • Energy savings
Manufacturer Information
Hebei Minetech Machinery Technology Co, Ltd. is a joint venture enterprise with European Partner, located in Shijiazhuang City, Hebei Province, China. We specialize in manufacturing and exporting mining machinery, including hydraulic and pneumatic drill machines, roof bolters, and drilling consumables like drill bits and drill rods. With over a decade of experience and a team of professional engineers and sales staff, we focus on providing complete solutions for mining machinery. Our target markets have gradually shifted from domestic to international, with products exported to more than thirty countries and regions including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, and South America, establishing a strong brand reputation in international markets.
