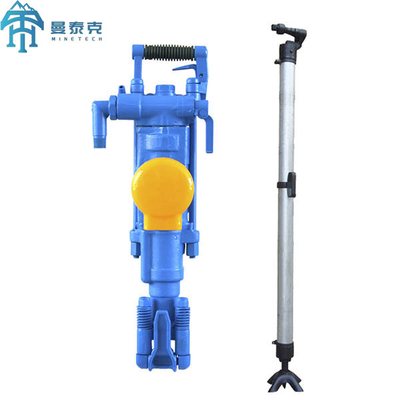

Pneumatic Jack Hammer YT29A Rock Drilling Machine with Pusher Leg

Certification
China HEBEI MINETECH MACHINERY TECHNOLOGY CO., LTD certification
Customer Reviews
Обслуживание в Minetech - лучшее из всего, что мы когда-либо видели.

—— Замир

I truly appreciate your help. I have dealt with many factories and you are among the most professional and helpful. Thank you

—— Eric West

Minetech всегда профессионально отвечает на наши вопросы и потребности.

—— Татьяна

Thanks for your help and aaistance and your great attention to detaiils

—— Giulio Ferrari

La calidad de los productos del Minetech es buena.

—— Jesus Aliva

Minetech siempre ha sido profesional en su respuesta a nuestras preguntas y preocupaciones, ésta ha permitido que mi empresa crezca y se amplíe.

—— Javier Cruz

El servicio de MTH fue excelente y la respuesta fue muy rápida.

—— Juan Daniel

I'm Online Chat Now

Pneumatic Jack Hammer YT29A Rock Drilling Machine with Pusher Leg

Pneumatic Jack Hammer YT29A Rock Drilling Machine with Pusher Leg
Pneumatic Jack Hammer YT29A Rock Drilling Machine with Pusher Leg
Pneumatic Jack Hammer YT29A Rock Drilling Machine with Pusher Leg Pneumatic Jack Hammer YT29A Rock Drilling Machine with Pusher Leg Pneumatic Jack Hammer YT29A Rock Drilling Machine with Pusher Leg Pneumatic Jack Hammer YT29A Rock Drilling Machine with Pusher Leg Pneumatic Jack Hammer YT29A Rock Drilling Machine with Pusher Leg Pneumatic Jack Hammer YT29A Rock Drilling Machine with Pusher Leg

Large Image :  Pneumatic Jack Hammer YT29A Rock Drilling Machine with Pusher Leg

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: YT29A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 1000 pieces per month

Pneumatic Jack Hammer YT29A Rock Drilling Machine with Pusher Leg

Description
Key Word: Rock Drilling Machine Model No: YT29A
Core Components: Pump Drilling Diameter: 50mm, 60mm
Weight: 27kgs Machinery Test Report:: Provided
Color: Blue Usage: Ore,mining Used,Rock Drilling
Package: Wooden Box Warranty: 1 Year
Highlight:

Pneumatic Jack Hammer YT29A

,

Multipurpose Rock Drilling equipment

,

Multipurpose Pneumatic Jack Hammer

Pneumatic Jack Hammer YT29A Rock Drilling Machine with Pusher Leg



Rock Drilling Machine Description:

Pneumatic rock drill is a kind of high efficiency air leg rock drill machine.
When it is matched with Model FY250 Oil reservoir and Model FT160A or FT160B Air-leg , it is suitable for wet drillingunder various of rocks


Used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and national defence project facility.

Rock Drilling Machine Specification:

YT29A AIR LEG ROCK DRILL
Weight27kg
External Dimensions(L W H)659x248x205 mm
Cylinder Diameter82 mm
Piston Structure Stroke60 mm
Working Air Pressure0.4~0.63 MPa
Impact Frequency≥39 Hz
Impact energy≥78 J
Air Consumption≤88 L/s
Rotation Torque≥20 N.m
Water Pressure0.3~0.48 MPa
Air Pipe Inner Diameter25 mm
Water Pipe Inner Diameter13 mm
Drilling Hole Diameter34~45 mm
Drilling Hole Depth5 m
Working Temperature-30~45℃
Shank SizeH22x108±1 mm




 FT160AFT160BFT160CFT170
Weight17 kg16 kg18 kg18 kg
Length1668 mm1428 mm1820 mm1668 mm
Propulsion Stroke1338 mm1098 mm1490 mm1338 mm
Cylinder Inner Diameter65 mm65 mm65 mm67 mm



Rock Drilling Machine Advantage:

Low price, easy of use, improved efficiency and energy savings.

Company Profile:

Hebei Minetech Machinery Technology Co, Ltd. is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province,China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption, like drill bit and drill rod with own factory in Shijiazhuang City.

With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.

Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, South America and so on, and established a good brand and reputation international market.



Pneumatic Jack Hammer YT29A Rock Drilling Machine with Pusher Leg 0Pneumatic Jack Hammer YT29A Rock Drilling Machine with Pusher Leg 1Pneumatic Jack Hammer YT29A Rock Drilling Machine with Pusher Leg 2Pneumatic Jack Hammer YT29A Rock Drilling Machine with Pusher Leg 3
Pneumatic Jack Hammer YT29A Rock Drilling Machine with Pusher Leg 4
