ISO9001 YT29A Pusher Leg Rock Drilling Machine with 659x248x205mm Size and 0.4-0.63 MPa Working Air Pressure

ISO9001 YT29A Pusher Leg Rock Drilling Machine with 659x248x205mm Size and 0.4-0.63 MPa Working Air Pressure
ISO9001 YT29A Pusher Leg Rock Drilling Machine with 659x248x205mm Size and 0.4-0.63 MPa Working Air Pressure
ISO9001 YT29A Pusher Leg Rock Drilling Machine with 659x248x205mm Size and 0.4-0.63 MPa Working Air Pressure ISO9001 YT29A Pusher Leg Rock Drilling Machine with 659x248x205mm Size and 0.4-0.63 MPa Working Air Pressure

Large Image :  ISO9001 YT29A Pusher Leg Rock Drilling Machine with 659x248x205mm Size and 0.4-0.63 MPa Working Air Pressure

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: Yt29a Pusher Leg Rock Drilling Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $3-$300
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: Western Union,T/T,MoneyGram
Supply Ability: 1000 pieces per month
Contact Now

ISO9001 YT29A Pusher Leg Rock Drilling Machine with 659x248x205mm Size and 0.4-0.63 MPa Working Air Pressure

Description
Product Name: Yt29a Pusher Leg Rock Drilling Machine Model No: YT 29A
Weight: 27kgs Size: 659 X 248 X 205 Mm
Drilling Hole Diameter: 34 - 45mm Drilling Hole: 5m
Color: Request Usage: Ore,mining Used,Rock Drilling
Power Type: Pneumatic,Air Compressor And Electric Package: Standard
Highlight:

Pusher Leg Rock Drill Air Compressor

,

Yt29a Rock Drill Air Compressor

,

Yt29a compressor rock drilling machine

ISO9001 Yt29a Pusher Leg Rock Drill Air Compressor Machine For Gold Mining
Gold Mine Air Compressor Yt29a Pusher Leg Rock Drilling Machine

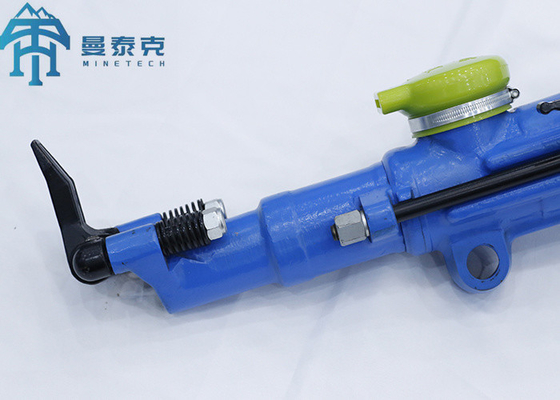

Description Of Yt29a Pusher Leg Rock Drilling Machine
Pneumatic rock drill is a high efficiency air leg rock drill machine. When matched with Model FY250 Oil reservoir and Model FT160A or FT160B Air-leg, it is suitable for wet drilling under various rock conditions.
Application Of Yt29a Pusher Leg Rock Drilling Machine
Used for blasting holes and other drilling works in quarries, railway construction, water conservancy construction, and national defense project facilities.
Specification Of Yt29a Pusher Leg Rock Drilling Machine
Weight 27 kg
External Dimensions (L W H) 659x248x205 mm
Piston Diameter 82 mm
Piston Structure Stroke 60 mm
Working Air Pressure 0.4~0.63 MPa
Impact Frequency ≥39 Hz
Impact energy ≥78 J
Air Consumption ≤88 L/s
Rotation Torque ≥20 N.m
Water Pressure 0.3~0.48 MPa
Air Pipe Inner Diameter 25 mm
Water Pipe Inner Diameter 13 mm
Drilling Hole Diameter 34~45 mm
Drilling Hole Depth 5 m
Working Temperature -30~45℃
Shank Size H22x108±1 mm
FY250 MODEL OIL LUBRICATOR
Weight 1.2 Kg
Oil Capacity 0.25 L
FT160A FT160B FT160C FT170
Weight 17 kg 16 kg 18 kg 18 kg
Length 1668 mm 1428 mm 1820 mm 1668 mm
Propulsion Stroke 1338 mm 1098 mm 1490 mm 1338 mm
Cylinder Inner Diameter 65 mm 65 mm 65 mm 67 mm
Advantage Of Yt29a Pusher Leg Rock Drilling Machine
  • Adopts the latest designing technology
  • High speed operation with low failure rate
  • Durable wearing parts
  • Low noise operation
  • Lightweight design
  • Energy efficient and environmentally sound
ISO9001 YT29A Pusher Leg Rock Drilling Machine with 659x248x205mm Size and 0.4-0.63 MPa Working Air Pressure 0
ISO9001 YT29A Pusher Leg Rock Drilling Machine with 659x248x205mm Size and 0.4-0.63 MPa Working Air Pressure 1
ISO9001 YT29A Pusher Leg Rock Drilling Machine with 659x248x205mm Size and 0.4-0.63 MPa Working Air Pressure 2
ISO9001 YT29A Pusher Leg Rock Drilling Machine with 659x248x205mm Size and 0.4-0.63 MPa Working Air Pressure 3
