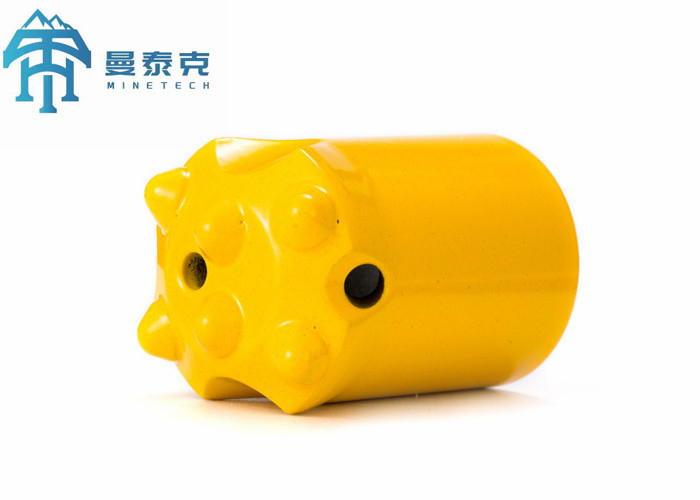

Rock Drill Tool Tapered Button Bit 34mm 6 Buttons 11 Degree Tungsten Carbide

Certification
China HEBEI MINETECH MACHINERY TECHNOLOGY CO., LTD certification
Customer Reviews
Обслуживание в Minetech - лучшее из всего, что мы когда-либо видели.

—— Замир

I truly appreciate your help. I have dealt with many factories and you are among the most professional and helpful. Thank you

—— Eric West

Minetech всегда профессионально отвечает на наши вопросы и потребности.

—— Татьяна

Thanks for your help and aaistance and your great attention to detaiils

—— Giulio Ferrari

La calidad de los productos del Minetech es buena.

—— Jesus Aliva

Minetech siempre ha sido profesional en su respuesta a nuestras preguntas y preocupaciones, ésta ha permitido que mi empresa crezca y se amplíe.

—— Javier Cruz

El servicio de MTH fue excelente y la respuesta fue muy rápida.

—— Juan Daniel

I'm Online Chat Now

Rock Drill Tool Tapered Button Bit 34mm 6 Buttons 11 Degree Tungsten Carbide

Rock Drill Tool Tapered Button Bit 34mm 6 Buttons 11 Degree Tungsten Carbide
Rock Drill Tool Tapered Button Bit 34mm 6 Buttons 11 Degree Tungsten Carbide
Rock Drill Tool Tapered Button Bit 34mm 6 Buttons 11 Degree Tungsten Carbide Rock Drill Tool Tapered Button Bit 34mm 6 Buttons 11 Degree Tungsten Carbide

Large Image :  Rock Drill Tool Tapered Button Bit 34mm 6 Buttons 11 Degree Tungsten Carbide

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: 34mm
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: Negotiable
Packaging Details: plastic box and wooden case
Delivery Time: 25 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000 pcs per month

Rock Drill Tool Tapered Button Bit 34mm 6 Buttons 11 Degree Tungsten Carbide

Description
Type: Tapered Button Bit Diameter: 34mm
Tapered: 11° Weight: 0.23kg
Buttons: 6 Flushing Hole: 2
Process: Forging Package: Plastic Box Or Wooden Case
Advantage: High Performance Materiales: Tungsten Carbide
Color: Yellow, Black, Others Are Available Application: Construction Works, Energy, Mining And Tunneling
Highlight:

34mm Dia Tapered Button Bit

,

Tapered Button Bit ISO 9001

,

Cemented Carbide Tapered Button Bit

Rock Drill Tool Tapered Button Bit 34mm 6 Buttons 11 Degree Tungsten Carbide


Description:

Cemented carbide is one of the most successful composite engineering materials produced.
Its unique combination of strength,hardness and toughness satisfies the most demanding applications – but working with such high stresses, inserts and buttons are more subject to wear.
MTH also use the same hot inserting technology as including the steel materials and Heat treatment.



Product Characteristic:



For 22 mm (7/8") rod. 11° taper. Short Skirt.
Diameter Buttons Flushing hole Length Weight
34 1 11/32 5x7 2x7 1 1 50 0.23
36 1 27/64 5x8 2x7 1 1 50 0.25
38 1 1/2 5x9 2x7 1 2 50 0.28
40 1 37/64 5x9 2x8 1 2 50 0.32




Advantage :

Good drilling performance and long service life.



Company Profile:



Hebei Minetech Machinery Technology Co, Ltd. is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province,China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption, like drill bit and drill rod with own factory in Shijiazhuang City.



With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.


Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, South America and so on, and established a good brand and reputation international market.
