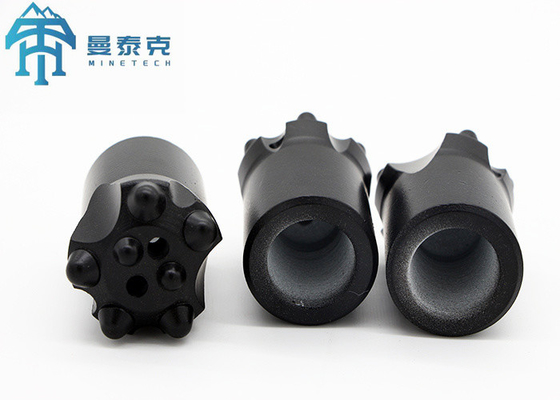

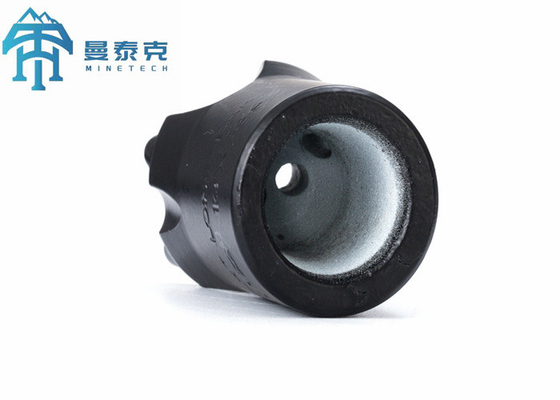

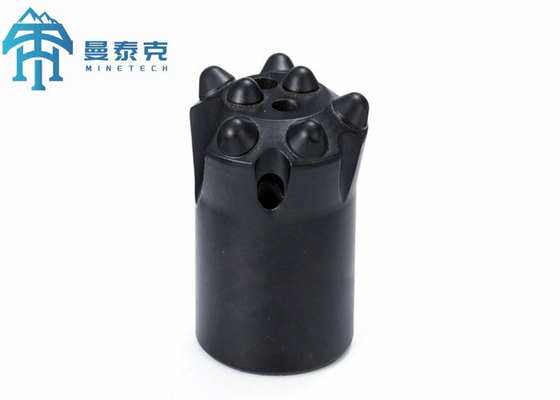

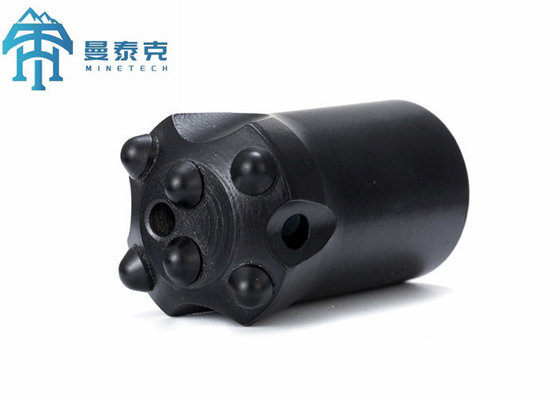

Mining Machinery Parts Tapered Button Bit 7 Buttons 11 Degrees 38mm for Rock Drilling

Mining Machinery Parts Tapered Button Bit 7 Buttons 11 Degrees 38mm for Rock Drilling
Mining Machinery Parts Tapered Button Bit 7 Buttons 11 Degrees 38mm for Rock Drilling
Mining Machinery Parts Tapered Button Bit 7 Buttons 11 Degrees 38mm for Rock Drilling Mining Machinery Parts Tapered Button Bit 7 Buttons 11 Degrees 38mm for Rock Drilling Mining Machinery Parts Tapered Button Bit 7 Buttons 11 Degrees 38mm for Rock Drilling Mining Machinery Parts Tapered Button Bit 7 Buttons 11 Degrees 38mm for Rock Drilling Mining Machinery Parts Tapered Button Bit 7 Buttons 11 Degrees 38mm for Rock Drilling Mining Machinery Parts Tapered Button Bit 7 Buttons 11 Degrees 38mm for Rock Drilling

Large Image :  Mining Machinery Parts Tapered Button Bit 7 Buttons 11 Degrees 38mm for Rock Drilling

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: 38mm
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: Negotiable
Packaging Details: plastic box and wooden case
Delivery Time: 25 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000 pcs per month

Mining Machinery Parts Tapered Button Bit 7 Buttons 11 Degrees 38mm for Rock Drilling

Description
Name: Tapered Button Bit Diameter: 38mm
Color: Black Weight: 500g
Material: Tungsten Alloy +42CRMO Process: Forging
Carbide: YK05 Use: Mining, Quarrying And Tunneling
Package: Suitcase Certification: ISO9001
Highlight:

36mm Dia Tapered Button Bit

,

7teeths Anchor Tapered Button Bit

,

500g Tapered Button Bit

Mining Machinery Parts Tapered Button Bit 7 Buttons 11 Degrees 38mm for Rock Drilling



Product features:

Premium designs and steel and premium tungsten carbide insert grade T6 supplied by Boart Longyear, tungsten carbide code No. YK05 supplied by Zhuzhou 601 factory, KK06 and KK06H carbide. Offers industry-leading strength and penetration rates for more productivity. Excellent straightness and hole clean quality. Both the shape, diameter and color can be customized as per your requirements.

Description:

The Drill Bits are made from grade hard alloy and special steel, generally matched with the light-duty rock drill, to drill the rock hole within diameter of 50mm. The drill tools are used in metallurgy mine, geological exploration, water conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc.


Part Number

Bit Diameter (mm)

Bit Diameter (inch)

Front Buttons (No. x mm)

Gauge Buttons (No. x mm)

4148300223

32

1 1/4

2x7

5x7

4148300224

33

1 2/7

2x7

5x7

4148300225

33

1 2/7

2x7

6x7

4148300226

35

1 3/8

2x7

6x7

4148300227

38

1 1/2

2x7

5x9

4148300228

41

1 5/8

2x7

5x9

4148300229

35

1 3/8

2x7

5x9

4148300230

36

1 3/7

2x7

5x9

4148300231

38

1 1/2

2x7

5x9

4148300232

41

1 5/8

2x7

5x9



Company profile:

Hebei Minetech Machinery Technology Co, Ltd is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province,China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption ,like drill bit and drill rod with own factory in Shijiazhuang City.With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.
Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, South America and so on, and established a good brand and reputation ininternational market.
