28mm Diameter 800mm Work Length Chisel Tip Integral Drill Rod with 108x22mm Shank for Rock Drilling

28mm Diameter 800mm Work Length Chisel Tip Integral Drill Rod with 108x22mm Shank for Rock Drilling
28mm Diameter 800mm Work Length Chisel Tip Integral Drill Rod with 108x22mm Shank for Rock Drilling
28mm Diameter 800mm Work Length Chisel Tip Integral Drill Rod with 108x22mm Shank for Rock Drilling 28mm Diameter 800mm Work Length Chisel Tip Integral Drill Rod with 108x22mm Shank for Rock Drilling

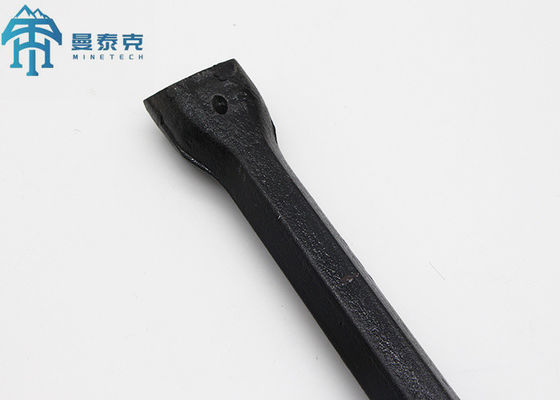

Large Image :  28mm Diameter 800mm Work Length Chisel Tip Integral Drill Rod with 108x22mm Shank for Rock Drilling

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: Chisel Tip Integral Drill Rod
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: $3-$300
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 20000 piece per month
Contact Now

28mm Diameter 800mm Work Length Chisel Tip Integral Drill Rod with 108x22mm Shank for Rock Drilling

Description
Product Name: Chisel Tip Integral Drill Rod Top Tip: Chisel
Shank: 108x22mm Diameter: 28mm
Work Length: 800mm Weight: 2.2kgs
Color: Customized Processing Type: Forging
Material: Carbon Steel,Carbide Usage: Small Hole Drilling,underground Mining,coal Mining And Geological Drilling,Rock Drilling
Highlight:

chisel tip integral drill rod

,

yn27 jackhammer equipment integral drill rod

,

yn27 jackhammer equipment integral rod

Chisel Tip Integral Drill Rod YN27 Jackhammer Equipment Part
Product Description

Integral drill steels, also known as integral drill rods, are ideal for small hole drilling applications. These rods consist of hexagonal rods with integrated cemented carbide chisel-shaped bit heads.

Specifications
Parameter Value
Bit diameter 28mm
Work Length 800mm
Weight 2.2kgs
Shank 22x108mm
Applications

Integral drill rods are designed for use with hand-held rock drills in granite and marble quarries, as well as underground mining operations. Available in various work lengths ranging from 400 to 6400mm to suit different application requirements.

Key Advantages
  • Reduces energy loss at tapered rod and bit joint
  • Excellent transmission performance
  • Improves drilling speed and efficiency
Packaging

Supplied in wooden cases or bundles for secure transportation and storage.

Product Images
28mm Diameter 800mm Work Length Chisel Tip Integral Drill Rod with 108x22mm Shank for Rock Drilling 0 28mm Diameter 800mm Work Length Chisel Tip Integral Drill Rod with 108x22mm Shank for Rock Drilling 1 28mm Diameter 800mm Work Length Chisel Tip Integral Drill Rod with 108x22mm Shank for Rock Drilling 2 28mm Diameter 800mm Work Length Chisel Tip Integral Drill Rod with 108x22mm Shank for Rock Drilling 3
