800mm H22*108mm Taper Drill Rod with 3.03 kg/m Weight for Pneumatic Rock Drilling

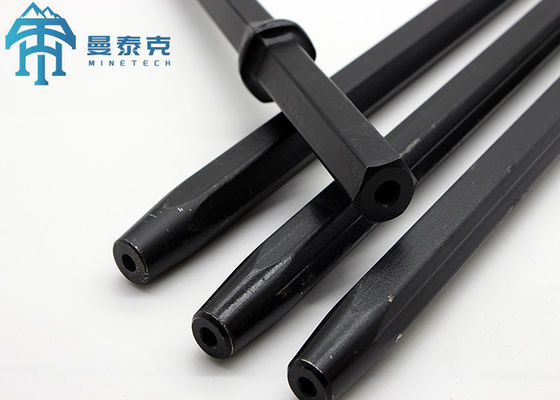

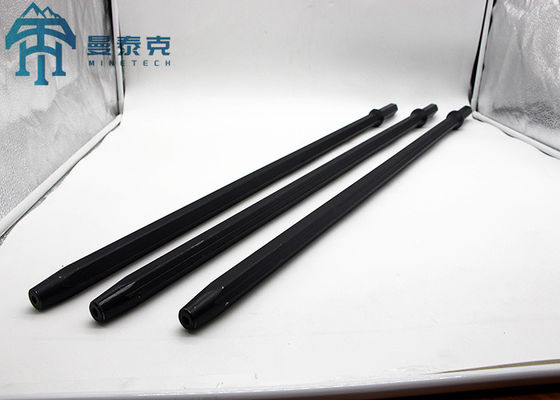

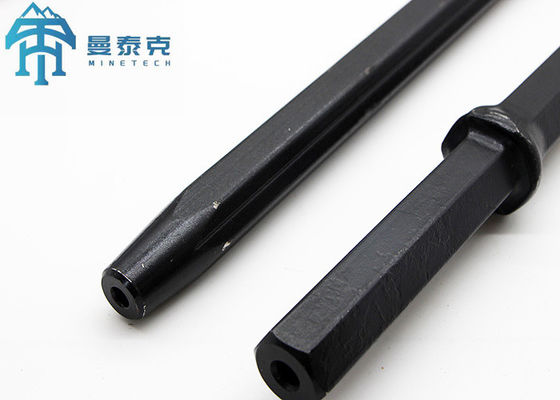

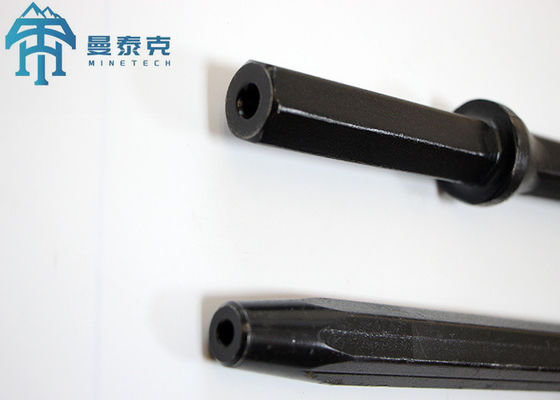

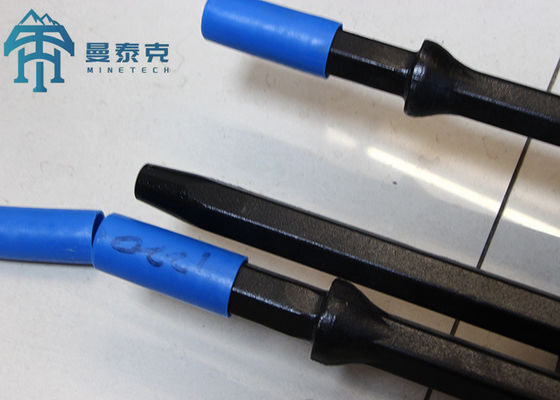

Large Image : 800mm H22*108mm Taper Drill Rod with 3.03 kg/m Weight for Pneumatic Rock Drilling

Product Details:

Place of Origin:	CHINA
Brand Name:	MTH
Certification:	ISO 9001
Model Number:	11 degree

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$3-$300
Packaging Details:	pallet or wooden case
Delivery Time:	10-20 days
Payment Terms:	T/T,Western Union,MoneyGram,L/C
Supply Ability:	10 tons per month

Contact Now

800mm H22*108mm Taper Drill Rod with 3.03 kg/m Weight for Pneumatic Rock Drilling

Description

Product Name:	Tapered Drill Rod	Processing Type:	Forging,Heat Treatment
Use:	Ore Mining	Material:	Carbon Steel
Machine Type:	Drilling Tools	Place Of Origin:	China
Advantage:	Carburized Technology	Shank:	H22*108mm
Weight:	3.03 Kg/m	Certification:	ISO 9001
Highlight:	hexagonal taper drill rod , h22 taper drill rod , 800mm hex drill rod

800mm H22 Taper Drill Rod Pneumatic Rock Drilling Tools

Product Description

800mm H22 Pneumatic Rock Drilling Tools Taper Drill Pipe Hexagonal Drill Rod

Product Information

Tapered Drill rod, also called the Hexagonal Drill Rod, is suitable for small pneumatic rock drills for shallow hole drilling operations. These rods are generally made of H22 and H25 hexagonal hollow drill steel and must be matched with a taper drill bit for rock drilling.

Common applications include rock drilling operations in quarries, coal mines, road beds, construction, and other fields. Conventional taper angles for tapered drill rods are 7°, 11° and 12°.

Applications

Rock Drilling/Water Well Mining
Application in granite and marble quarry, gold mine, railway, tunnel, etc.
Used for rock drilling, blasting holes, and drilling works in quarries, metallic mines, tunneling and constructions

Features

Carburized technology for superior wear resistance and extended service life.

Suitable Rock Drill

The tapered drill rods are compatible with:

Pneumatic rock drills
Hydraulic rock drills
Medium hard to hard and abrasive rock formations
Models including Y24, Y26, YT24, YT27, YT28, YT29 and YN27C rock drills

Specifications

Drill Rod	Length(mm) with shank	Foot	Weight approx(kg)	Taper	Shank
Tapered Drill Rod	1320mm	4"	4.4	7,11,12 degree	108mm
Tapered Drill Rod	1632mm	5"	5.4	7,11,12 degree	108mm
Tapered Drill Rod	1936mm	6"	6.4	7,11,12 degree	108mm
Tapered Drill Rod	2546mm	8"	8.4	7,11,12 degree	108mm
