23-42mm Diameter 400-6000mm Length Integral Drill Rod for Ore Mining with Tungsten Carbide Chisel Bit

Large Image : 23-42mm Diameter 400-6000mm Length Integral Drill Rod for Ore Mining with Tungsten Carbide Chisel Bit

Product Details:

Place of Origin:	CHINA
Brand Name:	MTH
Certification:	ISO 9001
Model Number:	Integral Drill Rod

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Price:	$3-$300
Packaging Details:	wooden case
Delivery Time:	10-15 days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	20000 piece per month

Contact Now

23-42mm Diameter 400-6000mm Length Integral Drill Rod for Ore Mining with Tungsten Carbide Chisel Bit

Description

Name:	Integrall Drill Rod	Use:	Ore Mining,Rock Drilling,mining And Quarry
Processing Type:	Forging	Diameter:	23-42mm
Material:	Carbon Steel,Carbide	Machine Type:	Drilling Tool,rock Drill
Usage:	Small Hole Drilling,underground Mining,coal Mining And Geological Drilling,Rock Drilling	Application:	Stone,Quarry,Tunnel
Shank Style:	H22*108mm	Effective Length:	0.4-6.4m
Highlight:	small hole chisel drill rod , chisel drill rod tungsten carbide , small hole integral rod

Small Hole Drilling Tools Chisel Drill Rod Tungsten Carbide

Small Hole Drilling Tools Tungsten Carbide Chisel Bit Integral Drill Rod

Integral drill rods, also known as integral drill steels, are designed for hand-held rock drills in granite and marble quarries, underground mining, and small blasting hole drilling applications. Available with shank sizes of H22x108mm and H19x108mm, as well as standard hex configurations.

These rods reduce impact energy expenses while improving drilling speed and efficiency. Suitable for bore hole diameters ranging from 30mm to 41mm, each rod is manufactured using premium quality alloy steel and high-grade tungsten carbide for superior performance.

Key Advantages

Reliable material composition ensures long service life
Enhanced drilling speed and efficiency
Reduced impact energy requirements
Premium alloy steel construction
High-quality tungsten carbide components

Applications

Ideal for marble quarry operations, diamond drilling applications, and use with rock drills and rock bits in mining and construction environments.

Specifications

Shank Style	Effective Length	Head Diameter
mm	foot/inch	mm	inch
Hex19 × 108mm	400 ~ 4,000	1' 4" ~ 13' 1"	23 ~ 35	27/32 ~ 1 3/8
Hex22 × 108mm	400 ~ 9,600	1' 4" ~ 31' 6"	26 ~ 41	1 1/32 ~ 1 39/64
Hex25 × 108mm	600 ~ 6,400	1' 11 5/8" ~ 21'	33 ~ 45	1 19/64 ~ 1 25/32
Hex25 ×159mm	800 ~ 6,400	2' 7" ~ 21'	35 ~ 42	1 3/8 ~ 1 21/32

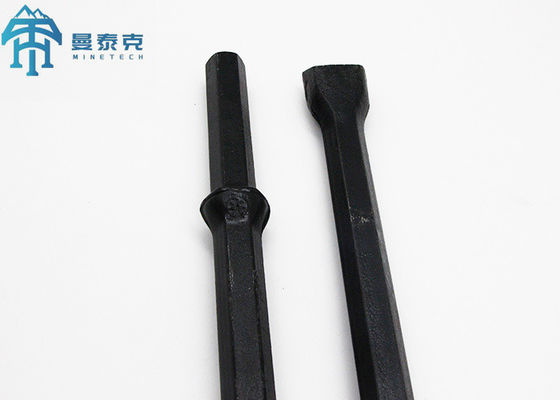

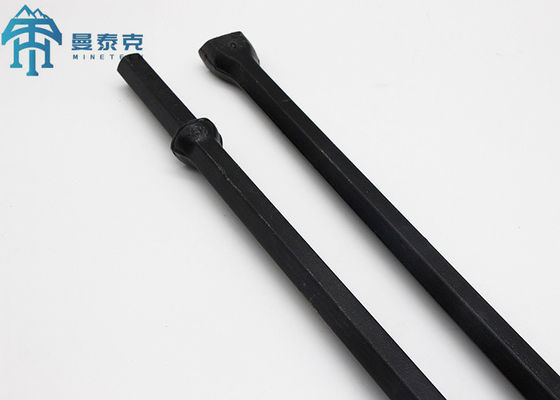

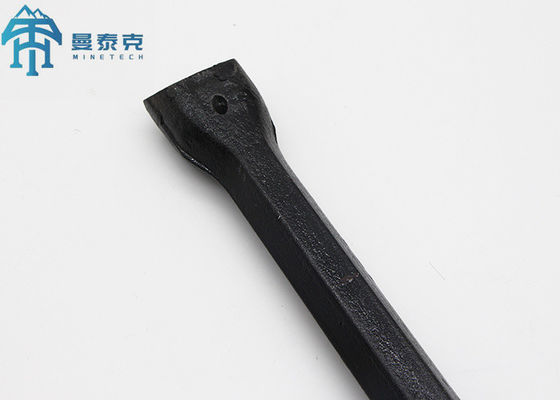

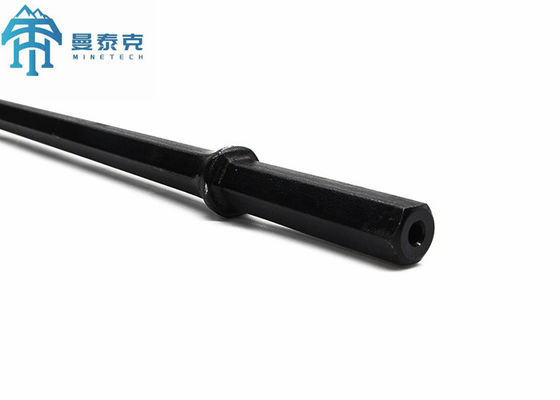

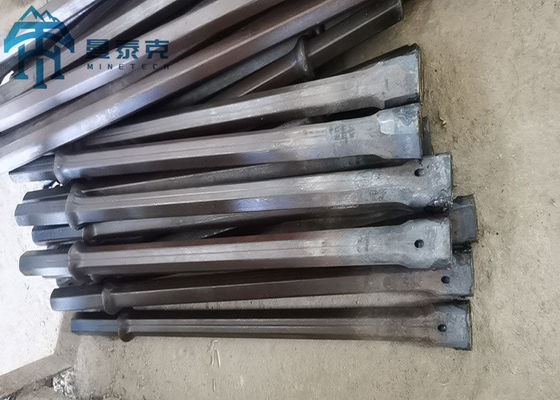

Product Images
