Small Hole Drilling Tools Chisel Drill Rod Tungsten Carbide

Small Hole Drilling Tools Chisel Drill Rod Tungsten Carbide
Small Hole Drilling Tools Chisel Drill Rod Tungsten Carbide Small Hole Drilling Tools Chisel Drill Rod Tungsten Carbide Small Hole Drilling Tools Chisel Drill Rod Tungsten Carbide Small Hole Drilling Tools Chisel Drill Rod Tungsten Carbide Small Hole Drilling Tools Chisel Drill Rod Tungsten Carbide

Large Image :  Small Hole Drilling Tools Chisel Drill Rod Tungsten Carbide

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: Integral Drill Rod
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 20000 piece per month
Contact Now

Small Hole Drilling Tools Chisel Drill Rod Tungsten Carbide

Description
Name: Integrall Drill Rod Use: Ore Mining,Rock Drilling,mining And Quarry
Processing Type: Forging Diameter: 23-42mm
Material: Carbon Steel,Carbide Machine Type: Drilling Tool,rock Drill
Usage: Small Hole Drilling,underground Mining,coal Mining And Geological Drilling,Rock Drilling Application: Stone,Quarry,Tunnel
Shank Style: H22*108mm Effective Length: 0.4-6.4m
Highlight:

small hole chisel drill rod

,

chisel drill rod tungsten carbide

,

small hole integral rod

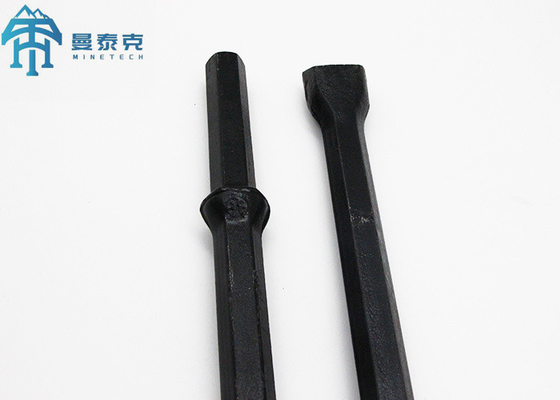

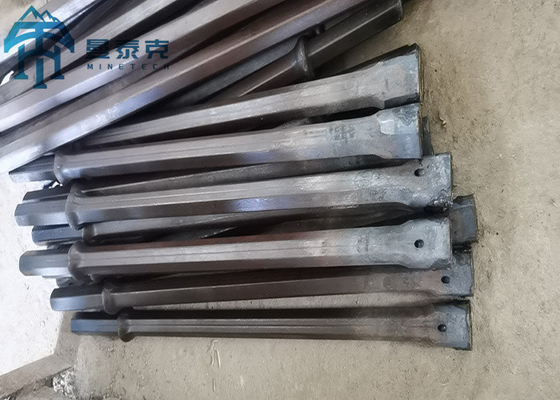

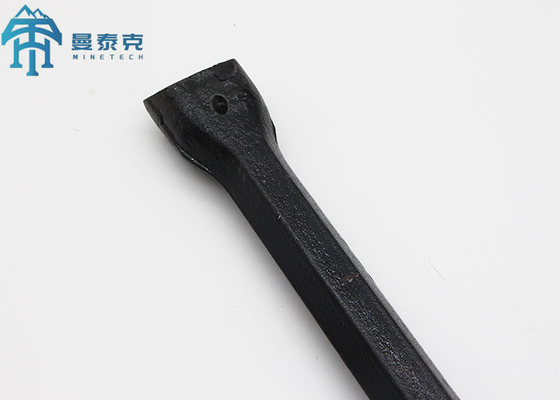

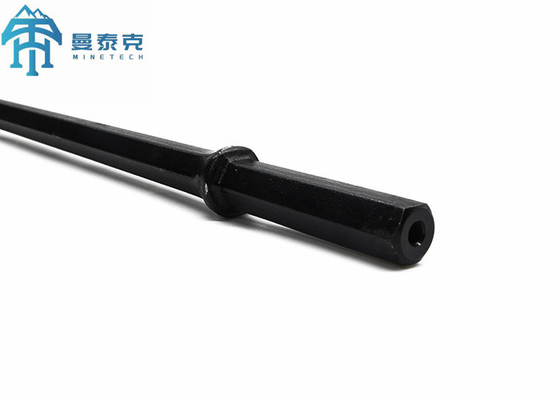

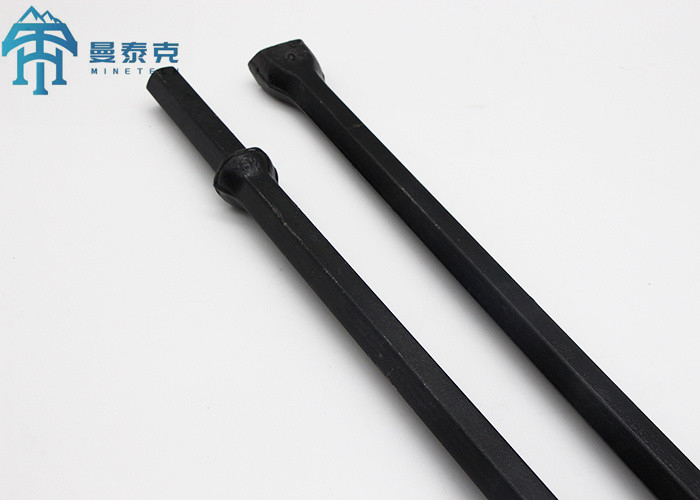

Small Hole Drilling Tools Tungsten Carbid Chisel Bit Integral Drill Rod



Product information:



Integral drill rod, another name called integral drill steels, integral rods are used by hand held rock drill in granite and marble quarries, underground mining, for small blasting hole drilling shank H22x108mm, H19x108mm, and standard hex. Bit diameters include 20-42mm,different lengths are available from 400mm to 6000mm usually.

It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 30mm to 41mm usually. Each rods use premium quality alloy steel and excellent quality tungsten carbide to assure.



Advantages:

Reliable Material And Long Service Life



Application:



Marble Quarry,diamond drilling,connected with rock drill and rock bit



Specification:



Shank Style Effective Length Head Diameter
mm foot/inch mm inch
Hex19 × 108mm 400 ~ 4,000 1’ 4” ~ 13’ 1” 23 ~ 35 27/32 ~ 1 3/8
Hex22 × 108mm 400 ~ 9,600 1’ 4” ~ 31’ 6” 26 ~ 41 1 1/32 ~ 1 39/64
Hex25 × 108mm 600 ~ 6,400 1’ 11 5/8” ~ 21’ 33 ~ 45 1 19/64 ~ 1 25/32
Hex25 ×159mm 800 ~ 6,400 2’ 7” ~ 21’ 35 ~ 42 1 3/8 ~ 1 21/32



Small Hole Drilling Tools Chisel Drill Rod Tungsten Carbide 0Small Hole Drilling Tools Chisel Drill Rod Tungsten Carbide 1Small Hole Drilling Tools Chisel Drill Rod Tungsten Carbide 2Small Hole Drilling Tools Chisel Drill Rod Tungsten Carbide 3Small Hole Drilling Tools Chisel Drill Rod Tungsten Carbide 4
