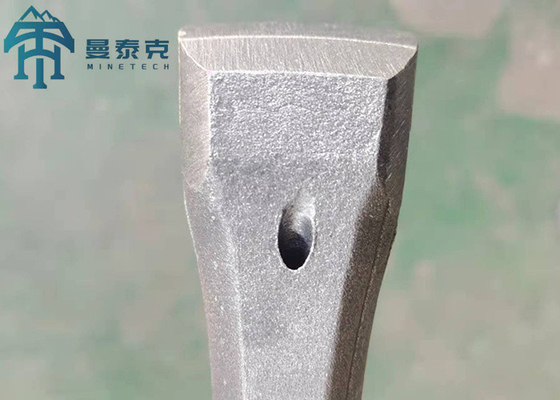

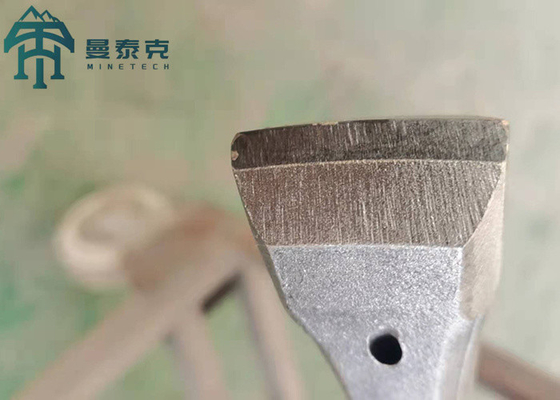

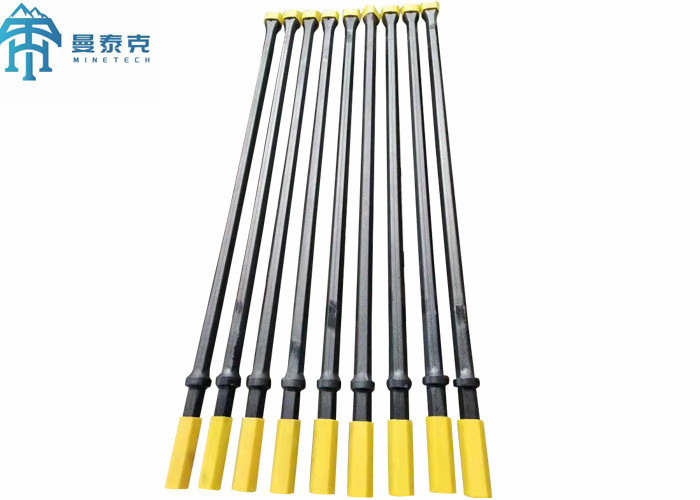

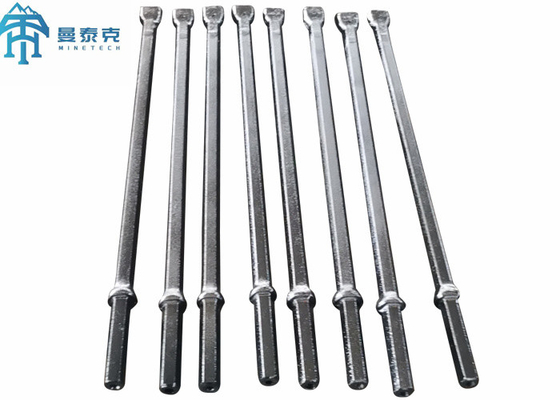

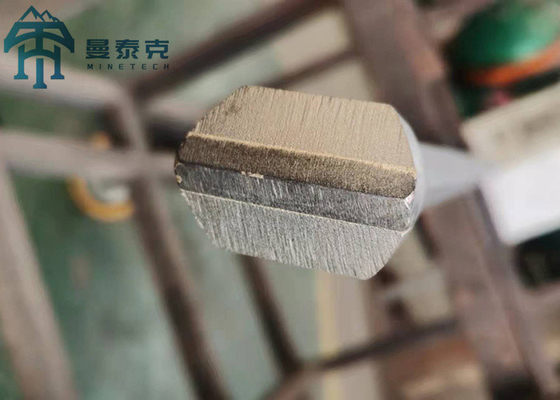

24mm Plug Hole Integral Drill Rod For Drilling Hard Rocks

24mm Plug Hole Integral Drill Rod For Drilling Hard Rocks
24mm Plug Hole Integral Drill Rod For Drilling Hard Rocks 24mm Plug Hole Integral Drill Rod For Drilling Hard Rocks 24mm Plug Hole Integral Drill Rod For Drilling Hard Rocks 24mm Plug Hole Integral Drill Rod For Drilling Hard Rocks 24mm Plug Hole Integral Drill Rod For Drilling Hard Rocks

Large Image :  24mm Plug Hole Integral Drill Rod For Drilling Hard Rocks

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: Integral Drill Rod
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: $3-$300
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 20000 piece per month
Contact Now

24mm Plug Hole Integral Drill Rod For Drilling Hard Rocks

Description
Name: Integrall Drill Rod Use: Ore Mining,Rock Drilling,mining And Quarry
Processing Type: Forging Head Diameter: 24mm-44mm
Material: 55SiMnMo Machine Type: Drilling Tool,rock Drill
Usage: Small Hole Drilling,underground Mining,coal Mining And Geological Drilling,Rock Drilling Application: Mining Quarry Drilling
Shank Style: H22*108mm Effective Length: 400m-6400m
Highlight:

plug hole integral drill rod

,

24mm integral drill rod

,

integral rod for drilling hard rocks

Plug Hole Integral Drill Rod for Drilling Hard Rocks



Product information:



Integral Drill Rod is used by a hand-held drill machine in Underground mining and for small hole drilling, equipped with small power rock drills, lik



air leg rock drills, hand held rock drills, etc. It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be



used for drilling bore hole diameter from 30mm to 41mm usually.



According to different application, different lengths are available from 400mm to 5000mm usually.



Regarding Integral drill steels,the quality of a steel material and a tungsten carbide is very important to get good drilling performance.



Advantages:

Reliable Material And Long Service Life



Application:



Marble Quarry,diamond drilling,connected with rock drill and rock bit



Specification:

24mm Plug Hole Integral Drill Rod For Drilling Hard Rocks 0



Shank Style Effective Length Head Diameter
mm foot/inch mm inch
Hex19 × 108mm 400 ~ 4,000 1’ 4” ~ 13’ 1” 23 ~ 35 27/32 ~ 1 3/8
Hex22 × 108mm 400 ~ 9,600 1’ 4” ~ 31’ 6” 26 ~ 41 1 1/32 ~ 1 39/64
Hex25 × 108mm 600 ~ 6,400 1’ 11 5/8” ~ 21’ 33 ~ 45 1 19/64 ~ 1 25/32
Hex25 ×159mm 800 ~ 6,400 2’ 7” ~ 21’ 35 ~ 42 1 3/8 ~ 1 21/32



24mm Plug Hole Integral Drill Rod For Drilling Hard Rocks 124mm Plug Hole Integral Drill Rod For Drilling Hard Rocks 224mm Plug Hole Integral Drill Rod For Drilling Hard Rocks 324mm Plug Hole Integral Drill Rod For Drilling Hard Rocks 4
