Low Air Pressure DTH Hammer with 90-100MM Diameter and 110-135mm Hole Range for Rock Drilling and Mining

Low Air Pressure DTH Hammer with 90-100MM Diameter and 110-135mm Hole Range for Rock Drilling and Mining
Low Air Pressure DTH Hammer with 90-100MM Diameter and 110-135mm Hole Range for Rock Drilling and Mining
Low Air Pressure DTH Hammer with 90-100MM Diameter and 110-135mm Hole Range for Rock Drilling and Mining Low Air Pressure DTH Hammer with 90-100MM Diameter and 110-135mm Hole Range for Rock Drilling and Mining Low Air Pressure DTH Hammer with 90-100MM Diameter and 110-135mm Hole Range for Rock Drilling and Mining Low Air Pressure DTH Hammer with 90-100MM Diameter and 110-135mm Hole Range for Rock Drilling and Mining Low Air Pressure DTH Hammer with 90-100MM Diameter and 110-135mm Hole Range for Rock Drilling and Mining Low Air Pressure DTH Hammer with 90-100MM Diameter and 110-135mm Hole Range for Rock Drilling and Mining

Large Image :  Low Air Pressure DTH Hammer with 90-100MM Diameter and 110-135mm Hole Range for Rock Drilling and Mining

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO9001
Model Number: COP44 / DHD 340 / QL 40
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: $3-$300
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 10000 pieces per month
Contact Now

Low Air Pressure DTH Hammer with 90-100MM Diameter and 110-135mm Hole Range for Rock Drilling and Mining

Description
Product Name: DTH Hammer Diameter: 90-100MM
Air Pressure: 1.2-2.5Mpa Hole Range: 110-135mm
Use: Ore Mining,Well Drilling,DTH Drilling Material: Carbon Steel,Tungsten Carbide & Steel
Application: Rock Drilling,quarry,water Well Drilling,mining Or Welling Drilling Color: Blue,Gold,Red,black Or Customized
Thread: 2 3/8'' API REG Usage: Hole Drilling,oil,water Well,Underground Mining,ore
Weight: 55kg Package: Wooden Case
Highlight:

cir50 jack dth hammer

,

low air pessure dth hammer

,

borehole down the hole hammer

Borehole Pneumatic Jack DTH Hammer Low Air Pressure For CIR50 Jack Hammer
Product Overview

A low air pressure DTH (Down-The-Hole) hammer is a specialized drilling tool used in mining, construction, and exploration activities. DTH hammers are designed to drill boreholes in rock formations by using a hammering action to break and crush the rock.

The low air pressure DTH hammer operates on compressed air between 4-10 bar as the driving force. It uses lower air pressures compared to conventional high-pressure DTH hammers, utilizing a larger volume of air at lower pressure levels for efficient drilling operations.

Specifications
Model Length Thread Outer Dia Weight Bit Dia Working Pressure Air Consumption Bit Shank
CIR50 628mm F32*8 44mm 5kgs 50mm 4-10 bar 3-5 m³/min CIR50
CIR60 777mm F42*8 53mm 7.5kgs 60mm 4-10 bar 3-7 m³/min CIR60
CIR65 745mm F42*10 61mm 13kgs 65mm 4-10 bar 6-10 m³/min CIR65
CIR70 811mm F48*10 66mm 13.5kgs 76mm 4-10 bar 6-10 m³/min CIR70
CIR90 840mm F48*10 80mm 22kgs 90-120mm 5-10 bar 7-12 m³/min CIR90
CIR110 871mm API 2 3/8" Reg 98mm 33kgs 110-150mm 5-10 bar 7-12 m³/min CIR110
CIR130 890mm API 2 3/8" Reg 112mm 48.5kgs 130-175mm 5-10 bar 7-12 m³/min CIR130
CIR150 904mm F70*10 136mm 70kgs 150-200mm 5-10 bar 10-16 m³/min CIR15
Applications
  • Rock drilling
  • Quarry operations
  • Water well drilling
  • Mining operations
  • Construction blasting
  • Well drilling
Advantages
  • Longer operating life
  • Excellent anti-wear properties
  • Easy to operate
  • Stable and reliable performance
  • Smooth operation with high efficiency

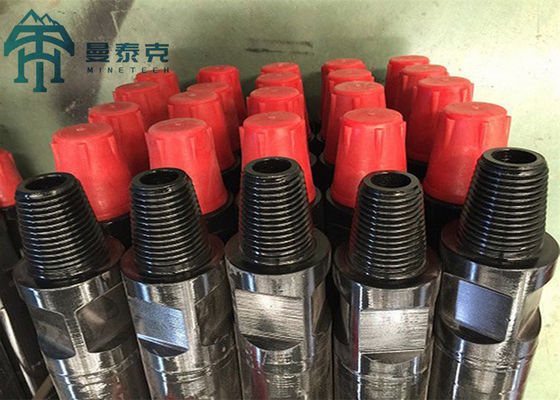

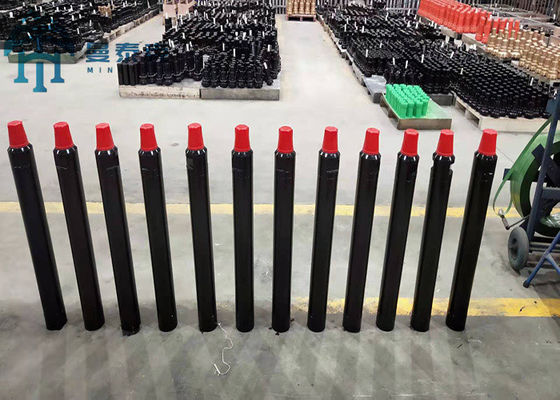

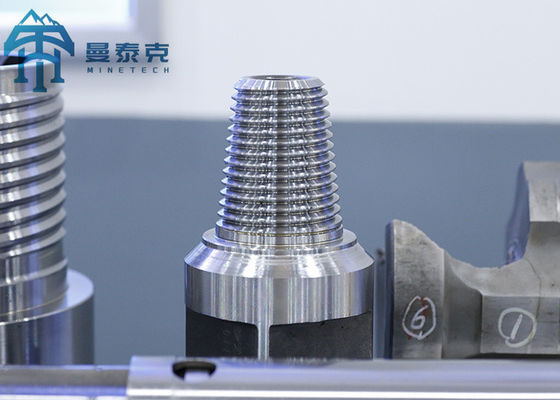

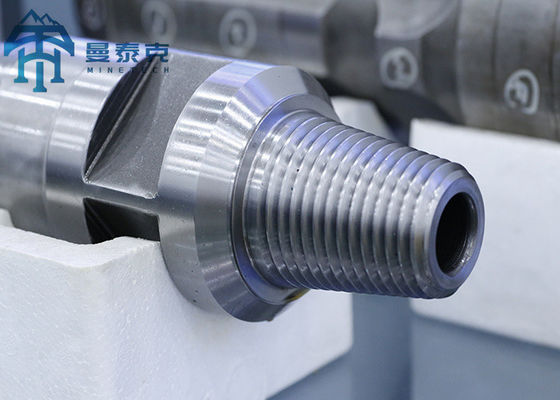

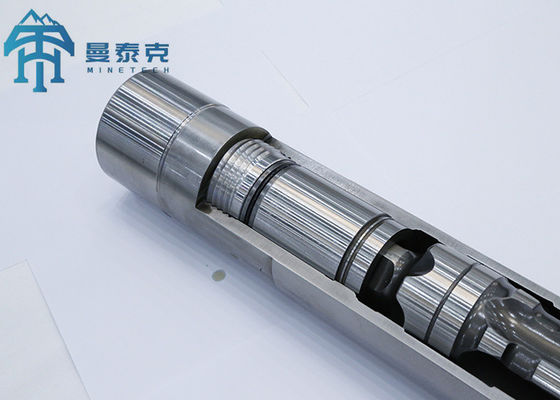

Product Images
Low Air Pressure DTH Hammer with 90-100MM Diameter and 110-135mm Hole Range for Rock Drilling and Mining 0 Low Air Pressure DTH Hammer with 90-100MM Diameter and 110-135mm Hole Range for Rock Drilling and Mining 1 Low Air Pressure DTH Hammer with 90-100MM Diameter and 110-135mm Hole Range for Rock Drilling and Mining 2 Low Air Pressure DTH Hammer with 90-100MM Diameter and 110-135mm Hole Range for Rock Drilling and Mining 3
