4" 5" 6" 8" Dth Hammer Bit Rock Mining Button Drilling Rig Tools forging

Large Image : 4" 5" 6" 8" Dth Hammer Bit Rock Mining Button Drilling Rig Tools forging

Product Details:

Place of Origin:	CHINA
Brand Name:	MTH
Certification:	ISO9001
Model Number:	115mm

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	Negotiable

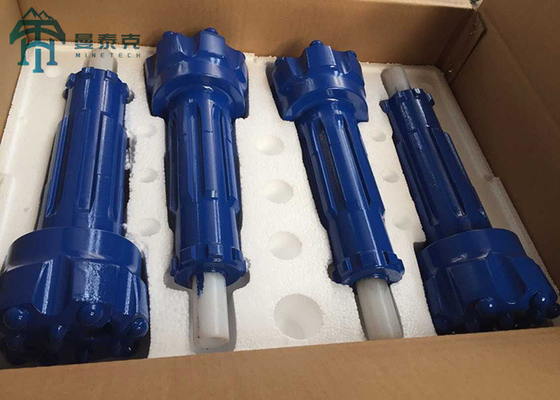

Packaging Details:	wooden case
Delivery Time:	10-15 days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	10000 pieces per month

Contact Now

4" 5" 6" 8" Dth Hammer Bit Rock Mining Button Drilling Rig Tools forging

Description

Processing Type:	Forging	Bit Shank Length:	165mm
Color:	Black, Blue, Red Or Customized	Shank:	SD DHD MISSION QL COP
Diameter:	115mm-240mm	Type:	Drill Bit,low Air Pressure Dth Hammer,Carbide Bit
Material:	Carbide,High Manganese Steel,Tungsten Carbide & Steel	Machine Type:	Drilling Tool
Hardness:	HRC58 - HRC63	Packing:	Wooden Case
Certification:	ISO9001	Usage:	Water Well Drilling
Highlight:	4" dth hammer bit , forging dth hammer bit , 4" dth hammer drill bits

4" 5" 6" 8" DTH Hammer Drill Bit Rock Mining Button Drilling Rig Tools

Product Information:

This high air pressure DTH hammer work with footvalve is designed and developed by our own, which is the one of the most advanced DTH hammer in the world.

1. 10 years manufacturing experience 2. Certificate: ISO9001:2015 3. Material: Carbide It has the following advantages: 1. Simple design of the Piston, Long life span.

2. More efficient energy transfer, faster drilling speed

3. lower air consumption and lower oil consumption.

4. Fewer internal parts, simple structure, less failure and easier to maintain because all the parts are heat treated.

Applications:

Rock Drilling,Mining,Construction,quarry,Water Well drilling

Advantages:

The equipment is designed to give optimal hole quality, reliability, and long service life, as well as the best blasting results and low total operation cost.

Specification:

Bit size	Shank type	Recommended DTH dir diameter
3.5''/3'' DTH Hammer bits	COP34, DHD3.5, MISSION30, BR3 shank	90mm to 105mm
4'' DTH Hammer bits	DHD340, QL40, MISSION40, SD4 shank	110mm to 130mm
5'' DTH Hammer bits	DHD350, QL50, MISSION50, SD5 shank	134mm tio 152mm
6'' DTH Hammer bits	DHD360, QL60, MISSION60, SD6 shank	152mm to 203mm
8'' DTH Hammer bits	DHD380, QL80, MISSION80, SD8 shank	203mm to 305mm
12'' DTH Hammer bits	DHD112, SD12 and QL120 shank	Available upon to customers' request

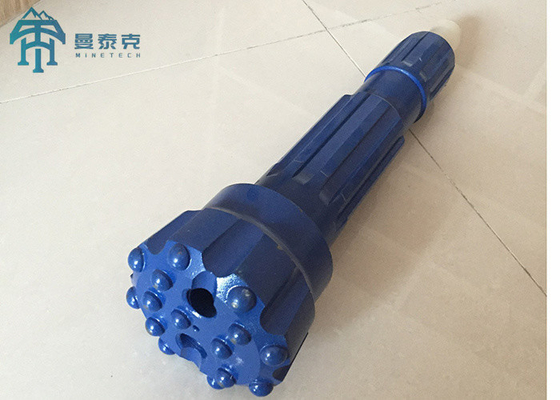

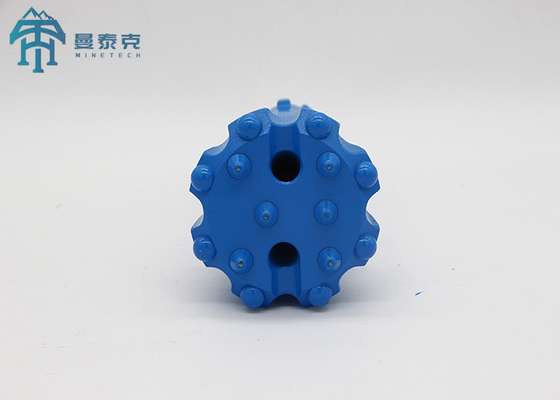

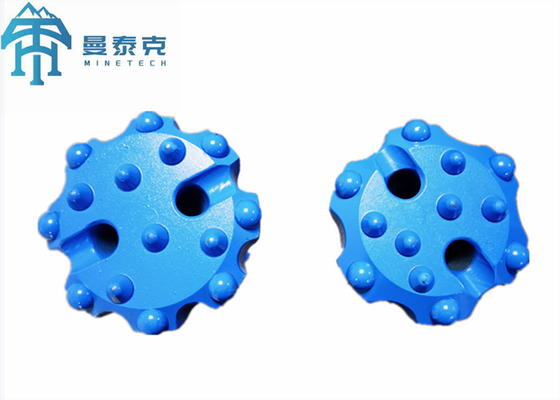

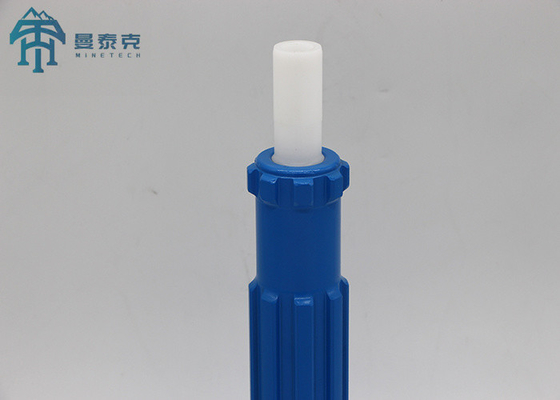

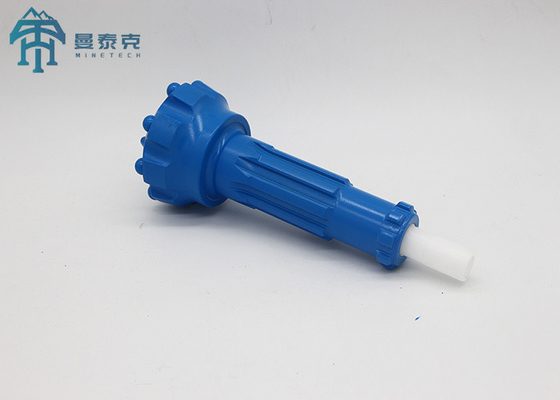

4" 5" 6" 8" Dth Hammer Bit Rock Mining Button Drilling Rig Tools forging 0

4" 5" 6" 8" Dth Hammer Bit Rock Mining Button Drilling Rig Tools forging 1

4" 5" 6" 8" Dth Hammer Bit Rock Mining Button Drilling Rig Tools forging 2

4" 5" 6" 8" Dth Hammer Bit Rock Mining Button Drilling Rig Tools forging 4
