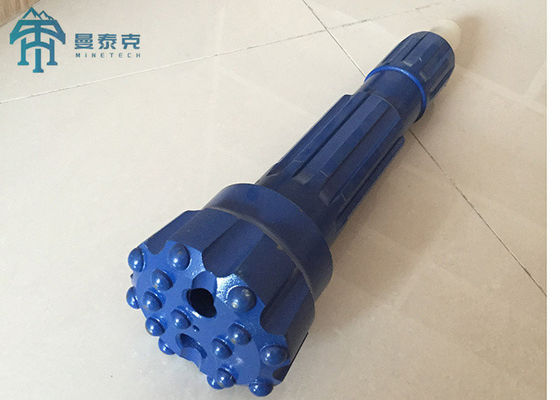

4" 5" 6" 8" DTH Hammer Bit with HRC58 - HRC63 Hardness and High Manganese Steel for Rock Drilling

Large Image : 4" 5" 6" 8" DTH Hammer Bit with HRC58 - HRC63 Hardness and High Manganese Steel for Rock Drilling

Product Details:

Place of Origin:	CHINA
Brand Name:	MTH
Certification:	ISO9001
Model Number:	115mm

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	$3-$300
Packaging Details:	wooden case
Delivery Time:	10-15 days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	10000 pieces per month

Contact Now

4" 5" 6" 8" DTH Hammer Bit with HRC58 - HRC63 Hardness and High Manganese Steel for Rock Drilling

Description

Processing Type:	Forging	Bit Shank Length:	165mm
Color:	Black, Blue, Red Or Customized	Shank:	SD DHD MISSION QL COP
Diameter:	115mm-240mm	Type:	Drill Bit,low Air Pressure Dth Hammer,Carbide Bit
Material:	Carbide,High Manganese Steel,Tungsten Carbide & Steel	Machine Type:	Drilling Tool
Hardness:	HRC58 - HRC63	Packing:	Wooden Case
Certification:	ISO9001	Usage:	Water Well Drilling
Highlight:	4" dth hammer bit , forging dth hammer bit , 4" dth hammer drill bits

4" 5" 6" 8" DTH Hammer Bit Rock Mining Button Drilling Rig Tools Forging

This high air pressure DTH hammer with footvalve is designed and developed by our company, representing one of the most advanced DTH hammers available worldwide.

Key Features

10 years manufacturing experience with ISO9001:2015 certification
Constructed from high-quality carbide material
Simple piston design for extended lifespan
Efficient energy transfer for faster drilling speeds
Reduced air and oil consumption
Minimal internal parts with heat-treated components for easy maintenance

Applications

Rock drilling, mining, construction, quarry operations, and water well drilling.

Performance Advantages

Engineered to deliver optimal hole quality, exceptional reliability, and extended service life while ensuring superior blasting results and low total operational costs.

Technical Specifications

Bit Size	Shank Type	Recommended DTH Drill Diameter
3.5"/3" DTH Hammer bits	COP34, DHD3.5, MISSION30, BR3 shank	90mm to 105mm
4" DTH Hammer bits	DHD340, QL40, MISSION40, SD4 shank	110mm to 130mm
5" DTH Hammer bits	DHD350, QL50, MISSION50, SD5 shank	134mm to 152mm
6" DTH Hammer bits	DHD360, QL60, MISSION60, SD6 shank	152mm to 203mm
8" DTH Hammer bits	DHD380, QL80, MISSION80, SD8 shank	203mm to 305mm
12" DTH Hammer bits	DHD112, SD12 and QL120 shank	Available upon customer request

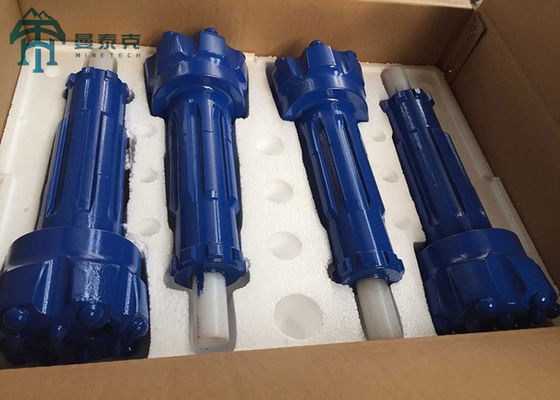

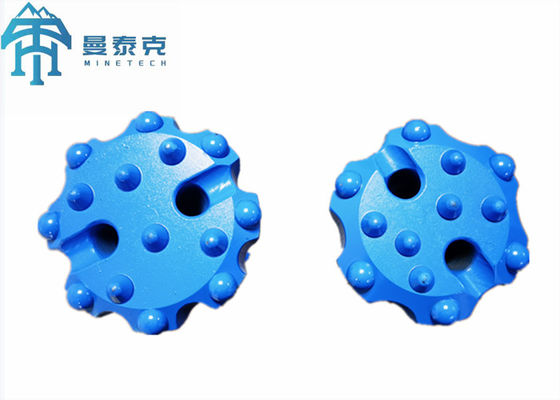

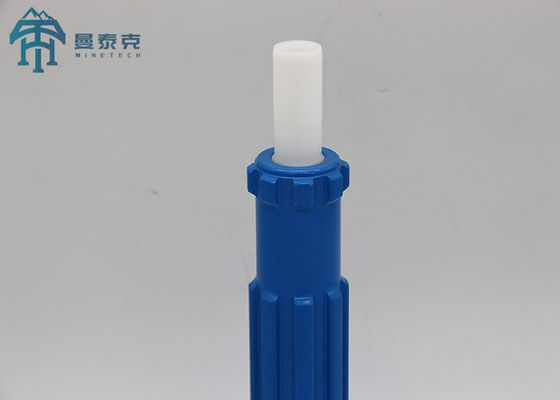

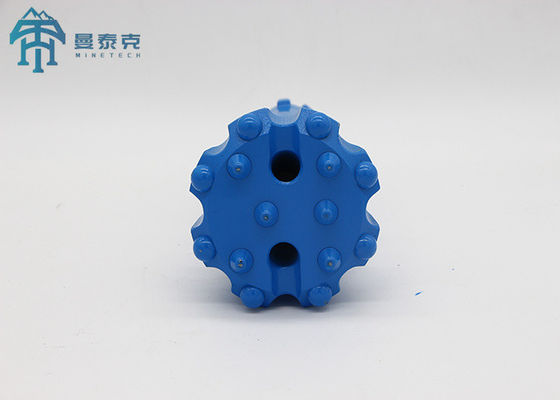

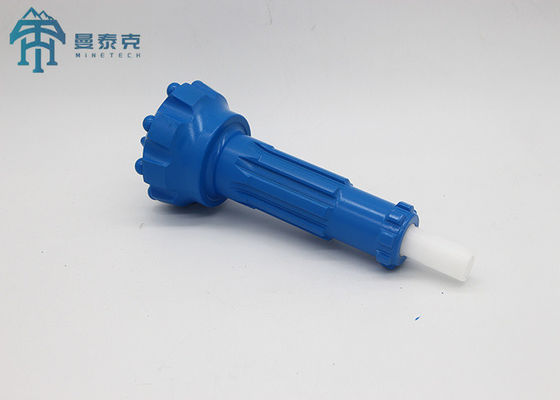

Product Images
