High Strength R25 Thread Button Bit Alloy Steel Tungsten Carbide
Product Overview

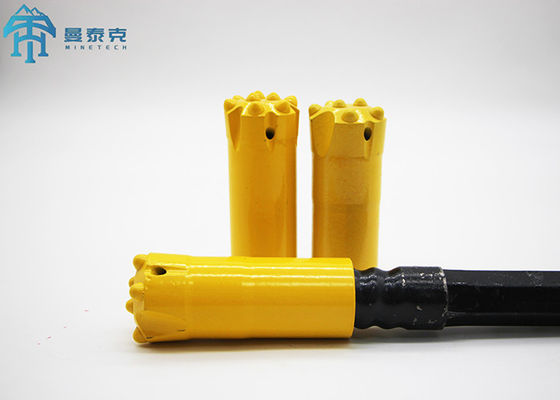

The Thread Button Drill Bit is engineered from tungsten carbide and high-strength alloy steel, featuring a button head design with various thread types including R25, R28, SSR28, R32, SSR32, R35, SR35, R38, T38, T45, T51, ST58, ST68, and SGT60. Available in spherical, ballistic, or conical button shapes, this drill bit delivers exceptional performance in demanding drilling applications.
Key Features
- High durability and extended service life
- Superior penetration rates and wear resistance
- Low breakage rate with strong impact resistance
- Excellent high temperature and corrosion resistance
- Optimized design for improved drilling speed and cost efficiency
Technical Specifications
| Parameter |
Value |
| Skirt |
Normal Body |
| Brand |
MTH |
| Treatment |
CNC Milling And Proprietary Heat Treatment Process |
| Package |
Box |
| Application |
Mining, Quarrying, Drifting And Tunneling, Shaft Drilling |
| Thread Type |
R25, R28, SSR28, R32, SSR32, R35, SR35, R38, T38, T45, T51, ST58, ST68, SGT60 |
| Material |
Tungsten Carbide And High Strength Alloy Steel |
| Head Type |
Button Head |
| Diameter |
33 - 127mm |
| Face type |
Flat Face, Drop Center, Uni-face |
Applications
Ideal for mining operations including coal, iron ore, and gold extraction, as well as roadways, tunnels, quarrying, water conservancy projects, and municipal construction. Suitable for medium to hard rock formations in both dry and wet rock drilling conditions.
Customization Options
MTH offers customized Thread Button Bits with ISO9001 certification, available in sizes ranging from 33-127mm with various face types including Flat Face, Drop Center, and Uni-face. Each bit undergoes CNC Milling and Proprietary Heat Treatment for guaranteed quality.
Support & Services
Comprehensive technical support and services are available to assist customers with any operational challenges.
Packaging & Shipping
Products are securely packaged in protective cardboard boxes. Shipping costs are calculated based on package weight and destination.
Frequently Asked Questions
Q1: What is Thread Button Bit?
A1: A high-performance mining tool manufactured by ISO9001-certified MTH, designed for mining, tunneling, and various drilling applications.
Q2: Where is the Thread Button Bit made?
A2: Manufactured in China with strict quality control standards.
Q3: What is the minimum order quantity?
A3: Minimum order quantity is 5 pieces.
Q4: How is the product packaged?
A4: Packaged in secure boxes or cases for optimal protection during transit.
Q5: What payment methods are accepted?
A5: We accept T/T or Western Union payments.
