YN27C Pneumatic Rock Drill Jack Hammer with 32MM Drilling Hole Diameter 5m Depth and 27kg Weight

YN27C Pneumatic Rock Drill Jack Hammer with 32MM Drilling Hole Diameter 5m Depth and 27kg Weight
YN27C Pneumatic Rock Drill Jack Hammer with 32MM Drilling Hole Diameter 5m Depth and 27kg Weight
YN27C Pneumatic Rock Drill Jack Hammer with 32MM Drilling Hole Diameter 5m Depth and 27kg Weight YN27C Pneumatic Rock Drill Jack Hammer with 32MM Drilling Hole Diameter 5m Depth and 27kg Weight YN27C Pneumatic Rock Drill Jack Hammer with 32MM Drilling Hole Diameter 5m Depth and 27kg Weight YN27C Pneumatic Rock Drill Jack Hammer with 32MM Drilling Hole Diameter 5m Depth and 27kg Weight

Large Image :  YN27C Pneumatic Rock Drill Jack Hammer with 32MM Drilling Hole Diameter 5m Depth and 27kg Weight

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: YN27C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $3-$300
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: Western Union,T/T,MoneyGram
Supply Ability: 1000 pieces per month
Contact Now

YN27C Pneumatic Rock Drill Jack Hammer with 32MM Drilling Hole Diameter 5m Depth and 27kg Weight

Description
Product Name: Pneumatic Rock Drill Model No: YN27C
Drilling Hole Diameter: 32MM Drilling Depth: 5m
Weight: 39kgs Size: 760*360*270mm
Color: Yellow Or Customized Usage: Ore,mining Used,Rock Drilling
Package: Wooden Box Power Type: Pneumatic,Air Compressor And Electric
Highlight:

Breaking Works Rock Drilling Machine

,

YN27C Rock Drilling Machine

,

Pionjar 120 Rock Drilling Machine

YN27C Pneumatic Rock Drilling Machine Pionjar 120 Jack Hammer For Breaking Works

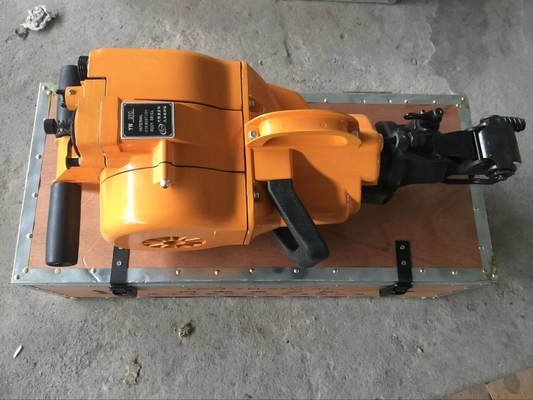

The YN27C gasoline rock drill is a powerful, portable machine powered by a gasoline engine, eliminating the need for an air compressor. Its compact design features minimal vulnerable components and simple operation, making it ideal for locations without water or electrical power. This versatile tool combines drilling, breaking, and tamping capabilities in one robust package.
Key Specifications
Model YN27C
Engine Displacement 185 cm³
Engine Rotation Speed 2450r/min
Idle Speed 200 r/min
Drill Rod Size 22×108mm
Hole Diameter Range 26-46mm
Fuel Tank Capacity 1.14L
Drilling Speed ≥250mm/min
Oil Consumption Rate 0.12L/m
Fuel Mixture Ratio 9:1 (Gasoline:Lubricating Oil)
Spark Plug Clearance 0.5-0.7mm
Impact Energy ≥20 J
Weight 27kg
Dimensions 760×330×230mm
Product Advantages
  • Versatile functionality including drilling, splitting, crushing, ramming, and shoveling
  • Capable of drilling in multiple orientations: vertical down, horizontal, and angles up to 45°
  • Maximum drilling depth of 6 meters
  • Operates in extreme temperatures from -40°C to +40°C
  • Ideal for mining, road construction, quarrying, and defense engineering applications
  • Compact, portable design suitable for remote locations without infrastructure
YN27C Pneumatic Rock Drill Jack Hammer with 32MM Drilling Hole Diameter 5m Depth and 27kg Weight 0 YN27C Pneumatic Rock Drill Jack Hammer with 32MM Drilling Hole Diameter 5m Depth and 27kg Weight 1 YN27C Pneumatic Rock Drill Jack Hammer with 32MM Drilling Hole Diameter 5m Depth and 27kg Weight 2 YN27C Pneumatic Rock Drill Jack Hammer with 32MM Drilling Hole Diameter 5m Depth and 27kg Weight 3
Manufacturer Information
Hebei Minetech Machinery Technology Co., Ltd specializes in manufacturing high-quality rock drilling tools, including drilling machines, button bits, and drilling rods. Based in Shijiazhuang, China, we are committed to providing complete rock drilling solutions through competitive pricing, strict quality control, and reliable delivery. Our professional team ensures total customer satisfaction with superior products and service.
