YN27C Pneumatic Rock Drilling Machine Pionjar 120 Jack Hammer For Breaking Works

YN27C Pneumatic Rock Drilling Machine Pionjar 120 Jack Hammer For Breaking Works
YN27C Pneumatic Rock Drilling Machine Pionjar 120 Jack Hammer For Breaking Works
YN27C Pneumatic Rock Drilling Machine Pionjar 120 Jack Hammer For Breaking Works YN27C Pneumatic Rock Drilling Machine Pionjar 120 Jack Hammer For Breaking Works YN27C Pneumatic Rock Drilling Machine Pionjar 120 Jack Hammer For Breaking Works YN27C Pneumatic Rock Drilling Machine Pionjar 120 Jack Hammer For Breaking Works

Large Image :  YN27C Pneumatic Rock Drilling Machine Pionjar 120 Jack Hammer For Breaking Works

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: YN27C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 1000 pieces per month
Contact Now

YN27C Pneumatic Rock Drilling Machine Pionjar 120 Jack Hammer For Breaking Works

Description
Product Name: Pneumatic Rock Drill Model No: YN27C
Drilling Hole Diameter: 32MM Drilling Depth: 5m
Weight: 39kgs Size: 760*360*270mm
Color: Yellow Or Customized Usage: Ore,mining Used,Rock Drilling
Package: Wooden Box Power Type: Pneumatic,Air Compressor And Electric
Highlight:

Breaking Works Rock Drilling Machine

,

YN27C Rock Drilling Machine

,

Pionjar 120 Rock Drilling Machine

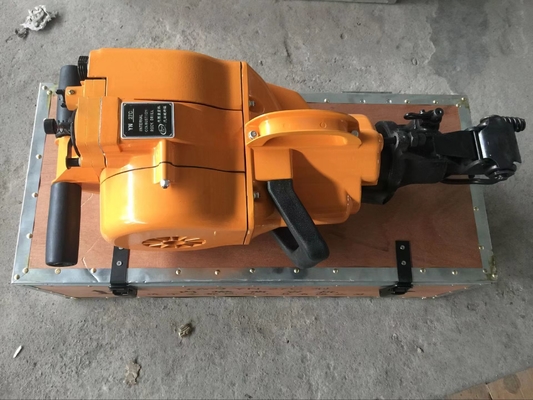

YN27C Pneumatic Rock Drilling Machine Pionjar 120 Jack hammer for Breaking Works


Description:


YN27C gasoline rock drills or petrol driven rock drill machine is powered by gasoline engine, without using air compressor, a very efficient machine with the characters that the structure is very compact, less of the-easy-to-damage-parts, and very easy to control. It can adapt to these outside situations there is no water and no electronic power. It is a kind hand held drill built up with gasoline engine, air pump, rock drill and the rotation plum bum equipment for running or stop. It can be used as a tool for breaking, percussive drilling, tamping besides rock.

Specification:



Model
YN27C
Displacement of engine
185 cm³
Rotation speed of engine
2450r/min
Idle speed
200 r/min
End of drill rod size
22×108mm
Hole diameter range
26-46mm
Max drilling depth
Max depth
Fuel tank capacity
1.14L
Drilling speed
≥250mm/min
Oil consumption rate
0.12L/m

The mixture of gasoline and lubricating oil
9:1
Clearance of spark plug
0.5-0.7mm
Impact energy
≥20 J
Weight
27kg
Dimension
760*330*230mm


Advantage:


Handheld YN27C internal combustion rock drill Save time and effort and chisel fast

YN27C internal combustion rock drill has the functions of drilling, splitting, crushing, ramming, shoveling and so on. It can drill holesin rock vertically down, horizontally down to less than 45° and vertically down to the deepest 6 meters. YN27C is widely used in mining, road construction, quarrying, national defense engineering, etc.
YN27 hand-held internal combustion rock drill whether in high mountains or flat land; It can be operated in hot +40°C or cold -40°C. This machine has a wide range of ad
aptability.


Company Profile:



Hebei Minetech Machinery Technology Co., Ltd is located in Shijiazhuang city, Hebei province. Minetech is specialized in producing and exporting rock drilling tools. We manufacture rock drilling tools, including drilling machine, button bits and drilling rods.

Minetech treasure each opportunity in cooperating with our customers. Minetech's sales team will allways stick to our original beliefs to offer all customers the best service and have been accomplishing total customer satisfaction by competitive prices, superior production control, strict quality assurance and punctural delivery.

With our rich experience for years and professional engineers, Minetech focus on providing complete solutions for your rock drilling tools.



YN27C Pneumatic Rock Drilling Machine Pionjar 120 Jack Hammer For Breaking Works 0YN27C Pneumatic Rock Drilling Machine Pionjar 120 Jack Hammer For Breaking Works 1YN27C Pneumatic Rock Drilling Machine Pionjar 120 Jack Hammer For Breaking Works 2YN27C Pneumatic Rock Drilling Machine Pionjar 120 Jack Hammer For Breaking Works 3
