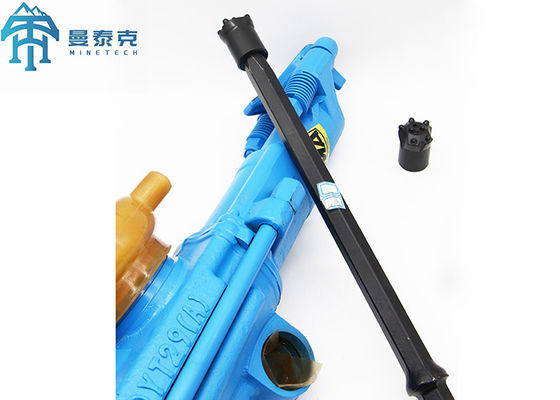

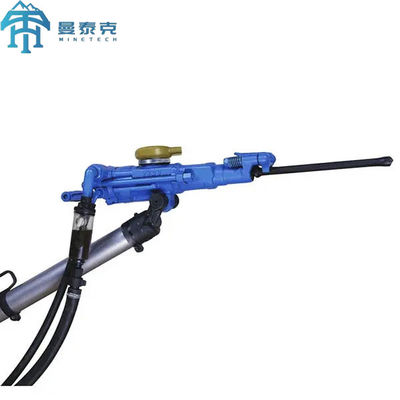

YT 29A Pneumatic Rock Drill with Impact Frequency ≥39Hz, 13mm Water Pipe, and 25mm Air Pipe for Efficient Drilling

YT 29A Pneumatic Rock Drill with Impact Frequency ≥39Hz, 13mm Water Pipe, and 25mm Air Pipe for Efficient Drilling
YT 29A Pneumatic Rock Drill with Impact Frequency ≥39Hz, 13mm Water Pipe, and 25mm Air Pipe for Efficient Drilling
YT 29A Pneumatic Rock Drill with Impact Frequency ≥39Hz, 13mm Water Pipe, and 25mm Air Pipe for Efficient Drilling YT 29A Pneumatic Rock Drill with Impact Frequency ≥39Hz, 13mm Water Pipe, and 25mm Air Pipe for Efficient Drilling YT 29A Pneumatic Rock Drill with Impact Frequency ≥39Hz, 13mm Water Pipe, and 25mm Air Pipe for Efficient Drilling

Large Image :  YT 29A Pneumatic Rock Drill with Impact Frequency ≥39Hz, 13mm Water Pipe, and 25mm Air Pipe for Efficient Drilling

Product Details:
Place of Origin: China
Brand Name: MTH
Certification: IOS9001
Model Number: YT29A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $3-$300
Packaging Details: Wooden case
Delivery Time: Within 2 weeks
Payment Terms: T/T
Supply Ability: 1000/month
Contact Now

YT 29A Pneumatic Rock Drill with Impact Frequency ≥39Hz, 13mm Water Pipe, and 25mm Air Pipe for Efficient Drilling

Description
Air Pressure: 0.4—0.63MPa Shank Dimensions(hex×length): 22×108 Mm±108mm
Condition: New Machine Type: Drilling Tools
Water Pipe (inner Dia): 13mm Impact Frequency: ≥39Hz(0.63MPa)
Weight: 27kg Air Pipe (inner Dia): 25mm
Highlight:

0.63MPa Rock Drilling Tool

,

Pneumatic Rock Drilling Tool

,

27kg Rock Drilling Tool

YT 29A 27kg New Pneumatic Rock Drilling Tool With 0.4-0.63MPa Air Pressure
Product Overview

The YT 29A is a high-efficiency heavy-duty pneumatic rock drill designed for blasting holes and drilling projects in quarries, railway construction, water conservancy projects, and defense facilities. This 27kg machine operates with 0.4-0.63MPa air pressure and is suitable for drilling level or gradient holes in medium-hard to hard rock (f=8-18) with depths of 5-8 meters.

Compatible with FT160A or FT160C air-leg systems, it can also be mounted on drilling vehicles or shelves. The integrated FY250 oil lubrication system ensures optimal performance and longevity.

Key Features
  • Product Name: Rock Drilling Machine
  • Operating Air Pressure: 0.4-0.63MPa
  • Water Pipe (Inner Diameter): 13mm
  • Cylinder Diameter: 82mm
  • Condition: Factory New
  • Weight: 27kg
YT 29A Pneumatic Rock Drill with Impact Frequency ≥39Hz, 13mm Water Pipe, and 25mm Air Pipe for Efficient Drilling 0 YT 29A Pneumatic Rock Drill with Impact Frequency ≥39Hz, 13mm Water Pipe, and 25mm Air Pipe for Efficient Drilling 1
Technical Specifications
Parameter Value
Product Name Rock Drilling Machine
Machine Type Drilling Tools
Power Type Pneumatic (Air Compressor)
Air Pipe (Inner Diameter) 25mm
Air Pressure 0.4-0.63MPa
Cylinder Diameter 82mm
Air Consumption ≤88 L/S (0.63MPa)
Water Pipe (Inner Diameter) 13mm
Condition New
Impact Frequency ≥39Hz (0.63MPa)
Warranty 1 Year
Applications

With an impact frequency of ≥39Hz (0.63MPa), this rock drilling machine excels in surface mining, quarrying, and construction applications. Its robust design handles tough drilling jobs including:

  • Blasting hole preparation
  • Anchor bolt installation
  • Pipeline and utility hole drilling
  • Underground construction projects

The 13mm water pipe enables effective operation in wet conditions, while the 1-year warranty guarantees reliable performance in demanding environments.

Support & Services

Our comprehensive technical support includes:

  • 24/7 technical assistance via phone or email
  • On-site support for installation and maintenance
  • Remote monitoring and diagnostics
  • Operator and maintenance training
  • Regular software updates
  • Full warranty and post-warranty support

Our expert technicians ensure your equipment maintains peak performance throughout its service life.

YT 29A Pneumatic Rock Drill with Impact Frequency ≥39Hz, 13mm Water Pipe, and 25mm Air Pipe for Efficient Drilling 2

Tag:

661mm Rock Drilling Machine,

FT160B pneumatic breaker hammer,

air leg pneumatic breaker hammer
