Product Description:

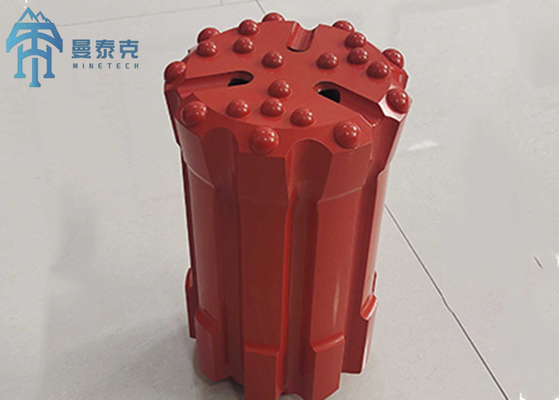

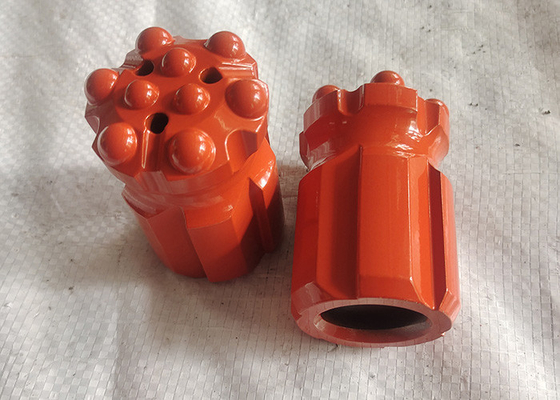

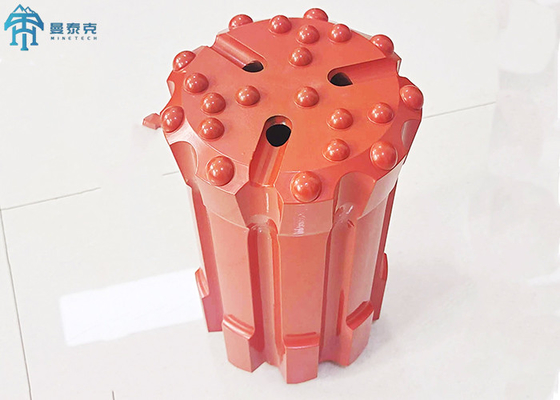

Minetech offers rock drill bits: GT60 Threaded Button Bits are one of the most important size for benching. GT60 rock drill bits are used in Pantera DP1500i heavy duty top hammer focusing big and long hole drilling for bench and surface mining.
Retrac button bits are primarily utilized in areas where the rock mass is loose and relatively fragmented. This type of rock is typically associated with mining and construction works. One of the main advantages of retrac button bits is their unique skirt design, which helps in pulling out the drill tool and reducing instances of bit entrapment and burial. Additionally, the design promotes straighter boreholes.
The use of retrac button bits is especially vital in situations where the borehole needs to remain straight and true. Inaccurate drilling can cause costly disruptions such as hole deviation, where the borehole departs from its intended path. The addition of a retrac skirt design ensures the bit can be retrieved efficiently, reducing the risk of damage and allowing for better control of the drilling process.
Retrac button bits are also commonly used in geotechnical drill work, where the stability of the hole is a significant concern. The skirt design minimizes the amount of debris that enters the borehole, thereby reducing the risk of collapse or blockage. This ensures a safer and more efficient drilling process.
Features:
• Alloy buttons are hot mounted into the drill bit, ensuring the bit good accuracy and durability;
• Reliability ensured by premium drill bit materials and premium alloy button;
• Different types designed for different drilling scenarios and rock conditions;
• High speed and drilling efficiency;
• Cost-effective, good performance with reasonable price.
Technical Parameters:
| Processing Type |
Forging |
| Diameter |
127mm |
| Material |
Carbide |
| Certification |
ISO9001 |
| Thread |
GT60 |
| Item No. |
GT60-127 |
| Color |
Blue, Yellow, Black Or Others |
| Packing |
Wooden Case |
| Application |
Quarry/Mining/Tunneling |
| Name |
Retract Button Bit |
| Pantera Consumables for DP1500i |
| ROD |
DS-ROD M/F 4.3 MTR RG60-60R- 4 |
| 140mm Bit |
DS - RETRAC BIT- GT60- 140MM- |
| 127mm Bit - S48 (Pref) |
DS - GT60 127MM RETRAC BIT- |
| 127mm Bit - S55 |
127MM BIT - S55 |
| 115mm Bit - S48 (Pref) |
DS-BIT RETRAC 115MM RG60- BUTT |
| 115mm Bit - S55 |
DS - BIT - GT60 X 115MM RETRAC |
| 102mm Bit - S48 (Pref) |
RETRAC BIT GT60 102MM |
| 102mm Bit - S55 |
BIT - 102MM - S55 |
| |
BIT STANDARD SUB |
| SHANK |
DS-ADAPTER; SHANK; GT60 X HL1560 |
Applications:
The retractable button bit is suitable for drilling through various materials, including hard rocks, soil, and clay. It is ideal for mining exploration, construction, and geological explorations. The product is designed to withstand harsh and demanding conditions, making it perfect for drilling in remote locations and rough terrains.
The retractable button bit is suitable for various occasions and scenarios, including mining exploration, construction, and geological explorations. It is perfect for drilling through hard rocks, soil, and clay. The product is designed to withstand harsh and demanding conditions, making it perfect for drilling in remote locations and rough terrains. Drilling works for blasting duties in tunneling, construction, mining, quarrying, etc.
Packing and Shipping:
Product Packaging:
The Retract Button Bit product comes in a sturdy cardboard box with product details and branding printed on the exterior. Inside, the product is securely nestled in foam padding to prevent any damage during transportation.
Shipping:
International shipping rates may vary depending on the destination. All orders are processed within 3days and shipped via UPS or FedEx with a tracking number provided to the customer.
