Durable Carbide Steel Tapered Button Bits With Long Skirt Design
Product Description:

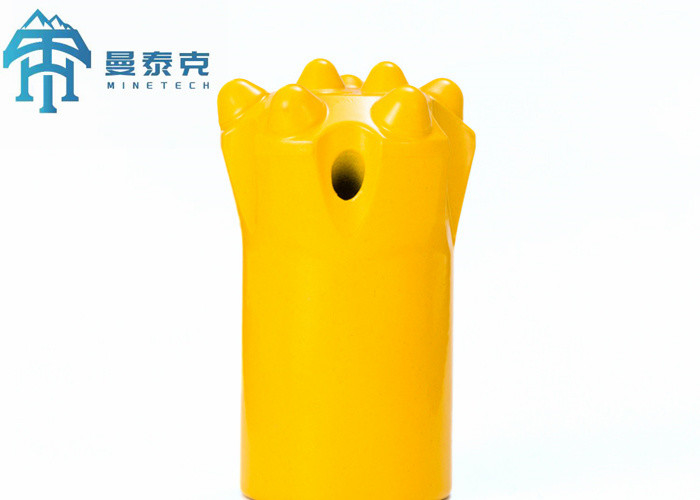

A tapered button bit, also referred to as a taper drill bit, is a versatile drilling tool extensively employed in mining, tunneling, and construction engineering. Its primary function is to drill holes in rocks during drilling and blasting operations, usually in tandem with handheld or mechanical rock drills.
The tapered button bit derives its name from its characteristic shape. It gradually, or tapers, from a thicker base to a thinner end, also known as its tip. The tip of the bit is studded with small spherical buttons that aid in the drilling process. These buttons are usually made of tungsten carbide, a durable and heat-resistant material.
The tapered button bit is available in various sizes and degrees of taper, depending on the specific drilling application. The bit's dimensions determine the hole diameter and depth that it can drill, as well as the amount of thrust required to operate the tool effectively.
Parameters:
|
Bit Diameter
|
Button Number
|
Angle
|
Height
|
|
mm
|
inch
|
°
|
mm
|
|
28
|
1 1/8''
|
4 - 6
|
7
|
11
|
12
|
50 - 65
|
|
30
|
1 3/16''
|
4 - 7
|
7
|
11
|
12
|
50 - 65
|
|
32
|
1 1/4''
|
4 - 8
|
7
|
11
|
12
|
50 - 65
|
|
34
|
1 11/32''
|
4 - 8
|
7
|
11
|
12
|
50 - 65
|
|
36
|
1 13/32''
|
4 - 8
|
7
|
11
|
12
|
50 - 65
|
|
38
|
1 1/2''
|
4 - 8
|
7
|
11
|
12
|
50 - 65
|
|
40
|
1 9/16''
|
4 - 8
|
7
|
11
|
12
|
50 - 65
|
|
41
|
1 5/8''
|
4 - 8
|
7
|
11
|
12
|
50 - 65
|
|
42
|
1 21/32''
|
4 - 8
|
7
|
11
|
12
|
50 - 65
|
Applications:
The taper button bits is a high-performing tool which is specially designed for rugged applications. Its unique tapered design and high-strength materials make it highly efficient and reliable in various industries. This includes mining, tunnel construction, geological exploration, construction engineering, hydropower engineering, railway and highway construction.
Moreover, it is a versatile tool that can handle a wide range of applications in municipal engineering, environmental protection engineering, and other fields. Its reliability and dependability have made it a popular choice in several industries.
Packing and Shipping:
We ship our tapered button bits worldwide using reliable shipping services.
Customers will receive a tracking number once their order has shipped.
FAQ:
A: The brand name of the tapered button bit is MTH.
2. Q: What is the model number of the tapered button bit?
A: The model number of the tapered button bit is Tapered bit.
3. Q: What is the minimum order quantity for the tapered button bit?
A: The minimum order quantity for the tapered button bit is 50.
4. Q: What is the delivery time for the tapered button bit?
A: The delivery time for the stock tapered button bit is 7 days.
5. Q: What are the payment terms for the tapered button bit?
A: The payment terms for the tapered button bit are T/T and Western Union.
