Product Description:
For hand held rock drills, we have Y6, Y20, Y19A Y24 and Y26. Among them, the Y6, Y20 and Y24 are widely used in quarrying or construction industry.
Model Y20 and Y24 Hand-held Rock Drill is intended for drilling downward and inclined blast holes in medium hard and herd rock (f=8~18):•The rock drill is mainly used small quarries. Mines for constructing in mountain areas, water conservancy works in capital construction, also for secondary blasting in large mines and other projects.

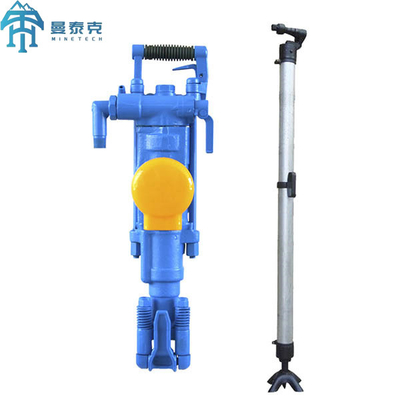

Air-leg pneumatic rock drills
Our air-leg rock drills have following features:
1. Fit for wet drilling in medium-hard or hard rock
2. Grouped control mechanism, quick to start up, with "air on, water on, air off, water off" machanism, convenient to handle and easy to maintain and repair.
3. Energy-saving and efficient, long service life of parts which are highly interchangeable and reliable performance.
4. YT28 differs from similar products particularly in its high efficiency strong flushing and powerful torque.
Features:
1. Easily-accessible position throttle
2. Integral muffler,lower noise
3.Reliable structure,easy and stable operation
4.Hand-held and air legs rock drill accessible.
5.Provide the ultimate combination of performance and economy. Smart,and durable.
Technical Parameters:
| Product Attribute |
Value |
| Product Name |
Rock Drilling Machine |
| Shank Dimensions |
22×108 Mm±108mm |
| Power Type |
Pneumatic, Air Compressor |
| Air Pipe (Inner Dia) |
25mm |
| Air Pressure |
0.4—0.63MPa |
| Air Consumption |
≤88 L/S(0.63MPa) |
| Weight |
27kg |
| Machine Type |
Drilling Tools |
| Impact Frequency |
≥39Hz(0.63MPa) |
| Condition |
New |
| Piston Stroke |
60mm |
| Model |
Working Pressure |
Air Consumption |
Shank Size |
Net
Weight
|
Gross
Weight
|
Packaging Size |
| MPa |
Bar |
m3/min |
cfm |
(mm) |
(mm) |
(mm) |
(L×W×H) (mm) |
| Y18 |
0.4 |
4 |
1.4 |
49 |
Hex22*108 |
17 |
20 |
590×280×180 |
| Y19 |
0.4 |
4 |
1.9 |
67 |
Hex22*108 |
18 |
21 |
690×300×190 |
| Y20 |
0.4 |
4 |
1.7 |
60 |
Hex22*108 |
18 |
21 |
590×280×180 |
| Y24 |
0.4-0.5 |
4-5 |
2.1-2.6 |
74-92 |
Hex22*108 |
24 |
27 |
740×310×220 |
| Y26 |
0.5 |
5 |
3.2 |
113 |
Hex22*108 |
26 |
29 |
780×310×220 |
| YT24 |
0.5 |
5 |
2.8 |
99 |
Hex22*108 |
24 |
27 |
740×310×220 |
| YT28 |
0.5 |
5 |
3.8 |
134 |
Hex22*108 |
26 |
29 |
740××310×220 |
Applications:
Our rock drilling machines are suitable for a variety of applications and scenarios. Whether you're working on a construction site, mining operation, or quarry, our drills are sure to meet your needs. With a cylinder diameter of 82mm and air pressure of 0.4—0.63MPa, our drills are capable of drilling through even the toughest rock formations.
When you purchase our rock drilling machine, you can rest assured that it will arrive in perfect condition. Each machine comes packaged in a sturdy wooden case to prevent damage during transport. And with a delivery time of within 2 weeks, you won't have to wait long to put your new machine to work.
We offer a variety of payment options to suit your needs, including T/T. And with a supply ability of 1000/month, we can accommodate even the largest orders. Plus, our machines come with a 1-year warranty, giving you peace of mind and ensuring that you get the most out of your investment.
Don't settle for anything less than the best when it comes to your rock drilling needs. Choose our Hand held Pneumatic rock drills, model number YT29A, for reliable, efficient, and affordable performance. Order now and experience the difference for yourself!
Packing and Shipping:
Packing: The Rock Drill and the Pusher leg will be packed Separatly in a Carton Box
Shipping: If QTY small we will send by Express, if QTY big we will send by sea, the shipping cost will be based on the qty customers need.
