Product Description:

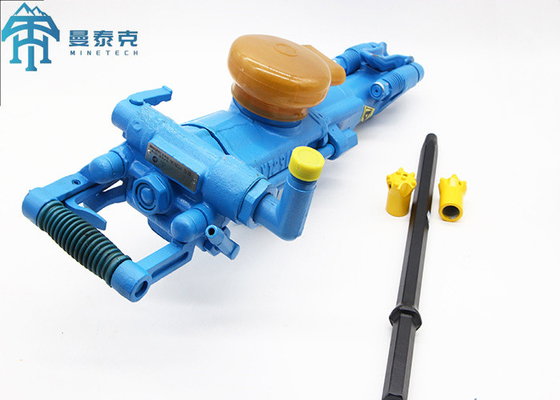

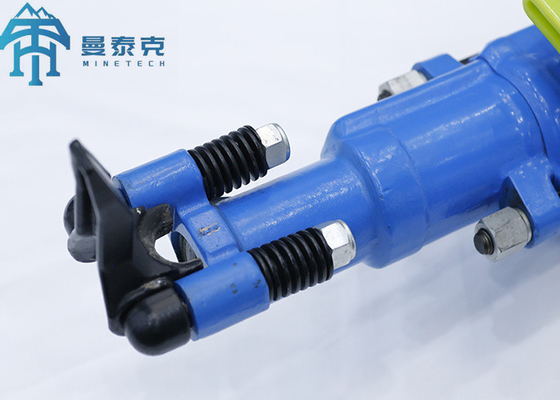

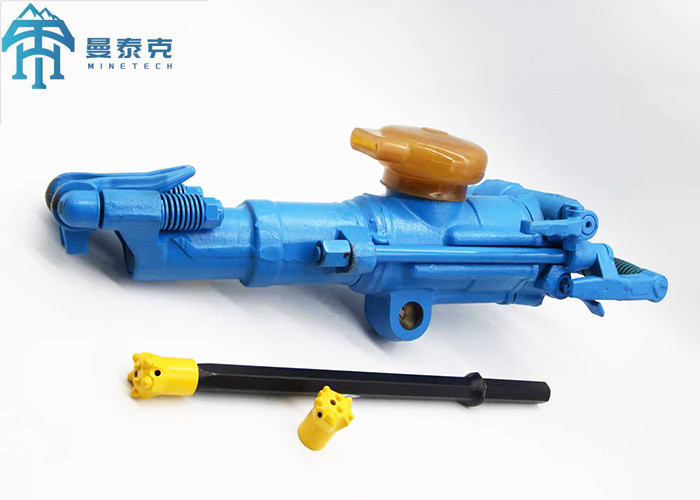

YT29A Portable Pneumatic Jackhammer is a kind of high efficiency air leg rock drill machine.

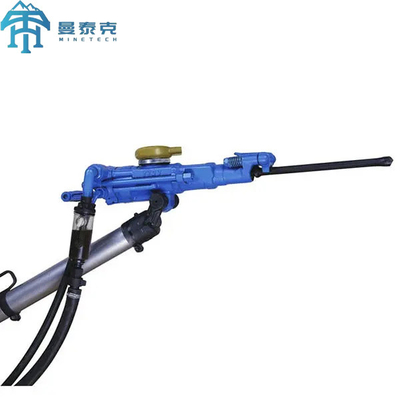

It is mainly used for blasting holes and other drilling works in some quarries, railway,construction, water conservancy construction and national defense project facility. When it is matched with Model FY250 Oil reservoir and Model FT160A or FT160B Air leg, it is suitable for wet drilling under various of rocks at a clinic and incline orientation.it can also use in the trolley without Air-leg.
Features:
1. Easily-accessible position throttle
2. Integral muffler,lower noise
3.Reliable structure,easy and stable operation
4.Hand-held and air legs rock drill accessible.
5.Provide the ultimate combination of performance and economy. Smart,and durable.
Technical Parameters:
| Product |
Rock Drilling Machine |
| Shank dimensions(hex×length) |
22×108 Mm±108mm |
| Weight |
27kg |
| Air Pressure |
0.4—0.63MPa |
| Warranty |
1 Year |
| Application |
Surface Mining, Quarrying, Construction |
| Power Type |
Pneumatic,Air Compressor |
| Air consumption |
≤88 L/S(0.63MPa) |
| Water pipe (inner dia) |
13mm |
| Piston stroke |
60mm |
| Condition |
New |
Applications:
Pusher legs and stoper rock drills cover all construction, tunnelling and mining applications in different rock formations. They are robust designed, with high impact energy and low air consumption. All of the rock drills have water flushing, rifle bar rotation and the pusher leg control is placed at the back head of the rock drill. An in-line lubricator is included in the delivery of each rock drill. Together with the appropriate pusher leg, the rock drill forms an attractive and cost effective drilling unit. widely used in coal mining,tunnelling and quarry etc.
Packing and Shipping:
Packing: The Rock Drill and the Pusher leg will be packed Separatly in a Carton Box
Shipping: If QTY small we will send by Express, if QTY big we will send by sea, the shipping cost will be based on the qty customers need.
Company Profile
Hebei Minetech Machinery Technology Co, Ltd. is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province,China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption, like drill bit and drill rod with own factory in Shijiazhuang City.
With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.
Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, South America and so on, and established a good brand and reputation international market.
