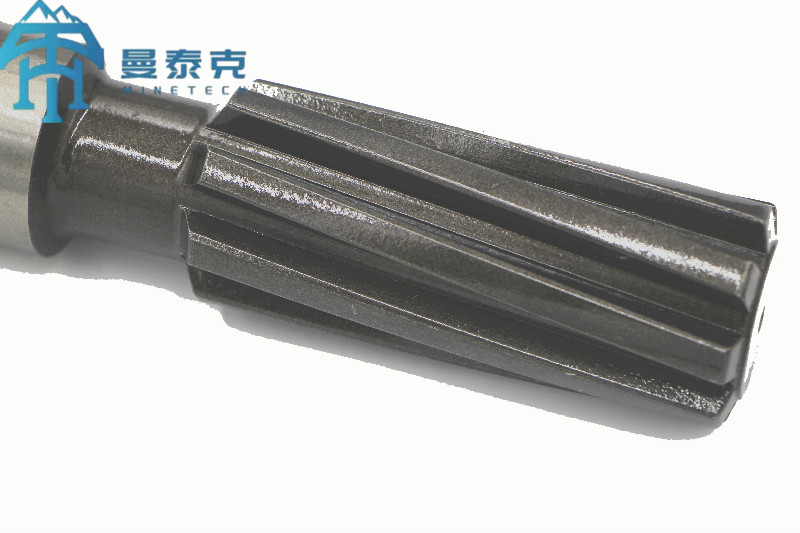

High Carbon Steel T51 Shank Adapter With For Optimal Drilling
Product Description:
Shank adapters play an important role in transmitting power from rock drill to the drill stems. They are designed to transfer power from the rock drill piston to the extension drill rod and eventually to the drill bit.
In rock drilling, top hammer shank adapters are crucial as they directly bear the impact energy and torque of the rock drill. They are used to transfer energy from the drill rig to the drill rod. One end of the shank adaptor is connected to the drill rig, while the other end is connected to the drill rod. This way, the energy of the drill rig can be transmitted to the drill bit, achieving the purpose of drilling.
Without shank adaptors, power transmission from the rock drill piston to the drill bit would not be efficient, making rock drilling a difficult and time-consuming task. The use of shank adapters ensures that the energy generated by the rock drill is efficiently transferred to the drill bit, allowing for faster and more effective drilling.
Applications:
Drilling is an essential activity in various industries, including but not limited to, tunneling, construction, mining, and quarrying. Professionals use drills to prepare holes for explosives as part of blasting duties. These explosives are used for a variety of purposes, such as excavating rocks or creating large cavities in the ground.
In the case of tunneling, drilling machines are used to excavate rocks and create a pathway for tunnels. For construction, drills are used to install concrete anchors and create pathways for electrical and plumbing pipes. In mining and quarrying, drills are used to extract minerals and rocks from beneath the earth's surface.
Without drilling, many industries would struggle to operate efficiently. Drill technology has become increasingly advanced over the years, allowing for faster and more precise drilling. As these technologies continue to improve, drilling will remain a critical component of various industries.
Parameters:
|
Item
|
Thread
|
Length
|
Diameter
|
Weight
|
|
mm
|
mm
|
kg
|
|
Atlas Copco COP 1440, COP 1838
|
R32 (1 1/4")
|
640
|
52
|
9.1
|
|
R38 (1 1/2")
|
640
|
52
|
8.9
|
|
Atlas Copco COP 1440, COP 1550, COP 1838
|
R32 (1 1/4")
|
525
|
52
|
5.7
|
|
T38 (1 1/2")
|
525
|
52
|
5.9
|
|
T45 (1 3/4")
|
525
|
52
|
6.1
|
|
T51 (2")
|
525
|
52
|
6.5
|
|
Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238
|
R32 (1 1/4")
|
435
|
38
|
3.6
|
|
R38 (1 1/2")
|
435
|
38
|
3.9
|
|
T38 (1 1/2")
|
435
|
38
|
3.8
|
|
Atlas Copco COP 1440, COP1550, COP 1638, COP 1838
|
T38 (1 1/2")
|
435
|
38
|
3.9
|
|
Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238
|
R32 (1 1/4")
|
585
|
38
|
4.2
|
|
R38 (1 1/2")
|
525
|
38
|
4.3
|
|
T38 (1 1/2")
|
525
|
38
|
4.3
|
|
Atlas Copco COP 1638, COP 1838AW
|
R38 (1 1/2")
|
455
|
38
|
4.1
|
|
T38 (1 1/2")
|
455
|
38
|
4.1
|
|
Atlas Copco COP 1638, COP 1838AW
|
R32 (1 1/4")
|
525
|
38
|
4.3
|
|
T38 (1 1/2")
|
525
|
38
|
4.5
|
Customization:
Our minimum order quantity is 5PCS and we offer competitive pricing. We accept payment through T/T and Western Union.
Our Shank Adapter is perfect for Tunnelling, Mining, Quarrying, Blasting And Infrastructure Construction Facedrilling And Bolting, Bench Drilling, Production Drilling, Long Hole Drilling, Drifting. Choose Minetech for your Tophammer equipment needs and customize your Shank Adapter today!
Packing and Shipping:
Product Packaging:
The Shank Adapter product will be packaged in a sturdy cardboard box to ensure safe transportation.
Shipping:
Orders for the Shank Adapter product will be shipped via standard shipping. Shipping costs will be calculated based on the destination and weight of the package.
