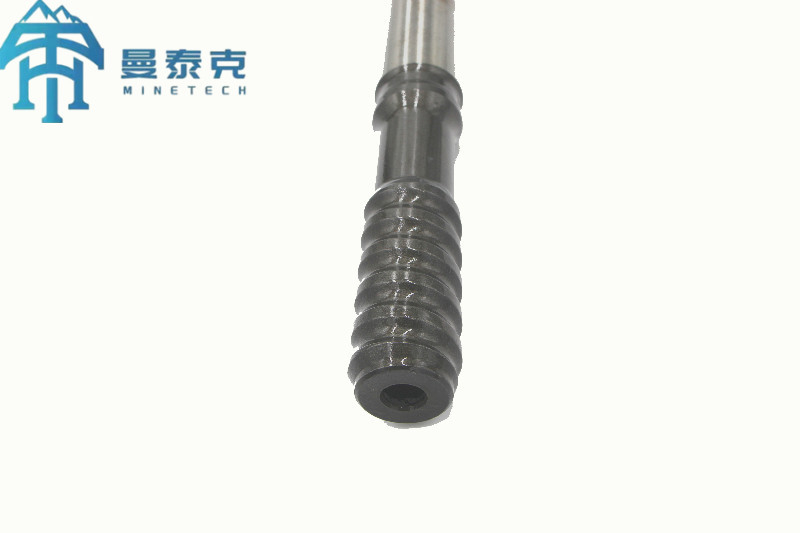

Heat Treatment Shank Adapter Carbon Steel Masonry T51 Drifting Tool
Product Description:
Shank adapters are essential components in rock drilling. They serve as a medium for transmitting power from the rock drill to the drill stems. In order to transmit power from the rock drill piston to the extension drill rod and eventually to the drill bit, the shank adapter has to be designed with precision and accuracy.
Top hammer shank adapters play a crucial role in rock drilling by withstanding the impact energy and torque of the rock drill. They are specifically designed to transfer the energy generated by the drill rig to the drill rod. The shank adapter is connected to the drill rig on one end and to the drill rod on the other, allowing the energy generated by the drill rig to be transmitted to the drill bit. As a result, this system achieves the ultimate goal of drilling.
Therefore, it is vital to select the right shank adapter for the specific rock drilling application. Not only must it be strong and durable, but it must also be able to withstand the high stresses generated during drilling. By using the appropriate shank adapter, drilling operations can be executed safely and efficiently.
Applications:
Drilling plays a crucial role in various industries including tunneling, construction, mining, quarrying, and more. It is primarily used for blasting duties and is an essential process for extracting minerals and resources from the earth.
When it comes to tunneling and construction, drilling is used to create holes for pipes, cables, and ventilation systems. In mining, it is used to extract valuable minerals and ores from the ground. In quarrying, it is used to obtain various types of rocks that are used for construction and other purposes.
Drilling technology and techniques have advanced significantly in recent years, and there are now various types of drilling equipment and methods available. These include rotary drilling, percussion drilling, and diamond drilling. The type of drilling method used depends on several factors, including the material being drilled and the desired results.
Overall, drilling is a crucial process in many industries, and it continues to evolve as technology advances.
Parameters:
|
Item
|
Thread
|
Length
|
Diameter
|
Weight
|
|
mm
|
mm
|
kg
|
|
Atlas Copco COP 1440, COP 1838
|
R32 (1 1/4")
|
640
|
52
|
9.1
|
|
R38 (1 1/2")
|
640
|
52
|
8.9
|
|
Atlas Copco COP 1440, COP 1550, COP 1838
|
R32 (1 1/4")
|
525
|
52
|
5.7
|
|
T38 (1 1/2")
|
525
|
52
|
5.9
|
|
T45 (1 3/4")
|
525
|
52
|
6.1
|
|
T51 (2")
|
525
|
52
|
6.5
|
|
Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238
|
R32 (1 1/4")
|
435
|
38
|
3.6
|
|
R38 (1 1/2")
|
435
|
38
|
3.9
|
|
T38 (1 1/2")
|
435
|
38
|
3.8
|
|
Atlas Copco COP 1440, COP1550, COP 1638, COP 1838
|
T38 (1 1/2")
|
435
|
38
|
3.9
|
|
Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238
|
R32 (1 1/4")
|
585
|
38
|
4.2
|
|
R38 (1 1/2")
|
525
|
38
|
4.3
|
|
T38 (1 1/2")
|
525
|
38
|
4.3
|
|
Atlas Copco COP 1638, COP 1838AW
|
R38 (1 1/2")
|
455
|
38
|
4.1
|
|
T38 (1 1/2")
|
455
|
38
|
4.1
|
|
Atlas Copco COP 1638, COP 1838AW
|
R32 (1 1/4")
|
525
|
38
|
4.3
|
|
T38 (1 1/2")
|
525
|
38
|
4.5
|
Packing and Shipping:
Product Packaging:
1 Shank Adapter protective plastic covering
Shipping method: express, air, sea, rail
FAQ:
Q: What is the brand name of this product?
A: The brand name of this product is Minetech.
Q: What is the model number of this product?
A: The model number of this product is COP2160.
Q: Where is this product made?
A: This product is made in China.
Q: Is this product certified?
A: Yes, this product is certified with ISO9001.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 5.
Q: How much does this product cost?
A: The price of this product is determined by the quantity ordered.
Q: How is this product packaged?
A: This product is packaged in a carton box.
Q: What are the payment terms for this product?
A: The payment terms for this product is TT (Telegraphic Transfer).
Q: What is the supply ability for this product?
A: The supply ability for this product is 500 units per month.
