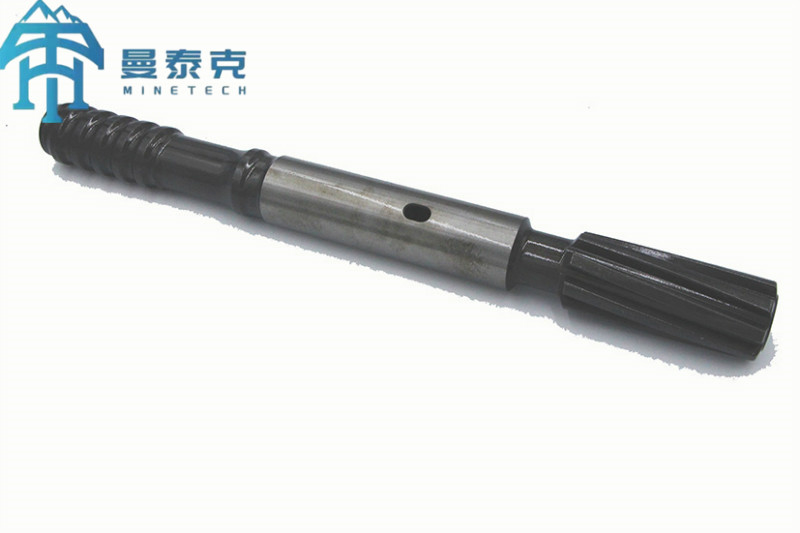

CNC Machined COP2160 Shank Adapter Open Cast Drilling Projects
Product Description:
Shank adapters play a crucial role in the transmission of power from the rock drill to the drill stems. Its primary purpose is to enable the transfer of power from the rock drill piston to the extension drill rod and ultimately to the drill bit.
Top hammer shank adapters are an essential component in rock drilling operations and are directly responsible for bearing the impact energy and torque of the rock drill. They are necessary for transferring energy from the drill rig to the drill rod.
The shank adaptor has two ends. One end is connected to the drill rig, while the other end is connected to the drill rod. This connection is essential for transmitting the energy from the drill rig, which ultimately allows the drill bit to function and achieve the purpose of drilling.
Applications:
Drilling is an essential process for many industrial applications, including tunneling, construction, mining, quarrying and more. This process involves creating holes in a variety of materials to facilitate blasting duties and other tasks.
Drilling plays a crucial role in tunneling, allowing the excavation of tunnels for various purposes, such as transportation systems and utilities. In construction projects, drilling is often used to create holes in concrete or other materials for the installation of pipes, wiring and other fixtures. The mining industry relies heavily on drilling to access mineral deposits and extract valuable resources from the earth. Quarrying operations also involve the use of drilling to extract stone or other materials from the ground.
Drilling can be performed in a variety of ways, depending on the location and materials involved. Some common methods include rotary drilling, percussion drilling, and auger drilling. The appropriate drilling method for a given task depends on many factors, including the hardness and density of the material being drilled, the depth and diameter of the hole required, and the desired speed and efficiency of the drilling process.
Overall, drilling is a fundamental process that has numerous applications across a range of industries, helping to make many important projects and operations possible.
Parameters:
|
Item
|
Thread
|
Length
|
Diameter
|
Weight
|
|
mm
|
mm
|
kg
|
|
Atlas Copco COP 1440, COP 1838
|
R32 (1 1/4")
|
640
|
52
|
9.1
|
|
R38 (1 1/2")
|
640
|
52
|
8.9
|
|
Atlas Copco COP 1440, COP 1550, COP 1838
|
R32 (1 1/4")
|
525
|
52
|
5.7
|
|
T38 (1 1/2")
|
525
|
52
|
5.9
|
|
T45 (1 3/4")
|
525
|
52
|
6.1
|
|
T51 (2")
|
525
|
52
|
6.5
|
|
Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238
|
R32 (1 1/4")
|
435
|
38
|
3.6
|
|
R38 (1 1/2")
|
435
|
38
|
3.9
|
|
T38 (1 1/2")
|
435
|
38
|
3.8
|
|
Atlas Copco COP 1440, COP1550, COP 1638, COP 1838
|
T38 (1 1/2")
|
435
|
38
|
3.9
|
|
Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238
|
R32 (1 1/4")
|
585
|
38
|
4.2
|
|
R38 (1 1/2")
|
525
|
38
|
4.3
|
|
T38 (1 1/2")
|
525
|
38
|
4.3
|
|
Atlas Copco COP 1638, COP 1838AW
|
R38 (1 1/2")
|
455
|
38
|
4.1
|
|
T38 (1 1/2")
|
455
|
38
|
4.1
|
|
Atlas Copco COP 1638, COP 1838AW
|
R32 (1 1/4")
|
525
|
38
|
4.3
|
|
T38 (1 1/2")
|
525
|
38
|
4.5
|
Customization:
Our Shank Adapter products are certified with ISO9001 and are made in China. The minimum order quantity is 5pcs and the packaging details include a carton box. The payment terms accepted include T/T and Western Union.
Our supply ability for Shank Adapter products is 500 per month. Contact us today to learn more about our customization services for this product.
Packing and Shipping:
Protective plastic wrapping
Shipping cost: Depend on transport way
