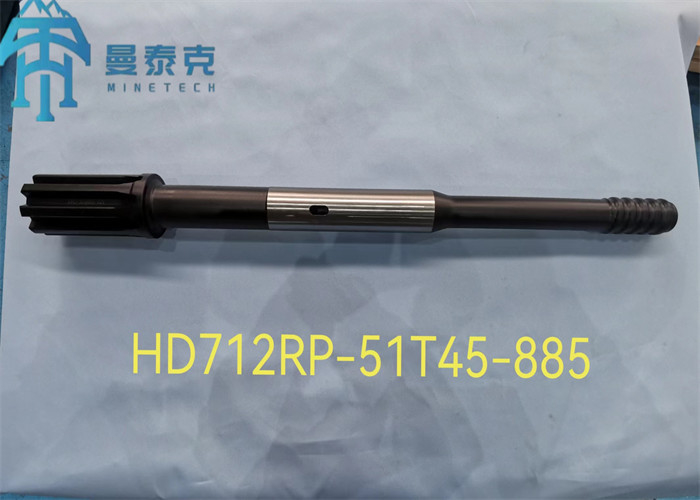

8 Splines Diameter 72mm Shank Adapter Tophammer Drilling Equipment
Product Description:
Shank adapters play a critical role in rock drilling. Their purpose is to transmit power from the rock drill to the drill rods. Specifically, the adapter is designed to transfer power from the rock drill piston to the extension drill rod, which in turn powers the drill bit.
Top hammer shank adapters are an essential part of this process, as they bear the brunt of the impact energy and torque of the rock drill. They are used to transfer the energy from the drill rig to the drill rod. One end of the shank adapter is connected to the drill rig, and the other is connected to the drill rod. This allows the energy of the drill rig to be transmitted to the drill bit, eventually resulting in successful drilling.
Applications:
Shank adapter plays an essential role in various industries, including tunneling, construction, mining, quarrying, and more. The primary purpose of drilling is to prepare the ground for blasting duties.
In tunneling, drilling is used to create holes for the placement of explosives, which are necessary for breaking up the rock or soil. The same principle applies to mining and quarrying. Without proper drilling, it would be impossible to extract minerals or materials from beneath the surface.
Drilling is also a critical component in construction. It is used to create holes in concrete, brick, and other materials, allowing for easy installation of air ducts, plumbing, and electrical systems. In addition, drilling is used for large-scale excavation projects, such as creating foundation holes.
In summary, drilling is a vital component of many industries, allowing for various tasks such as excavating, mineral extraction, and preparing surfaces for construction. Its significance cannot be overstated, and its usage will continue to be essential in these industries for years to come.
Parameters:
|
Item
|
Thread
|
Length
|
Diameter
|
Weight
|
|
mm
|
mm
|
kg
|
|
Atlas Copco COP 1440, COP 1838
|
R32 (1 1/4")
|
640
|
52
|
9.1
|
|
R38 (1 1/2")
|
640
|
52
|
8.9
|
|
Atlas Copco COP 1440, COP 1550, COP 1838
|
R32 (1 1/4")
|
525
|
52
|
5.7
|
|
T38 (1 1/2")
|
525
|
52
|
5.9
|
|
T45 (1 3/4")
|
525
|
52
|
6.1
|
|
T51 (2")
|
525
|
52
|
6.5
|
|
Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238
|
R32 (1 1/4")
|
435
|
38
|
3.6
|
|
R38 (1 1/2")
|
435
|
38
|
3.9
|
|
T38 (1 1/2")
|
435
|
38
|
3.8
|
|
Atlas Copco COP 1440, COP1550, COP 1638, COP 1838
|
T38 (1 1/2")
|
435
|
38
|
3.9
|
|
Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238
|
R32 (1 1/4")
|
585
|
38
|
4.2
|
|
R38 (1 1/2")
|
525
|
38
|
4.3
|
|
T38 (1 1/2")
|
525
|
38
|
4.3
|
|
Atlas Copco COP 1638, COP 1838AW
|
R38 (1 1/2")
|
455
|
38
|
4.1
|
|
T38 (1 1/2")
|
455
|
38
|
4.1
|
|
Atlas Copco COP 1638, COP 1838AW
|
R32 (1 1/4")
|
525
|
38
|
4.3
|
|
T38 (1 1/2")
|
525
|
38
|
4.5
|
Customization:
Our Shank Adapter product is made in China and is ISO9001 certified, ensuring the highest quality standards. Our payment terms include T/T and Western Union. We have a supply ability of 500/month to meet your needs.
Packing and Shipping:
The Shank Adapter product comes in a sturdy cardboard box with proper padding to ensure safe delivery.
The Shank Adapter product is shipped through our trusted shipping partners. We ensure that the product is delivered within the promised timeframe. The shipping charges are calculated based on the delivery location and will be displayed during the checkout process.
