Product Description:

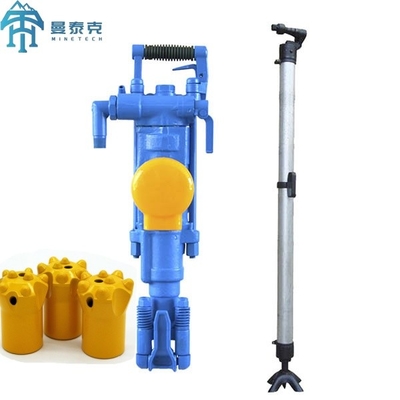

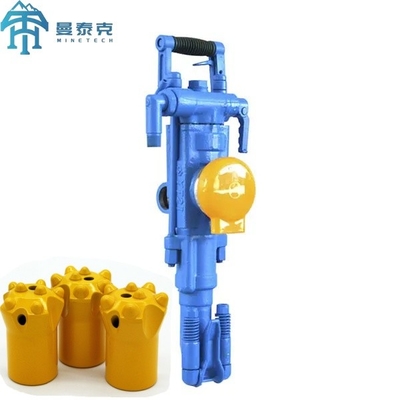

YT27 air leg drill is highly efficient and lightweight, suitable for wet drilling down and tilting holes on medium hard or hard (F =8-18) rocks. Drilling hole diameter 34-45 mm, effective depth of drilling up to 5 m. It has the characteristics of strong blowing-cleaning hole function and large torque, which is obviously better than similar products.

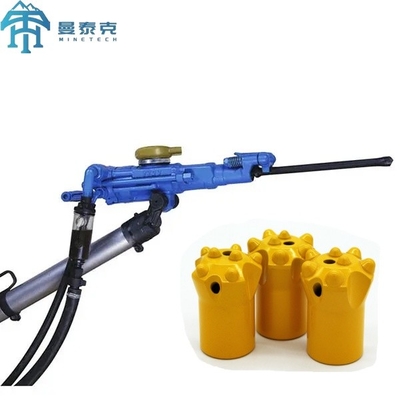

YT27 air-leg rock drill not only has the advantages of YT23 drilling rig, but also USES flange control valve to produce gas and other functions. It is most suitable for large-scale mining and tunnel drilling operations. It is also widely used for rock drilling tools in railway, water conservancy and national defense stone engineering. It can be used together with FY250 type oil injector and FT160A (or FT160B) type air leg for wet rock drilling of medium and hard rocks, drilling horizontal and inclined gun holes, and unloading air leg can also be installed on a platform car.
Features:
1. Easily-accessible position throttle
2. Integral muffler,lower noise
3.Reliable structure,easy and stable operation
4.Hand-held and air legs rock drill accessible.
5.Provide the ultimate combination of performance and economy. Smart,and durable.
Technical Parameters:
| Product Attribute |
Value |
| Product Name |
Rock Drilling Machine |
| Shank Dimensions |
22×108 Mm±108mm |
| Power Type |
Pneumatic, Air Compressor |
| Air Pipe (Inner Dia) |
25mm |
| Air Pressure |
0.4—0.63MPa |
| Air Consumption |
≤88 L/S(0.63MPa) |
| Weight |
27kg |
| Machine Type |
Drilling Tools |
| Impact Frequency |
≥39Hz(0.63MPa) |
| Condition |
New |
| Piston Stroke |
60mm |
| Model |
Working Pressure |
Air Consumption |
Shank Size |
Net
Weight
|
Gross
Weight
|
Packaging Size |
| MPa |
Bar |
m3/min |
cfm |
(mm) |
(mm) |
(mm) |
(L×W×H) (mm) |
| Y18 |
0.4 |
4 |
1.4 |
49 |
Hex22*108 |
17 |
20 |
590×280×180 |
| Y19 |
0.4 |
4 |
1.9 |
67 |
Hex22*108 |
18 |
21 |
690×300×190 |
| Y20 |
0.4 |
4 |
1.7 |
60 |
Hex22*108 |
18 |
21 |
590×280×180 |
| Y24 |
0.4-0.5 |
4-5 |
2.1-2.6 |
74-92 |
Hex22*108 |
24 |
27 |
740×310×220 |
| Y26 |
0.5 |
5 |
3.2 |
113 |
Hex22*108 |
26 |
29 |
780×310×220 |
| YT24 |
0.5 |
5 |
2.8 |
99 |
Hex22*108 |
24 |
27 |
740×310×220 |
| YT28 |
0.5 |
5 |
3.8 |
134 |
Hex22*108 |
26 |
29 |
740××310×220 |
Applications:
Our rock drilling machines are suitable for a variety of applications and scenarios. Whether you're working on a construction site, mining operation, or quarry, our drills are sure to meet your needs. With a cylinder diameter of 82mm and air pressure of 0.4—0.63MPa, our drills are capable of drilling through even the toughest rock formations.
When you purchase our rock drilling machine, you can rest assured that it will arrive in perfect condition. Each machine comes packaged in a sturdy wooden case to prevent damage during transport. And with a delivery time of within 2 weeks, you won't have to wait long to put your new machine to work.
We offer a variety of payment options to suit your needs, including T/T. And with a supply ability of 1000/month, we can accommodate even the largest orders. Plus, our machines come with a 1-year warranty, giving you peace of mind and ensuring that you get the most out of your investment.
Don't settle for anything less than the best when it comes to your rock drilling needs. Choose our Hand held Pneumatic rock drills, model number YT29A, for reliable, efficient, and affordable performance. Order now and experience the difference for yourself!
Packing and Shipping:
Packing: The Rock Drill and the Pusher leg will be packed Separatly in a Carton Box
Shipping: If QTY small we will send by Express, if QTY big we will send by sea, the shipping cost will be based on the qty customers need.
Company Profile
Hebei Minetech Machinery Technology Co, Ltd. is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province,China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption, like drill bit and drill rod with own factory in Shijiazhuang City.
With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.
Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, South America and so on, and established a good brand and reputation international market.
