YT27 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine with 5M Drilling Depth 34-42mm Diameter and 28kg Weight for Hard Rock

YT27 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine with 5M Drilling Depth 34-42mm Diameter and 28kg Weight for Hard Rock
YT27 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine with 5M Drilling Depth 34-42mm Diameter and 28kg Weight for Hard Rock
YT27 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine with 5M Drilling Depth 34-42mm Diameter and 28kg Weight for Hard Rock YT27 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine with 5M Drilling Depth 34-42mm Diameter and 28kg Weight for Hard Rock YT27 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine with 5M Drilling Depth 34-42mm Diameter and 28kg Weight for Hard Rock YT27 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine with 5M Drilling Depth 34-42mm Diameter and 28kg Weight for Hard Rock

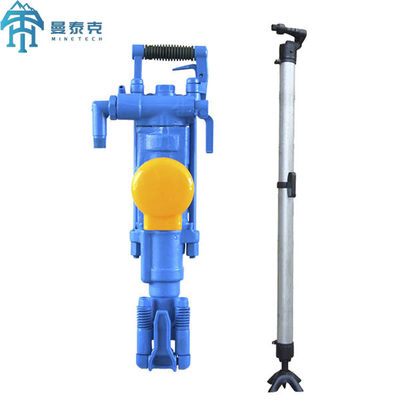

Large Image :  YT27 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine with 5M Drilling Depth 34-42mm Diameter and 28kg Weight for Hard Rock

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: YT27
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $3-$300
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 3000 pieces per month
Contact Now

YT27 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine with 5M Drilling Depth 34-42mm Diameter and 28kg Weight for Hard Rock

Description
Name: Pneumatic Portable Drilling Machine/Hand Held Rock Drill/jack Hammer,Small Pneumatic Tunnel Rock Drill Machine Usage: Mining Used,Rock Drilling
Condition: New Weight: 28kg
Drilling Depth: 5M Color: Yellow,green
Drilling Diameter: 34-42mm
Highlight:

YT27 Rock Drilling Machine

,

Portable Rock Drilling Machine

,

Pneumatic Rock Drilling Machine

YT27 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine For Hard Rock
The YT27 is a high-efficiency pneumatic rock drill designed for demanding drilling operations in hard rock conditions. This versatile machine is ideal for blasting holes and other drilling applications in quarries, railway construction, water conservancy projects, and defense facilities.
Key Features
  • High-performance air leg rock drill for efficient operation
  • Compatible with FY250 Oil reservoir and FT160A/B Air-leg for wet drilling
  • Suitable for various rock conditions and environments
  • Globally exported and proven in demanding applications
Safety Guidelines
  • Always follow technical safety practices during operation
  • Regularly inspect and replace frayed steel wire ring clamps
  • Immediately replace any abraded steel wire ring clamps
  • Never use low burning point or explosive lubricating oils
Technical Specifications
Parameter Unit Value
Weight kg ≈28
Length mm 661
Cylinder diameter mm 82
Piston stroke mm 60
Gas consumption L/s ≤65
Drilling frequency Hz ≥37
Impact energy J ≥70
Borehole speed mm/min ≥475
Borehole diameter mm Φ34-42
Perforating depth m 5
Shank mm 22×108±1

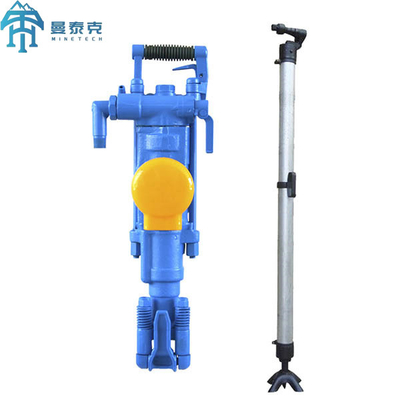

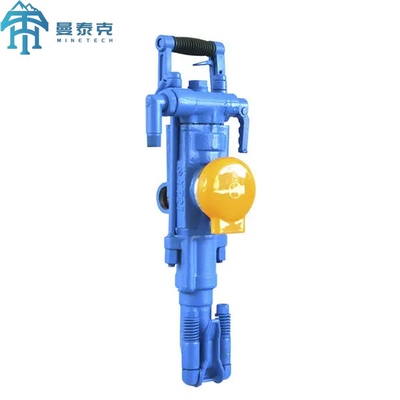

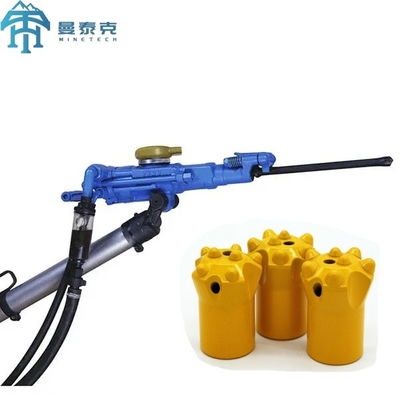

Product Images
YT27 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine with 5M Drilling Depth 34-42mm Diameter and 28kg Weight for Hard Rock 0 YT27 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine with 5M Drilling Depth 34-42mm Diameter and 28kg Weight for Hard Rock 1 YT27 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine with 5M Drilling Depth 34-42mm Diameter and 28kg Weight for Hard Rock 2
