YT29A Pneumatic Jack hammer portable rock drill drilling machines for mining
Product Description

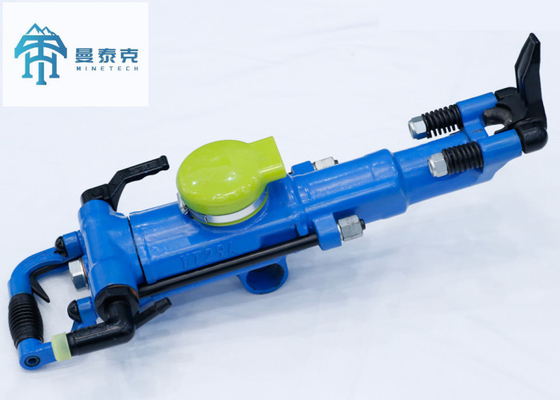

YT29A is a kind of high efficiency heavy-duty air leg rock drill machine. It is widelyused for blasting holes and other drilling projects in a quarries, railway construction, water conservancy construction and defense project facility.

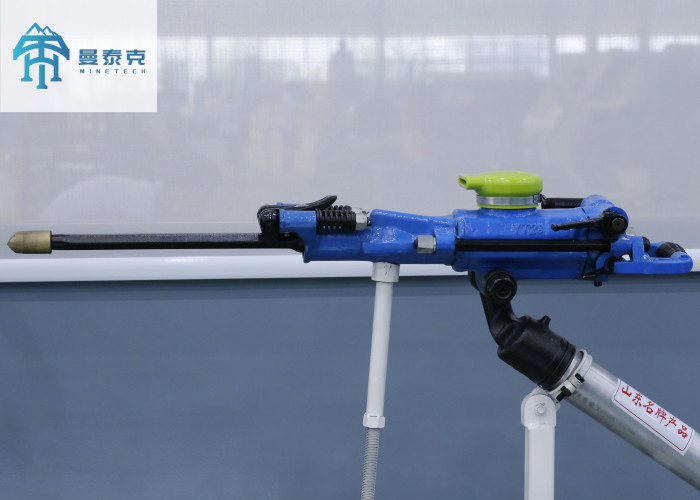

It is suitable for drill level or gradient holes in medium hard or hard rock (f=8-18).The drilling depth can be five-eight meters. It can be matched with the FT160A air-leg or FT160C long air-leg to use in the basis of the width of rock. Also it can be fixed on drilling-vehicle or drilling-shelf.
To ensure the well lubricating, this rock drill may match FY250 oil reservoir
| YT29A Pneumatic Perforadora Mine hammer maquinas de Rock Drill Rig |
| Weight |
29 kg |
Size |
659*248*205mm |
| Cylinder dia |
82mm |
Piston stroke |
60mm |
| Air pressure |
0.4—0.63MPa |
Impact frequency |
≥39Hz(0.63MPa) |
| Air consumption |
≤88 L/S(0.63MPa) |
Air pipe (inner dia) |
25mm |
| Water pipe (inner dia) |
13mm |
Shank head dia |
34-45mm |
The YT29A rock drill is the most rugged, powerful and highly efficient rock drill in the range .It gives improved productivity and drill steel economy and can be used on all rock formation and in all kinds of applications.
YT29 A YT29A rock hammer pneumatic drill machine YT29A
