Product Details:
|
| Product Name: | Thread Drill Bits | Color: | Blue,Gold,Customized,Red,yellow / Black / Red |
|---|---|---|---|
| Diameter: | 48mm | Application: | Rock Drilling,DTH Drill Bits And Roller Bits,Mining |
| Material: | Carbide,Carbon Steel | Use: | Ore Mining,Coal Mining,Well Drilling,Quarry,blasting |
| Advantage: | High Wear Resistant,High Performance | ||
| Highlight: | 102mm Thread Button Drill Bit,Spherical Thread Button Drill Bit,T45 Thread Button Drill Bit |
||

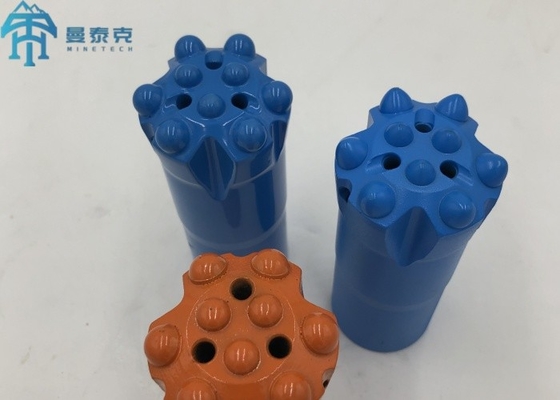

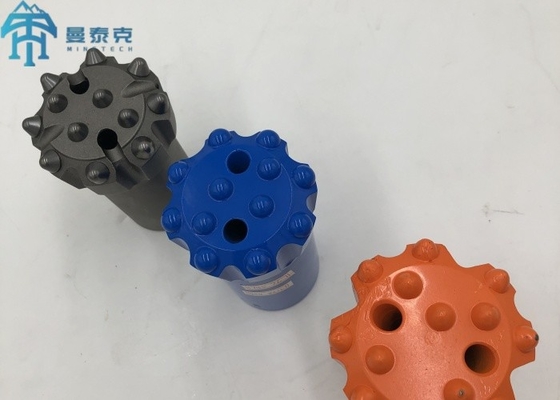

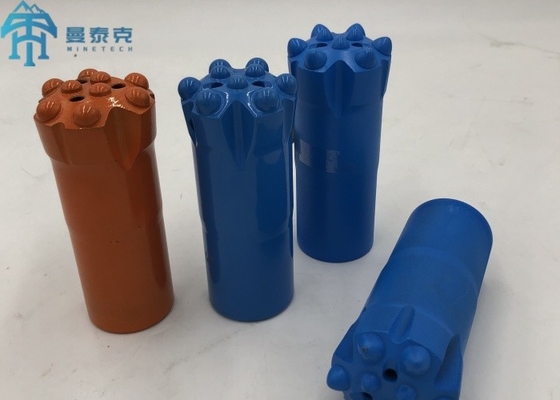

T32 48mm Thread Button Drill Bit Spherical and Ballistic Drill Bit Rock Drill Bit
Description:
Specification:
| Thread Type | dia | tip size(mm) | flushing holes | weight (kg) | ||
| mm | front | gauge | front | side | ||
| R32 | 45 | 3*8 | 6*9 | 3 | 0 | 1.1 |
| 64 | 3*10,1*10 | 6*10 | 3 | 0 | 2.2 | |
| 76 | 4*11,1*11 | 8*11 | 4 | 1 | 3.5 | |
| T38 | 64 | 3*11 | 6*12 | 3 | 0 | 1.8 |
| 76 | 4*11 | 8*11 | 2 | 0 | 2.4 | |
| 89 | 4*13 | 8*13 | 2 | 0 | 3.3 | |
| T45 | 70 | 4*11 | 8*11 | 2 | 0 | 2.4 |
| 76 | 4*11 | 8*11 | 2 | 0 | 2.6 | |
| 89 | 4*13 | 8*13 | 2 | 0 | 4.6 | |
| 102 | 5*14 | 8*14 | 2 | 0 | 5 | |
| T51 | 89 | 4*13 | 8*13 | 2 | 0 | 5.3 |
| 102 | 4*14 | 8*14 | 2 | 0 | 7.3 | |
| 115 | 6*14 | 8*14 | 2 | 0 | 9.8 | |
| 127 | 8*14 | 8*16 | 2 | 1 | 12 | |
![]()
![]()
![]()
