Top Hammer Drilling Tools 102mm T51 Thread Button Bit For Rock Drilling

Top Hammer Drilling Tools 102mm T51 Thread Button Bit For Rock Drilling
Top Hammer Drilling Tools 102mm T51 Thread Button Bit For Rock Drilling Top Hammer Drilling Tools 102mm T51 Thread Button Bit For Rock Drilling Top Hammer Drilling Tools 102mm T51 Thread Button Bit For Rock Drilling

Large Image :  Top Hammer Drilling Tools 102mm T51 Thread Button Bit For Rock Drilling

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: T51 102mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 20000 pieces per month

Top Hammer Drilling Tools 102mm T51 Thread Button Bit For Rock Drilling

Description
Product Name: Thread Button Bit Material: Carbon Steel
Color: Blue,yellow ,black And So On Diameter: 102mm
Application: Rock Drilling,Mining,Construction,Mining,Well Drilling,Rock Drilling And So On. Advantage: High Efficiency,high Quality.
Thread: T51 Weight: 3.2kg
Sample: Available Face Designs: Flat Face, Drop Center, Uni-face
Highlight:

T51 Thread Button Bit

,

Rock Drilling Thread Button Bit

,

102mm Thread Button Bit

Top Hammer Drilling Tools 102mm T51 Thread Button Bit For Rock Drilling

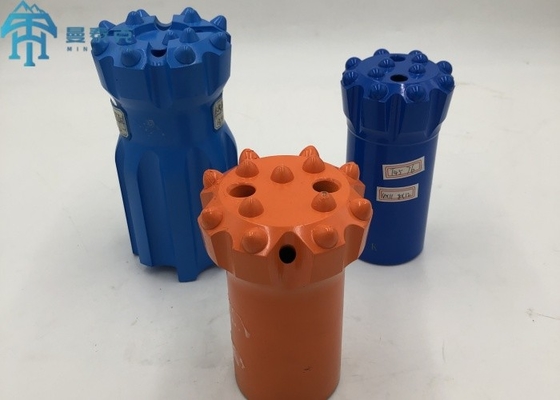

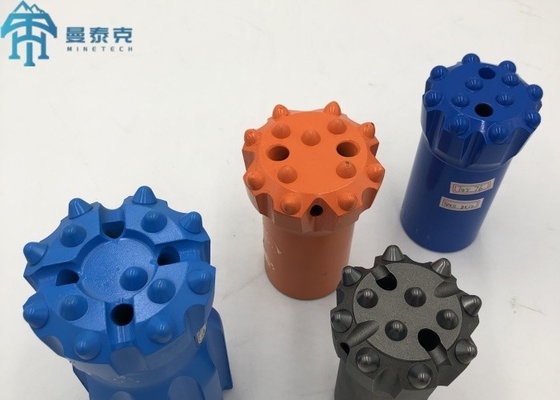

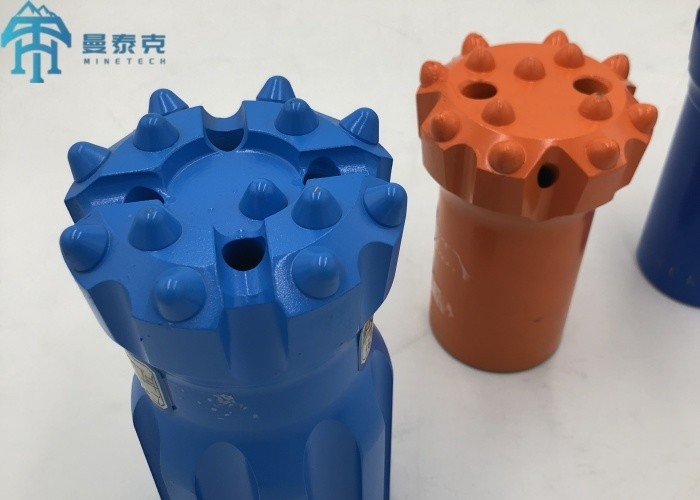

Thread Button Bit Description:

14 Semi-ballistic carbide inserts T51 threaded drill bit with drop center face design, 102 mm diameter match with extension drill steels. Drop center bits are well suited for drilling straighter holes in less abrasive and less consolidated rock at a faster rate.

Premium designs and steel and premium tungsten carbide, Offers industry-leading strength and penetration rates for more productivity,Excellent straightness and hole clean quality,Get max.drilling performance for rock drills with long life to save up



A comprehensive range of various button bits shown as below:



Thread sizes

T51

Head diameters 102mm
Face designs  Flat face, drop center, uni-face
Color  Blue,yellow,red and others
Material  Tungsten carbide and high strength alloy steel
Processing  CNC milling and proprietary heat treatment process
Type  T51 Button Bit Semi-ballistic Buttons



Thread Button Bit Applications:



Rock Drilling,Mining,Construction,Mining,Well Drilling,Rock Drilling and so on.



Used in bench drilling, underground long hole drilling to match extension MF rod, MM rod heavy duty top hammer tools.



Thread Button Bit Advantage:



• High grade tungsten carbide inserts.

High efficiency,high quality.



Company Profile:



Hebei Minetech Machinery Technology Co, Ltd. is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province,China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption, like drill bit and drill rod with own factory in Shijiazhuang City.



With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.


Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, South America and so on, and established a good brand and reputation international market.



Top Hammer Drilling Tools 102mm T51 Thread Button Bit For Rock Drilling 0Top Hammer Drilling Tools 102mm T51 Thread Button Bit For Rock Drilling 1Top Hammer Drilling Tools 102mm T51 Thread Button Bit For Rock Drilling 2




Top Hammer Drilling Tools 102mm T51 Thread Button Bit For Rock Drilling 3Top Hammer Drilling Tools 102mm T51 Thread Button Bit For Rock Drilling 4
