YT27 Model Pneumatic Rock Drill with Grouped Control Mechanism for Medium to Hard Rock and Strong Flushing Power

YT27 Model Pneumatic Rock Drill with Grouped Control Mechanism for Medium to Hard Rock and Strong Flushing Power
YT27 Model Pneumatic Rock Drill with Grouped Control Mechanism for Medium to Hard Rock and Strong Flushing Power
YT27 Model Pneumatic Rock Drill with Grouped Control Mechanism for Medium to Hard Rock and Strong Flushing Power YT27 Model Pneumatic Rock Drill with Grouped Control Mechanism for Medium to Hard Rock and Strong Flushing Power YT27 Model Pneumatic Rock Drill with Grouped Control Mechanism for Medium to Hard Rock and Strong Flushing Power YT27 Model Pneumatic Rock Drill with Grouped Control Mechanism for Medium to Hard Rock and Strong Flushing Power

Large Image :  YT27 Model Pneumatic Rock Drill with Grouped Control Mechanism for Medium to Hard Rock and Strong Flushing Power

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: YT27
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: $3-$300
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: T/T,Western Union,L/C
Supply Ability: 3000 pieces per month
Contact Now

YT27 Model Pneumatic Rock Drill with Grouped Control Mechanism for Medium to Hard Rock and Strong Flushing Power

Description
Name: Pneumatic Portable Drilling Machine/Hand Held Rock Drill/jack Hammer Usage: Ore,Coal,mining Used,Rock Drilling
Key Words: Rock Drilling Machine Power Type: Pneumatic,Air Compressor And Electric
Color: Green，blue Application: Blast Hole Drilling And Breaking,pavement Breaking,drill Rig
Model No: YT 27
Highlight:

Mining Rock Drill

,

Hard Ground Rock Drill

,

Quarrying Rock Drill

YT27 Rock Drill Hard Ground Blast Hole Air-leg Machine for Mining, Drilling, Quarrying
Most suitable for drilling downward and inclined blast-holes in medium hard and hard rock with a hardness of f=8~18. An ideal tool for rock drilling operations in small open-pit quarries, mines, water conservancy projects and road building in hilly areas, as well as for secondary blasting in large mines.
Key Features
  • Grouped control mechanism for efficient operation
  • Quick start-up with "air-on, water-on, air-off" mechanism
  • Easy operation and maintenance
  • Stronger flushing power compared to YT24 models
  • Excellent performance in challenging rock conditions
Technical Specifications
Parameter Unit Value
Weight kg ≈27
Length mm 668
Cylinder diameter mm 80
Piston stroke mm 60
Gas consumption L/s ≤80
Drilling frequency Hz ≥37
Impact energy J ≥75.5
Borehole speed mm/min ≥475
Borehole diameter mm Φ34-45
Perforating depth m 5
Shank mm 22×108±1

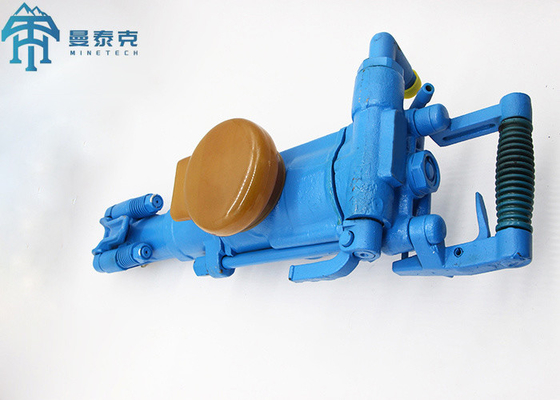

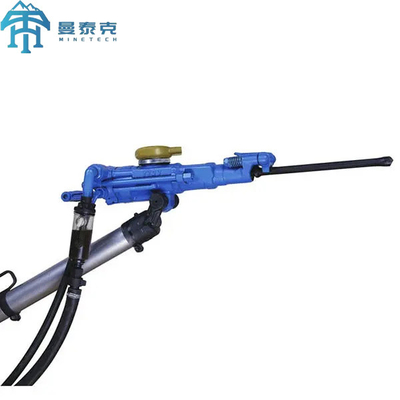

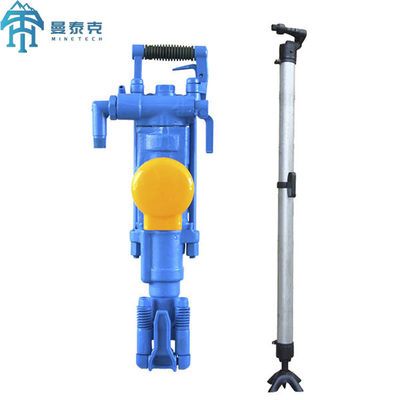

Product Images
YT27 Model Pneumatic Rock Drill with Grouped Control Mechanism for Medium to Hard Rock and Strong Flushing Power 0 YT27 Model Pneumatic Rock Drill with Grouped Control Mechanism for Medium to Hard Rock and Strong Flushing Power 1 YT27 Model Pneumatic Rock Drill with Grouped Control Mechanism for Medium to Hard Rock and Strong Flushing Power 2 YT27 Model Pneumatic Rock Drill with Grouped Control Mechanism for Medium to Hard Rock and Strong Flushing Power 3
