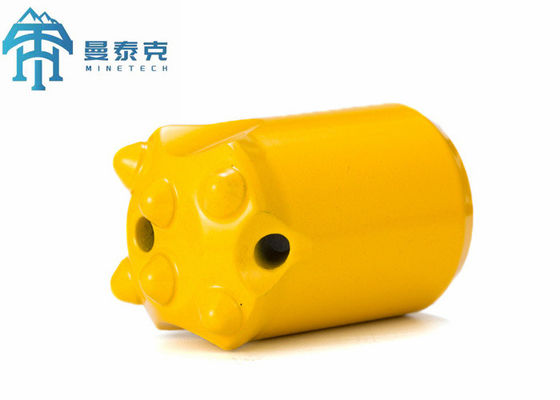

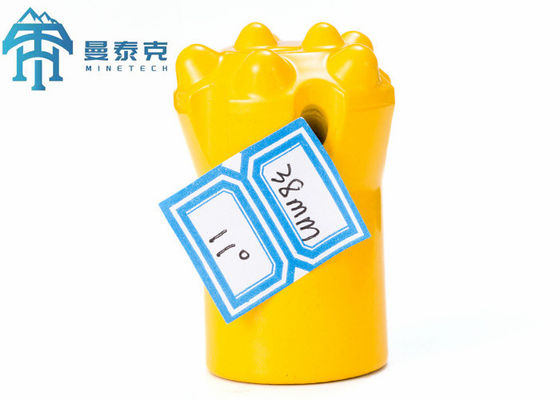

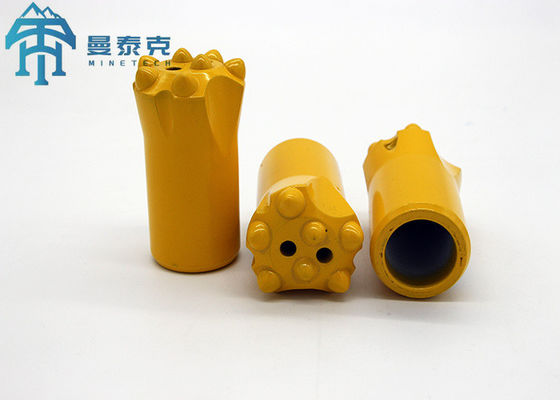

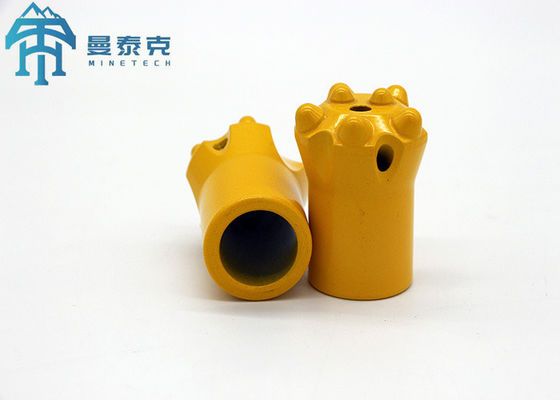

12 Degree Tapered Button Bit with Ballistic Button Shape and 3 Flushing Holes for Small Hole Rock Drilling

12 Degree Tapered Button Bit with Ballistic Button Shape and 3 Flushing Holes for Small Hole Rock Drilling
12 Degree Tapered Button Bit with Ballistic Button Shape and 3 Flushing Holes for Small Hole Rock Drilling
12 Degree Tapered Button Bit with Ballistic Button Shape and 3 Flushing Holes for Small Hole Rock Drilling 12 Degree Tapered Button Bit with Ballistic Button Shape and 3 Flushing Holes for Small Hole Rock Drilling 12 Degree Tapered Button Bit with Ballistic Button Shape and 3 Flushing Holes for Small Hole Rock Drilling 12 Degree Tapered Button Bit with Ballistic Button Shape and 3 Flushing Holes for Small Hole Rock Drilling 12 Degree Tapered Button Bit with Ballistic Button Shape and 3 Flushing Holes for Small Hole Rock Drilling

Large Image :  12 Degree Tapered Button Bit with Ballistic Button Shape and 3 Flushing Holes for Small Hole Rock Drilling

Product Details:
Place of Origin: China
Brand Name: MTH
Certification: ISO9001
Model Number: Tapered button bit
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: $3-$300
Packaging Details: Carton box
Delivery Time: 7 days
Payment Terms: T/T,Western Union
Supply Ability: 5000/Month
Contact Now

12 Degree Tapered Button Bit with Ballistic Button Shape and 3 Flushing Holes for Small Hole Rock Drilling

Description
Product Name: Tapered Button Bit Color: Yellow Or Customized
Bit Tapper: 12° Surface Treatment: Paiting
Size: 38mm Material: Alloy Steel
Bit Type: Short Skirt Flushing Holes: 3
Button Shape: Ballistic Feature: With Hot Zinc-coating
Highlight:

12 Degree Tapered Button Bit

,

Rock Drilling Tapered Button Bit

,

Small Hole Tapered Button Bit

12 Degree Carbide Tungsten Tapered Button Bit Small Hole Rock Drilling Tools
Product Description
Tapered button bit, also known as taper drill bit, is a specialized drilling tool with wide applications in mining, tunneling, and construction engineering. Designed specifically for rock drilling and blasting operations, it works with both handheld and mechanical rock drills.
This tapered button bit is primarily used with pneumatic rock drills and tapered drill rods, connecting via the tapered interface. Ideal for hard rock drilling applications, it excels in mine secondary crushing, bolting, and drifting operations. As an advanced alternative to chisel and cross drill bits, it features tungsten carbide tips and hot-plated skirts for superior drilling performance and extended service life. Available in standard taper angles of 7°, 11° and 12°.
Key Features
  • Tapered interface: Conical connection ensures firm attachment to drill rods, minimizing looseness during operation
  • High-strength materials: Constructed from premium alloy steel with heat treatment for enhanced wear resistance and durability
  • Impact resistant: Engineered to withstand high-intensity impacts and vibrations in demanding rock drilling applications
Technical Specifications
Parameter Value
Product Name Tapered Button Bit
Bit Tapper 11°
Flushing Holes 3
Bit Type Short Skirt
Size 38
Package Wooden Box
Button Number 7
Color Yellow
Material Carbide Steel
Feature With Hot Zinc-coating
Related Bit Parameters
Bit Diameter (mm/inch) Button Number Angle Length (mm)
28 / 11/8" 4 7°/11°/12° 50-65
30 / 1 3/16" 4-6 7°/11°/12° 50-65
32 / 11/4" 4-7 7°/11°/12° 50-65
34 / 111/32" 4-8 7°/11°/12° 50-65
35 / 13/8" 7-8 7°/11°/12° 50-65
36 / 113/32" 4-8 7°/11°/12° 50-65
38 / 11/2" 4-8 7°/11°/12° 50-65
40 / 19/16" 4-8 7°/11°/12° 50-65
41 / 15/8" 4-8 7°/11°/12° 50-65
42 / 121/32" 4-8 7°/11°/12° 50-65
Applications
The tapered button bit's unique design and robust construction make it ideal for demanding applications including:
  • Mining operations
  • Tunnel construction
  • Geological exploration
  • Construction engineering
  • Hydropower projects
  • Railway and highway construction
  • Municipal engineering
  • Environmental protection projects
Available in various specifications including different taper angles, tooth shapes, diameters and lengths to suit diverse drilling requirements.
Company Profile
Hebei Minetech Machinery Technology Co, Ltd is a joint venture enterprise with European partners, located in Shijiazhuang City, Hebei Province, China. We specialize in manufacturing and exporting mining machinery including hydraulic and pneumatic drill machines, roof bolters, and drilling consumables like drill bits and rods.
With over a decade of experience and a team of professional engineers and sales personnel, we provide complete solutions for mining machinery. Our products are exported to more than thirty countries across Southeast Asia, Europe, Africa, and the Americas, establishing a strong international reputation.
