Product Details:
|
Product Name: | Thread Drill Bits,Rock Drill Bit | Diameter: | 102mm |
---|---|---|---|
Efficiency: | Excellent | Weight: | Varies Depending On Size |
Size: | Various Sizes Available | Cutting Structure: | Foring |
Use: | Mining, Quarrying And Tunneling | Color: | Customized |
Highlight: | Drilling Machines Button Drill Bits,102MM-T38 Button Drill Bits,Essential Mining Machinery Button Drill Bits |

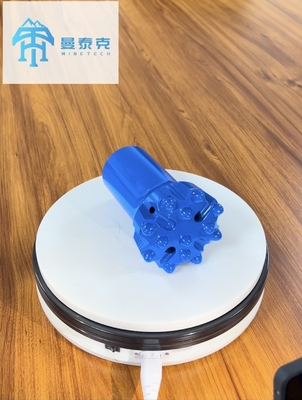

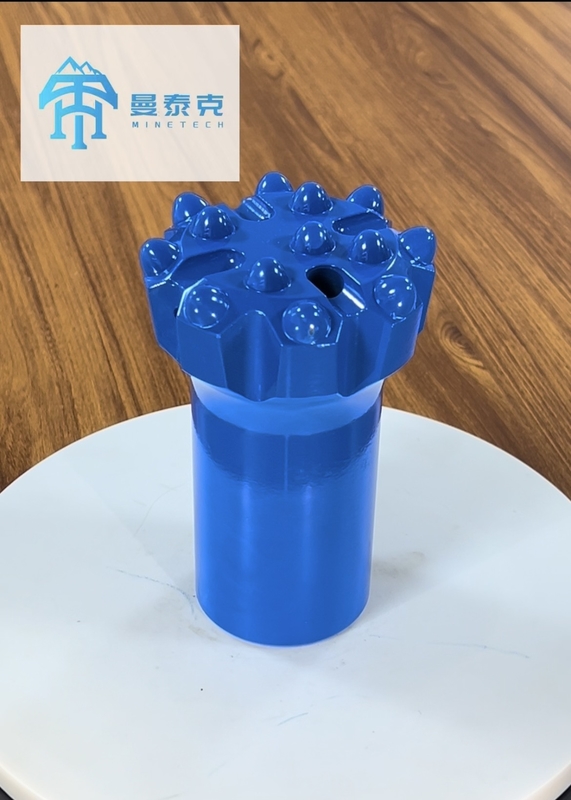

102MM-T38 Button Drill Bits for Drilling Machines Essential Mining Machinery Parts
Product Information:
The threaded drill bit are equipped with the hydraulic drilling jumbo and used for crush rock ,and it is widely used in tunnel construction, large scale mine(open and underground )and large section tunnel advance in metal mine.
Specifications:
Our threaded button bit is made by best quality alloy steel bar and tungsten carbide , it includes R25,R28,R32,R35,R38,T45,T51,ST58,HT60,ST68 and so on. And the head diameter range from 32mm to 127mm.
Note: We can design and manufacture according to customer's requirement of the Bit Diameter,Buttons type and others.
Thread Type | dia | tip size(mm) | flushing holes | weight (kg) | ||
mm | front | gauge | front | side | ||
R32 | 45 | 3*8 | 6*9 | 3 | 0 | 1.1 |
64 | 3*10,1*10 | 6*10 | 3 | 0 | 2.2 | |
76 | 4*11,1*11 | 8*11 | 4 | 1 | 3.5 | |
T38 | 64 | 3*11 | 6*12 | 3 | 0 | 1.8 |
76 | 4*11 | 8*11 | 2 | 0 | 2.4 | |
89 | 4*13 | 8*13 | 2 | 0 | 3.3 | |
T45 | 70 | 4*11 | 8*11 | 2 | 0 | 2.4 |
76 | 4*11 | 8*11 | 2 | 0 | 2.6 | |
89 | 4*13 | 8*13 | 2 | 0 | 4.6 | |
102 | 5*14 | 8*14 | 2 | 0 | 5 | |
T51 | 89 | 4*13 | 8*13 | 2 | 0 | 5.3 |
102 | 4*14 | 8*14 | 2 | 0 | 7.3 | |
115 | 6*14 | 8*14 | 2 | 0 | 9.8 | |
127 | 8*14 | 8*16 | 2 | 1 | 12 |
Company Profile:
Hebei Minetech Machinery Technology Co, Ltd is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province, China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption, like drill bit and drill rod with own factory in Shijiazhuang City.
With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.
Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, South America and so on, and established a good brand and reputation international market.
