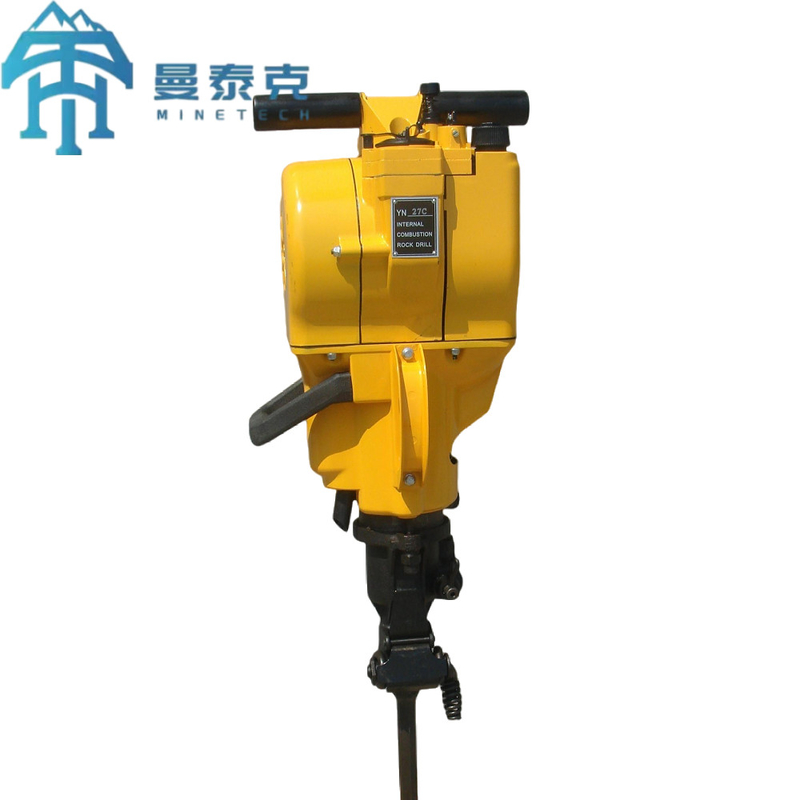

YN27C Petrol Power Rock Drilling Machine Handheld Model For Crushing Stones
Product Information:
The YN27C petrol-powered rock drilling machine is a versatile handheld drilling tool designed for heavy-duty applications in construction, mining, quarrying, and other rugged environments. Here’s a detailed breakdown of its features:
Small Gasoline Engine – Provides the power needed to operate the machine, offering portability without reliance on electricity.
Drill (Percussive Mechanism) – Delivers hammering action for effective rock penetration.
Specification:
|
PRODUCT SPECIFICATION
|
|
The parameter name
|
Unit
|
YN27C
|
|
Weight
|
kg
|
≈27
|
|
Length
|
mm
|
746
|
|
The cylinder diameter
|
mm
|
58
|
|
Piston stroke
|
mm
|
70
|
|
Fuel consumption
|
L/m
|
≤0.12
|
|
borehole speed
|
mm/min
|
≥250
|
|
Perforating depth
|
m
|
6
|
|
Shank
|
mm
|
22×108±1
|
Functions & Application:
Drilling – Creates holes in rock, concrete, and hard surfaces for blasting, anchoring, or construction.
Splitting & Crushing – Can be used with chisels or moil points to break apart rock or concrete.
Pounding & Shoveling – Useful for demolition work or digging in tough conditions.
Other Uses – Can be fitted with different attachments for versatile operations
Package:
Wooden case
Advantage:
Portable & Handheld – No need for external power sources.
Robust & Durable – Designed for tough working conditions.
Multi-functional – Can perform drilling, breaking, and chiseling.
Company Profile:
Hebei Minetech Machinery Technology Co, Ltd is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province,China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption ,like drill bit and drill rod with own factory in Shijiazhuang City.With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.
Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, South America and so on, and established a good brand and reputation ininternational market.
FAQ
|
Q1: What’s your delivery time?
|
|
A: Commonly product need 7 days to assemble, within 3 days if in stock.
|
|
Q2: What’s methods of payments are accepted?
|
|
A: We agree T/T ,L/C ,West Union ,One touch ,Money Gram ,Paypal.
|
|
Q3: What about the Shipments?
|
|
A: Bases on other quantity .We can send it to you by Express ,by Air ,by Sea ,and by Train.Or send the goods to your Chinese agent.
|
|
Q4: How to control the quality?
|
|
A: We should be checking & testing everyone button bit before shipment.
|
|
Q5: Do you agree trial order ?
|
|
A: Yes ,we are welcome your trial order to testing our quality.
|
