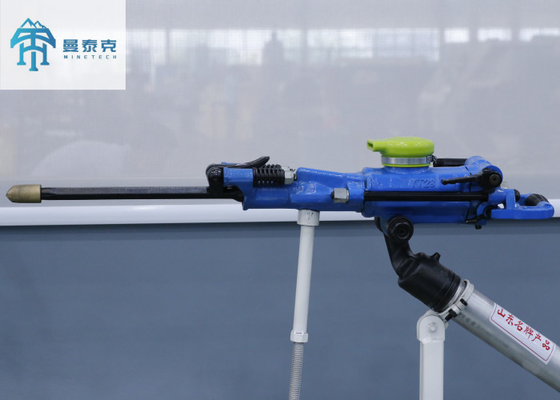

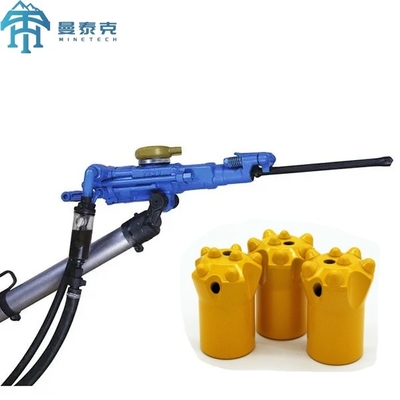

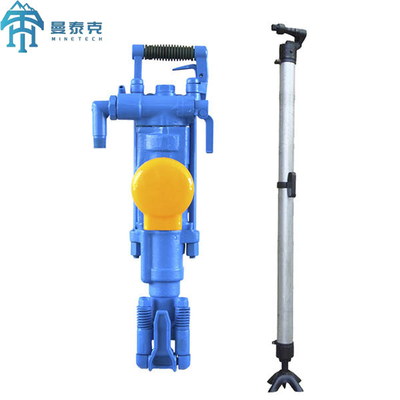

YT28 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine For Hard Rock

YT28 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine For Hard Rock
YT28 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine For Hard Rock
YT28 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine For Hard Rock YT28 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine For Hard Rock YT28 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine For Hard Rock YT28 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine For Hard Rock

Large Image :  YT28 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine For Hard Rock

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: YT28
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 1000 pieces per month
Contact Now

YT28 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine For Hard Rock

Description
Product Name: Quarry Blasting Borehole Mining Electric Hard Rock Drilling Machine Key Words: Y24 Rock Drill
Package: Wooden Box Drill Rod Diameter: H22*108mm
Feature: High Drilling Efficiency Usage: Ore,mining Used,Rock Drilling
Working Air Pressure: 0.5~0.7Mpa Air Compression: Vary With The Models
Highlight:

YT28 pneumatic rock drilling machine

,

air leg rock drilling machine

,

yt 28 rock drill

YT28 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine for Hard Rock





 Instruction

1.The rock drill is a kind of high efficiency air leg rock drill machine.

2.Used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and national defence project facility.

3. When it is matched with Model FY250 Oil reservoir and Model FT160A or FT160B Air-leg , it is suitable for wet drillingunder various of rocks.

4.Global export.



 Safety

a. Ensure that technical safe practices are employed.

b. Pay attention to the position of steel wire ring clamp, if found it fray,change it.

c. Check steel wire ring clamp whether or not abrase, if so, change another at once.

d. Do not allow use low burning point and easy explosion lubricating oil.





Specifications:



PRODUCT SPECIFICATION
The parameter name Unit The parameter value
Weight kg ≈26
Length mm 661
The cylinder diameter mm 80
Piston stroke mm 60
Gas consumption L/s ≤55
Drilling and frequency Hz ≥34
Impact energy J ≥70
borehole speed mm/min ≥475
The borehole diameter mm Φ34-42
Perforating depth m 5
Shank mm 22×108±1

YT28 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine For Hard Rock 0YT28 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine For Hard Rock 1YT28 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine For Hard Rock 2

Tag:

661mm Rock Drilling Machine,

FT160B pneumatic breaker hammer,

air leg pneumatic breaker hammer
