YT28 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine with H22*108mm Drill Rod for Wet Drilling in Railway Construction

YT28 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine with H22*108mm Drill Rod for Wet Drilling in Railway Construction
YT28 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine with H22*108mm Drill Rod for Wet Drilling in Railway Construction
YT28 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine with H22*108mm Drill Rod for Wet Drilling in Railway Construction YT28 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine with H22*108mm Drill Rod for Wet Drilling in Railway Construction YT28 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine with H22*108mm Drill Rod for Wet Drilling in Railway Construction YT28 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine with H22*108mm Drill Rod for Wet Drilling in Railway Construction

Large Image :  YT28 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine with H22*108mm Drill Rod for Wet Drilling in Railway Construction

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: YT28
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 1000 pieces per month
Contact Now

YT28 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine with H22*108mm Drill Rod for Wet Drilling in Railway Construction

Description
Product Name: Quarry Blasting Borehole Mining Electric Hard Rock Drilling Machine Key Words: Y24 Rock Drill
Package: Wooden Box Drill Rod Diameter: H22*108mm
Feature: High Drilling Efficiency Usage: Ore,mining Used,Rock Drilling
Working Air Pressure: 0.5~0.7Mpa Air Compression: Vary With The Models
Highlight:

YT28 pneumatic rock drilling machine

,

air leg rock drilling machine

,

yt 28 rock drill

YT28 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine For Hard Rock
The YT28 is a high efficiency air leg rock drill machine designed for blasting holes and drilling works in quarries, railway construction, water conservancy projects, and national defense facilities.
Key Features
  • Designed for wet drilling when matched with Model FY250 Oil reservoir and Model FT160A/B Air-leg
  • Suitable for various rock conditions
  • Global export capabilities
Safety Instructions
  • Always employ technical safe practices
  • Regularly inspect steel wire ring clamp position and condition - replace if frayed or abraded
  • Never use low burning point or explosive lubricating oils
Technical Specifications
Parameter Unit Value
Weight kg ≈26
Length mm 661
Cylinder diameter mm 80
Piston stroke mm 60
Gas consumption L/s ≤55
Drilling frequency Hz ≥34
Impact energy J ≥70
Borehole speed mm/min ≥475
Borehole diameter mm Φ34-42
Perforating depth m 5
Shank mm 22*108±1
Product Images

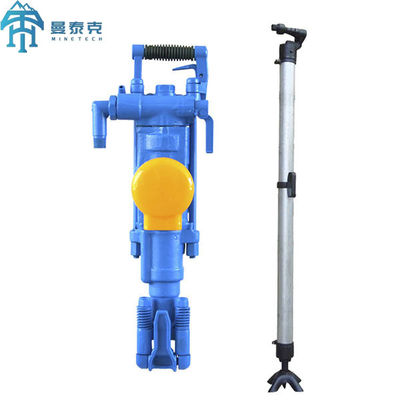

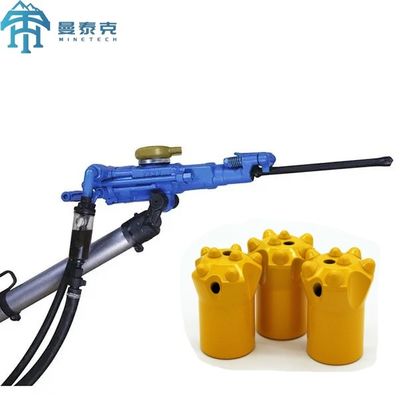

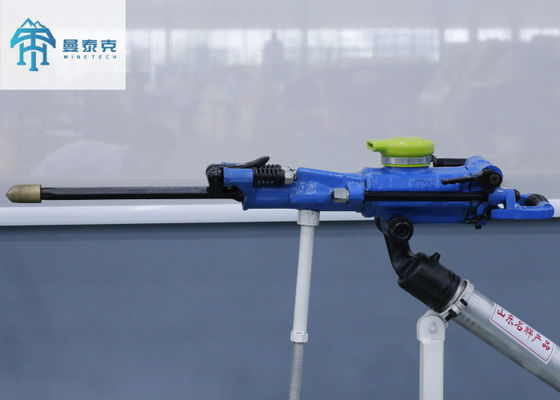

YT28 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine with H22*108mm Drill Rod for Wet Drilling in Railway Construction 0 YT28 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine with H22*108mm Drill Rod for Wet Drilling in Railway Construction 1 YT28 Portable Pneumatic Hand Held Air Leg Rock Drilling Machine with H22*108mm Drill Rod for Wet Drilling in Railway Construction 2
