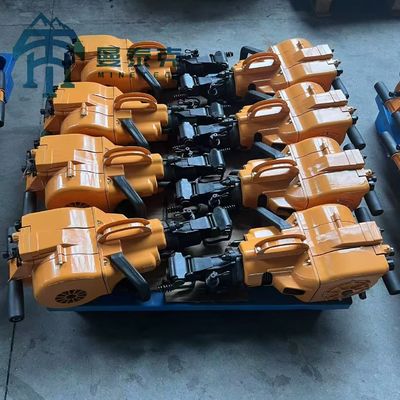

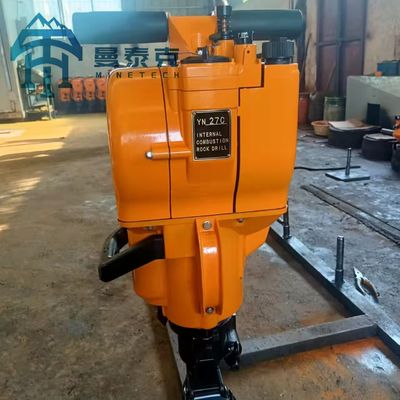

YN27C Rock Drill Portable Gasoline Rock Drilling Machine with High Drilling Efficiency Hydraulic Chuck for Blast Hole Drilling

Large Image : YN27C Rock Drill Portable Gasoline Rock Drilling Machine with High Drilling Efficiency Hydraulic Chuck for Blast Hole Drilling

Product Details:

Place of Origin:	CHINA
Brand Name:	MTH
Certification:	ISO 9001
Model Number:	YN27C

Payment & Shipping Terms:

Minimum Order Quantity:	50 pcs
Price:	Negotiable
Packaging Details:	wooden case
Delivery Time:	10-15 days
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	1000 pieces per month

Contact Now

YN27C Rock Drill Portable Gasoline Rock Drilling Machine with High Drilling Efficiency Hydraulic Chuck for Blast Hole Drilling

Description

Usage:	Ore,Coal,Water Well,mining Used,Rock Drilling	Weight:	27kg
Type:	Rotary Drilling Rig,ROCK DRILLING RIG	Product Name:	YN27C Rock Drill
Color:	Yellow	Application:	Blast Hole Drilling And Breaking,pavement Breaking,drill Rig,building Demolition
Feature:	Hydraulic Chuck,High Drilling Efficiency
Highlight:	YN27C Gasoline Rock Drilling Machine , Mining Demolition Rock Drill Machine , Demolition Gasoline Rock Drilling Machine

Portable Rock Core Drilling Machine YN27C Mining Demolition Jack Hammer Gasoline

Product Description

The YN27C Inter Combustion Rock Drill is designed for operation in challenging environments including high mountains, plains, and extreme temperature conditions (-40°C to 40°C). This portable solution is ideal for locations without power or water supply, and where air compression equipment is unavailable.

Main Characteristics

Simple operation - just turn the handle to activate
High efficiency drilling with significant time and labor savings
Premium drilling tools suitable for sites without power or pressure equipment
Capable of drilling vertical downward holes (max depth 6m) and upward holes at angles less than 45°
Lightweight design (27kg) for easy transportation

Technical Specifications

Specification	Value
Weight of main machine	27kg
Overall dimensions (LWH)	746315229mm
Cylinder diameter * stroke of piston	Φ58*70mm
Rotation speed of engine	≥2450rpm
Displacement of engine piston	185cm³
Type of carburetor	Hand needle valve, float-less type
Ignition system	Controllable silicon, contact-less system
Drilling speed (mean value of five holes)	≥250mm/min
Drilling hole diameter	Φ28-42mm
Max drilling depth	6m
Fuel consumption	≤0.12L/m
Tank capacity	≥1.5 liter
Drill rod and breaker shank	Hex22*108mm
Rotating speed of drill rod	≥200 rounds/min
Clearance of spark plug	0.5-0.7mm

Product Images
