Product Description:

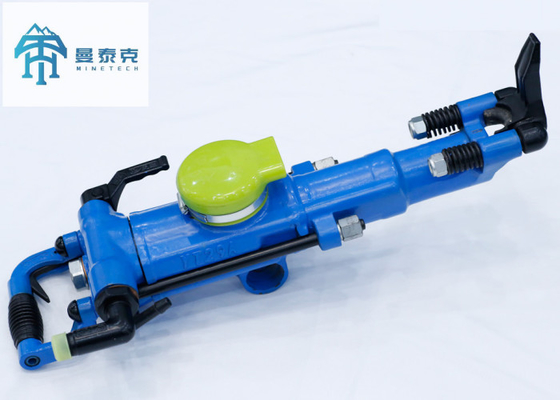

YT27 air leg drill is highly efficient and lightweight, suitable for wet drilling down and tilting holes on medium hard or hard (F =8-18) rocks. Drilling hole diameter 34-45 mm, effective depth of drilling up to 5 m. It has the characteristics of strong blowing-cleaning hole function and large torque, which is obviously better than similar products.

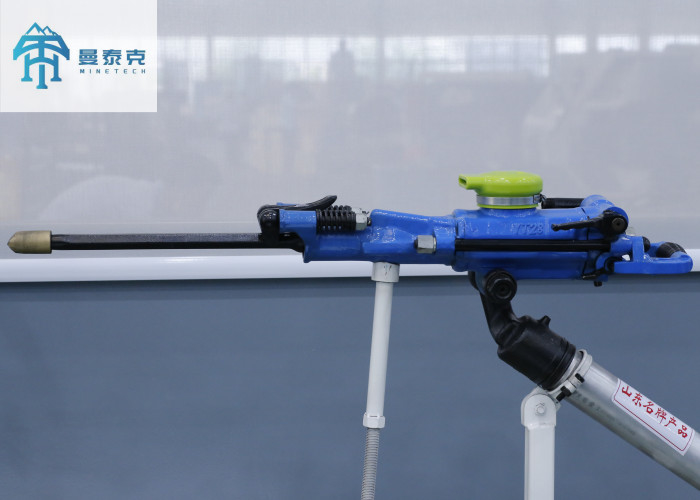

The product is mainly used in drilling operation of mine tunneling,and it's widely used drilling tools in railways, water conservancy construction and national defense construction areas,and it can be matched with FY250 model oil injector and FT160A (OR FT160B, FT160C, FT170 ) model air leg,can do wet rock drilling for medium hard and high hard,level of rock drilling and tilt boreholes.Unloaded air leg also be used on trolley.
Features:
1. Easily-accessible position throttle
2. Integral muffler,lower noise
3.Reliable structure,easy and stable operation
4.Hand-held and air legs rock drill accessible.
5.Provide the ultimate combination of performance and economy. Smart,and durable.
Technical Parameters:
| Product Attribute |
Value |
| Product Name |
Rock Drilling Machine |
| Shank Dimensions |
22×108 Mm±108mm |
| Power Type |
Pneumatic, Air Compressor |
| Air Pipe (Inner Dia) |
25mm |
| Air Pressure |
0.4—0.63MPa |
| Air Consumption |
≤88 L/S(0.63MPa) |
| Weight |
27kg |
| Machine Type |
Drilling Tools |
| Impact Frequency |
≥39Hz(0.63MPa) |
| Condition |
New |
| Piston Stroke |
60mm |
| Model |
Working Pressure |
Air Consumption |
Shank Size |
Net
Weight
|
Gross
Weight
|
Packaging Size |
| MPa |
Bar |
m3/min |
cfm |
(mm) |
(mm) |
(mm) |
(L×W×H) (mm) |
| Y18 |
0.4 |
4 |
1.4 |
49 |
Hex22*108 |
17 |
20 |
590×280×180 |
| Y19 |
0.4 |
4 |
1.9 |
67 |
Hex22*108 |
18 |
21 |
690×300×190 |
| Y20 |
0.4 |
4 |
1.7 |
60 |
Hex22*108 |
18 |
21 |
590×280×180 |
| Y24 |
0.4-0.5 |
4-5 |
2.1-2.6 |
74-92 |
Hex22*108 |
24 |
27 |
740×310×220 |
| Y26 |
0.5 |
5 |
3.2 |
113 |
Hex22*108 |
26 |
29 |
780×310×220 |
| YT24 |
0.5 |
5 |
2.8 |
99 |
Hex22*108 |
24 |
27 |
740×310×220 |
| YT28 |
0.5 |
5 |
3.8 |
134 |
Hex22*108 |
26 |
29 |
740××310×220 |
Applications:
Hand-held Rock Drill YT27 is widely used for dry drilling in the medium-hard and hard rock. It is widely used in metallurgy, coal,
railway, transportation, water conservancy construction and national defense stone works, etc. It is suitable for drilling and
blasting under various of rocks at any direction angles.
Packing and Shipping:
Packing: The Rock Drill and the Pusher leg will be packed Separatly in a Carton Box
Shipping: If QTY small we will send by Express, if QTY big we will send by sea, the shipping cost will be based on the qty customers need.
Company Profile
Hebei Minetech Machinery Technology Co, Ltd. is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province,China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption, like drill bit and drill rod with own factory in Shijiazhuang City.
With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.
Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, South America and so on, and established a good brand and reputation international market.
