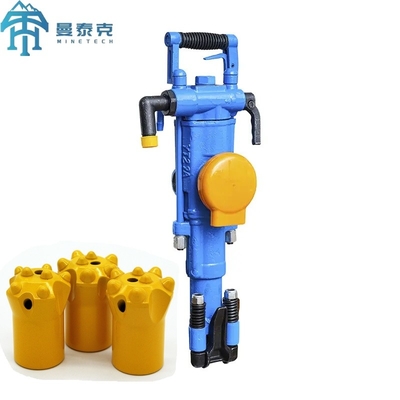

YT29 Rock Drilling Machine Air Leg Rock Drill Air Compressor Pneumatic Jack Hammer Heavy Duty Drill

YT29 Rock Drilling Machine Air Leg Rock Drill Air Compressor Pneumatic Jack Hammer Heavy Duty Drill
YT29 Rock Drilling Machine Air Leg Rock Drill Air Compressor Pneumatic Jack Hammer Heavy Duty Drill YT29 Rock Drilling Machine Air Leg Rock Drill Air Compressor Pneumatic Jack Hammer Heavy Duty Drill YT29 Rock Drilling Machine Air Leg Rock Drill Air Compressor Pneumatic Jack Hammer Heavy Duty Drill YT29 Rock Drilling Machine Air Leg Rock Drill Air Compressor Pneumatic Jack Hammer Heavy Duty Drill

Large Image :  YT29 Rock Drilling Machine Air Leg Rock Drill Air Compressor Pneumatic Jack Hammer Heavy Duty Drill

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: YT29
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 5000 pieces per month

YT29 Rock Drilling Machine Air Leg Rock Drill Air Compressor Pneumatic Jack Hammer Heavy Duty Drill

Description
Name: Pneumatic Portable Drilling Machine/Hand Held Rock Drill/jack Hammer Type: Rotary Drilling Rig,Core Drilling Rig
Feature: High Drilling Efficiency Drilling Depth: 5-50m
Key Selling Points: Easy To Operate Usage: Ore,Coal,mining Used,Rock Drilling
Weight: 28kg
Highlight:

YT29 Rock Drilling Machine

,

Pneumatic Rock Drilling Machine

,

YT29 Air Leg Rock Drill

Factory Price YT29 Rock Drilling Machine air Leg Rock Drill air Compressor Pneumatic Jack Hammer Heavy Duty Drill



Production

YT series Air Leg Rock Drill for drilling and blasting

A rock drill is a tool for directly mining stone.It drills out gunholes on rock formations so that explosives can be placed to blast the rocks to mine stone or other stone works.In addition, rock drills can also be used as spoilers to break hard layers such as concrete.



Features

1 Safer The intake pipe is nut-type locked, which is not easy to fall off and safer;

2 More Convenient The inlet elbow adopts a rotating lock structure, which can be easily disassembled and transported without the help of tools.;

3 Smoother Increase torque by 3%-5%, reduce stuck drilling, improve continuous working time, and effectively improve rock drilling efficiency;

4 More stable Precise shape and position tolerance design, advanced heat treatment and forging processing technology, to ensure stable product performance, fewer failures, and longer service life.



Specifications:

PRODUCT SPECIFICATION
The parameter name Unit The parameter value
Weight kg ≈27
Length mm 668
The cylinder diameter mm 80
Piston stroke mm 60
Gas consumption L/s ≤80
Drilling and frequency Hz ≥37
Impact energy J ≥75.5
borehole speed mm/min ≥475
The borehole diameter mm Φ34-45
Perforating depth m 5
Shank mm 22×108±1



Company Profile:

Hebei Minetech Machinery Technology Co, Ltd. is an joint venture enterprise with Europe Partner, which is located in Shijiazhuang City, Hebei Province,China. Our company is specialized in manufacturing and exporting of mining machinery, such as hydraulic and pneumatic drill machine, roof bolter and drilling consumption, like drill bit and drill rod with own factory in Shijiazhuang City.

With our rich expenience for over a decade and with professional engineers andsales team, we focus on providing complete solutions for mining machinery.

Target markets is gradually shifted from domestic market to international market, products are exported to more than thirty countries and regions, including Southeast Asia, the United States, Germany, Britain, South Africa, Poland, Russia, Middle Asia, South America and so on, and established a good brand and reputation international market.

YT29 Rock Drilling Machine Air Leg Rock Drill Air Compressor Pneumatic Jack Hammer Heavy Duty Drill 0YT29 Rock Drilling Machine Air Leg Rock Drill Air Compressor Pneumatic Jack Hammer Heavy Duty Drill 1YT29 Rock Drilling Machine Air Leg Rock Drill Air Compressor Pneumatic Jack Hammer Heavy Duty Drill 2YT29 Rock Drilling Machine Air Leg Rock Drill Air Compressor Pneumatic Jack Hammer Heavy Duty Drill 3
