Product Description:
Jack Hammer Y series of pneumatic rock driller are mainly used in mine, railway, water irrigation works and quarrying works to drill holes. Rock Drill Jack Hammer is suitable for wet or dry drilling in all kinds of rocks. The jack hammer driller is hand held type for perpedicular and air leg type titling direction.

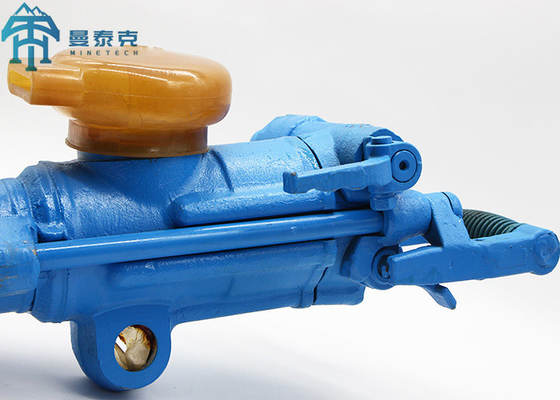

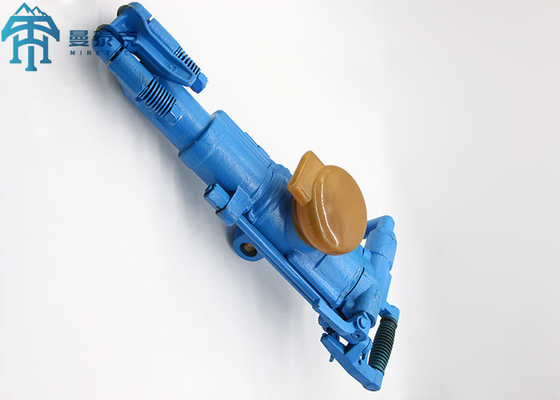

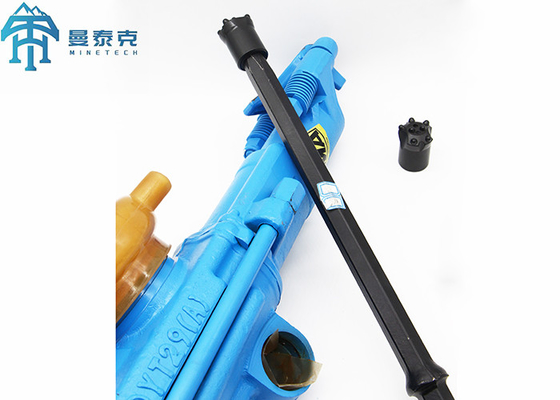

YT29A air leg rock drilling machine can be used with the air leg FT160A,FT160B . It is also installed on drill rig or drill frame; meanwhile, we provide a transparent lubricator FY250 to observe the oil level and adjust the oil quantity in order to make sure a favorable lubrication.
It is the indispensable tool in mining, railway, transportation, water conservancy construction and earthwork projects.
Features:
1. Easily-accessible position throttle
2. Integral muffler,lower noise
3.Reliable structure,easy and stable operation
4.Hand-held and air legs rock drill accessible.
5.Provide the ultimate combination of performance and economy. Smart,and durable.
Technical Parameters:
| Product |
Rock Drilling Machine |
| Shank dimensions(hex×length) |
22×108 Mm±108mm |
| Weight |
29kg |
| Air Pressure |
0.4—0.63MPa |
| Warranty |
1 Year |
| Application |
Surface Mining, Quarrying, Construction |
| Power Type |
Pneumatic,Air Compressor |
| Air consumption |
≤88 L/S(0.63MPa) |
| Water pipe (inner dia) |
13mm |
| Piston stroke |
60mm |
| Condition |
New |
Applications:
Pusher legs and stoper rock drills cover all construction, tunnelling and mining applications in different rock formations. They are robust designed, with high impact energy and low air consumption. All of the rock drills have water flushing, rifle bar rotation and the pusher leg control is placed at the back head of the rock drill. An in-line lubricator is included in the delivery of each rock drill. Together with the appropriate pusher leg, the rock drill forms an attractive and cost effective drilling unit. widely used in coal mining,tunnelling and quarry etc.
Packing and Shipping:
Packing: The Rock Drill and the Pusher leg will be packed Separatly in a Carton Box
Shipping: If QTY small we will send by Express, if QTY big we will send by sea, the shipping cost will be based on the qty customers need.
