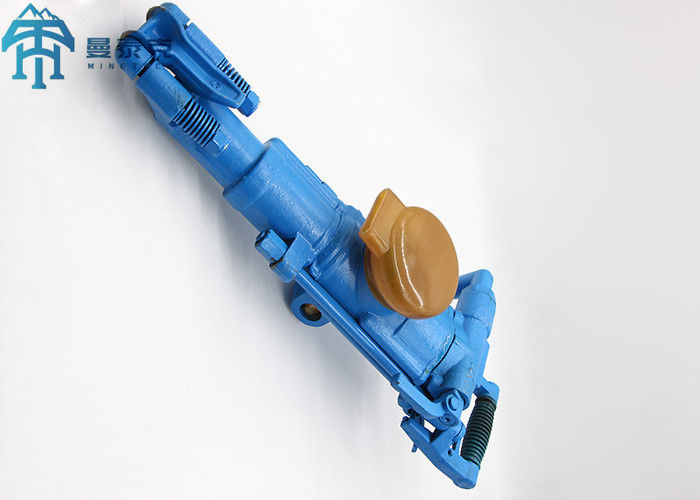

Small Drilling Mining YT27 Air Leg Pneumatic Rock Drill with High Drilling Efficiency

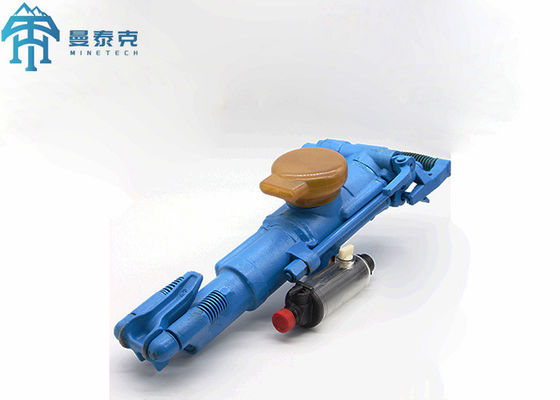

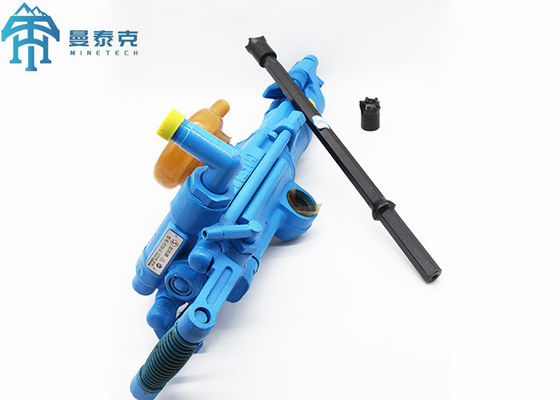

Large Image : Small Drilling Mining YT27 Air Leg Pneumatic Rock Drill with High Drilling Efficiency

Product Details:

Place of Origin:	CHINA
Brand Name:	MTH
Certification:	ISO 9001
Model Number:	YT27

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	Negotiable
Packaging Details:	wooden case
Delivery Time:	10-15 days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	3000 pieces per month

Contact Now

Small Drilling Mining YT27 Air Leg Pneumatic Rock Drill with High Drilling Efficiency

Description

Usage:	Ore,Coal,mining Used,Rock Drilling	Weight:	28kg
Type:	Rotary Drilling Rig,Core Drilling Rig,ROCK DRILLING RIG	Name:	YT27
Color:	Green，Blue	Application:	Blast Hole Drilling And Breaking,pavement Breaking,building Demolition
Drilling Diameter:	34-42mm	Feature:	Hydraulic Chuck,High Drilling Efficiency
Highlight:	Jack Hammer Compressor Pneumatic Drill , Jack Hammer Mining Rock Drill , Pneumatic Rock Drill Jack Hammer

Small Drilling Mining YT27 Air Leg Compressor Pneumatic Rock Drill Jack Hammer

The YT series rock drilling machine is a high-efficiency pneumatic rock drill designed for tunnel excavation, stone engineering, mining operations, and various rock drilling applications. This essential equipment is widely used in railway, highway, metallurgy, coal mining, water conservancy, hydro power construction, and national defense projects.

The YT27 model excels in drilling horizontal or inclined blast holes in medium-hard to hard rocks (f=8~18), as well as vertical anchor holes in ceilings. It accommodates hole diameters of 34-45mm with drilling depths up to 5 meters.

Key Features:

Optimized for wet drilling in medium-hard to hard rock formations
Grouped control mechanism enables quick startup with automatic "air on, water on/off" functionality for easy operation and maintenance
Durable components with high interchangeability and reliable performance
Superior efficiency, powerful flushing capability, and exceptional torque compared to similar products

Technical Specifications:

Parameter	Unit	Value
Weight	kg	≈27
Length	mm	668
Cylinder diameter	mm	80
Piston stroke	mm	60
Gas consumption	L/s	≤80
Drilling frequency	Hz	≥37
Impact energy	J	≥75.5
Borehole speed	mm/min	≥475
Borehole diameter	mm	Φ34-45
Perforating depth	m	5
Shank	mm	22*108±1
