YN27C Hand Held Rock Drilling Machine Petrol Jack Hammer For Rock Breaking

YN27C Hand Held Rock Drilling Machine Petrol Jack Hammer For Rock Breaking
YN27C Hand Held Rock Drilling Machine Petrol Jack Hammer For Rock Breaking
YN27C Hand Held Rock Drilling Machine Petrol Jack Hammer For Rock Breaking YN27C Hand Held Rock Drilling Machine Petrol Jack Hammer For Rock Breaking YN27C Hand Held Rock Drilling Machine Petrol Jack Hammer For Rock Breaking YN27C Hand Held Rock Drilling Machine Petrol Jack Hammer For Rock Breaking

Large Image :  YN27C Hand Held Rock Drilling Machine Petrol Jack Hammer For Rock Breaking

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: YN27C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $300-$500
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: Western Union,T/T,MoneyGram
Supply Ability: 1000 pieces per month
Contact Now

YN27C Hand Held Rock Drilling Machine Petrol Jack Hammer For Rock Breaking

Description
Product Name: Pneumatic Rock Drill Model No: YN27C
Drilling Hole Diameter: 32MM Drilling Depth: 5m
Weight: 39kgs Size: 760*360*270mm
Color: Yellow Or Customized Usage: Mining ,Rock Drilling
Package: Wooden Box Power Type: Gasoline
Highlight:

Petrol Jack Hammer YN27C

,

YN27C Rock Drilling Machine

,

Rock Drilling Machine Rock Breaking

YN27C Hand Held Rock Drilling Machine Petrol Jack Hammer For Rock Breaking


Description:

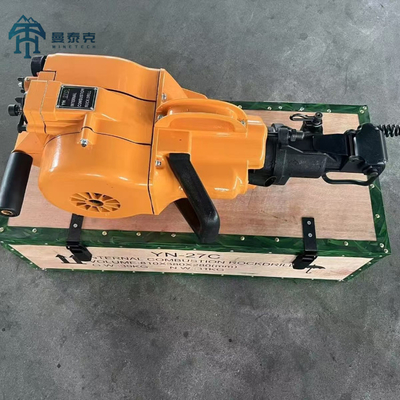

 YN27C Hand-Held Gasoline Rock Drill/ Petrol Rock Drill Jack Hammer/Rock Drilling is a hand-operated rock-drilling tool, composed of a small gasoline engine, an air compressor and rock drill.
Its outstanding characteristic is that the stated functions can be realized by changing the hand handle according to the requirements without changing the inner parts of the machine head. Available for drilling, splitting breaking, ramming, shoveling. And widely used in mining ,road construction, quarrying and national defense construction.
With turning the swing arm to running-or-stop rotation plumbum, the machine can be converted into a breaker or a hammer, for breaking, digging, splitting or ramming. The machine is suited to build of bridge, road, power station, geological explortation etc.
YN27C rock drill is a hand-rock drilling tool which integrates small gasoline engine,compressor and rock drill.
It is easy to be carried along,It is stuited to work on high mountains, plains, hot and cold area with no power and no water supply and air compressing equipments, and especially suits the projects that the machine has to be carried at any time and in any area.

Specification:


Model
YN27C
Displacement of engine
185 cm³
Rotation speed of engine
2450r/min
Idle speed
200 r/min
End of drill rod size
22×108mm
Hole diameter range
26-46mm
Max drilling depth
Max depth
Fuel tank capacity
1.14L
Drilling speed
≥250mm/min
Oil consumption rate
0.12L/m

The mixture of gasoline and lubricating oil
9:1
Clearance of spark plug
0.5-0.7mm
Impact energy
≥20 J
Weight
27kg
Dimension
760*330*230mm


Advantage:


Handheld YN27C internal combustion rock drill Save time and effort and chisel fast

YN27C internal combustion rock drill has the functions of drilling, splitting, crushing, ramming, shoveling and so on. It can drill holesin rock vertically down, horizontally down to less than 45° and vertically down to the deepest 6 meters. YN27C is widely used in mining, road construction, quarrying, national defense engineering, etc.
YN27 hand-held internal combustion rock drill whether in high mountains or flat land; It can be operated in hot +40°C or cold -40°C. This machine has a wide range of ad
aptability.


Company Profile:


Hebei Minetech Machinery Technology Co., Ltd is located in Shijiazhuang city, Hebei province. Minetech is specialized in producing and exporting rock drilling tools. We manufacture rock drilling tools, including drilling machine, button bits and drilling rods.

Minetech treasure each opportunity in cooperating with our customers. Minetech's sales team will allways stick to our original beliefs to offer all customers the best service and have been accomplishing total customer satisfaction by competitive prices, superior production control, strict quality assurance and punctural delivery.

With our rich experience for years and professional engineers, Minetech focus on providing complete solutions for your rock drilling tools.


YN27C Hand Held Rock Drilling Machine Petrol Jack Hammer For Rock Breaking 0YN27C Hand Held Rock Drilling Machine Petrol Jack Hammer For Rock Breaking 1YN27C Hand Held Rock Drilling Machine Petrol Jack Hammer For Rock Breaking 2

YN27C Hand Held Rock Drilling Machine Petrol Jack Hammer For Rock Breaking 3
