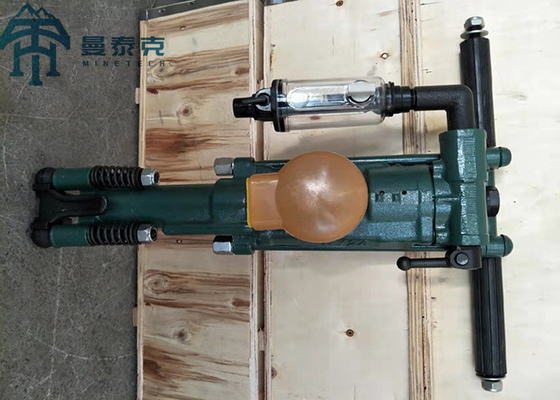

Air Leg YT24 Pneumatic Rock Drilling Machine For Small Hole Drilling

Air Leg YT24 Pneumatic Rock Drilling Machine For Small Hole Drilling
Air Leg YT24 Pneumatic Rock Drilling Machine For Small Hole Drilling
Air Leg YT24 Pneumatic Rock Drilling Machine For Small Hole Drilling Air Leg YT24 Pneumatic Rock Drilling Machine For Small Hole Drilling Air Leg YT24 Pneumatic Rock Drilling Machine For Small Hole Drilling Air Leg YT24 Pneumatic Rock Drilling Machine For Small Hole Drilling

Large Image :  Air Leg YT24 Pneumatic Rock Drilling Machine For Small Hole Drilling

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: YT24
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: $3-$300
Packaging Details: Wooden case
Delivery Time: 7-15 woring days
Payment Terms: T/T,Western Union,L/C
Supply Ability: 2000 sets per week
Contact Now

Air Leg YT24 Pneumatic Rock Drilling Machine For Small Hole Drilling

Description
Name: Rock Drill Machine Type: Drilling Tools
Model: YT 24 Application: It Is Best Suited For Use In Medium And Small Mines.
Weight: 24kg Advantage: Light Weight, Low Noise, High Efficiency, Good Economic Results.
Length: 668mm Shank: 22×108±1
Perforating Depth: 5m Piston Stroke: 60mm
Highlight:

YT24 rock drilling machine

,

Air Leg rock drilling machine

,

Small Hole rock drilling equipment

Air Leg YT24 Pneumatic Rock Drilling Machine for Small Hole Drilling


Product Information:


This Series pneumatic rock drill apply in hard rock on the rock drill operation,it has strong adaptability to the working conditions.The product is energy efficiency, Its components has long life and durable.The machice can be generally used with the same type,it can greatly reduce the customer loss for spare part replacement.

Y24 rock drill is widely used for dry drilling in the medium-hard and hard rock(f=8-18). It's suitable for drilling works in surface mine, quarry for boulder blasting and other dry drilling working.FY200B oil reservior is matched with this rock drill to ensure the fine lubrication.


Specifications:


PRODUCT SPECIFICATION
The parameter name Unit The parameter value
Weight kg ≈24
Length mm 668
The cylinder diameter mm 80
Piston stroke mm 60
Gas consumption L/s ≤66.7
Drilling and frequency Hz ≥31
Impact energy J ≥75.5
borehole speed mm/min ≥475
The borehole diameter mm Φ34-42
Perforating depth m 5
Shank mm 22×108±1


Features:


Light weight, low noise, high efficiency, good economic results.


Application:


It is best suited for use in medium and small mines.


Air Leg YT24 Pneumatic Rock Drilling Machine For Small Hole Drilling 0

Air Leg YT24 Pneumatic Rock Drilling Machine For Small Hole Drilling 1

Air Leg YT24 Pneumatic Rock Drilling Machine For Small Hole Drilling 2

Air Leg YT24 Pneumatic Rock Drilling Machine For Small Hole Drilling 3

Tag:

661mm Rock Drilling Machine,

FT160B pneumatic breaker hammer,

air leg pneumatic breaker hammer
