Product Details:
|
Product Name: | Shank Adapter | Key Word: | Shank Adapter COP1838 T38 |
---|---|---|---|
Thread: | T38 | Length: | 525mm |
Diameter: | 38mm | Material: | Alloy Steel |
Use: | Masonry Drilling,rock Drilling, Drilling Holes,marble Granite Title | Process: | CNC Machining + Heattreatment |
Certificate: | ISO9000 | Quality: | Stable And Reliable |
Highlight: | T38 thread shank adapter,underground drilling shank adapter,COP1838 shank adapter |
Attribute | Value |
---|---|
Product name | Shank adapter |
Key word | Shank Adapter COP1838 T38 |
Thread | T38 |
Length | 525mm |
Diameter | 38mm |
Material | Alloy Steel |
Use | Masonry Drilling, rock drilling, Drilling Holes, marble granite tile |
Process | CNC machining + Heat treatment |
Certificate | ISO9000 |
Quality | Stable And Reliable |

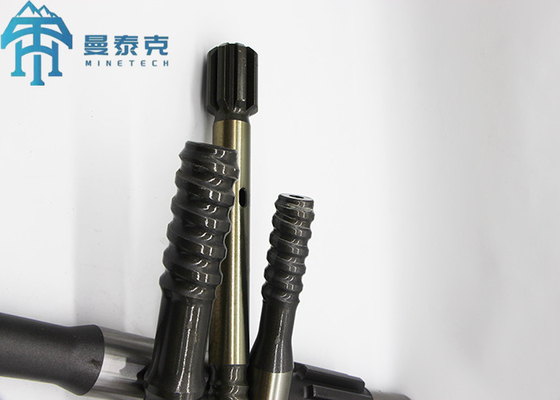

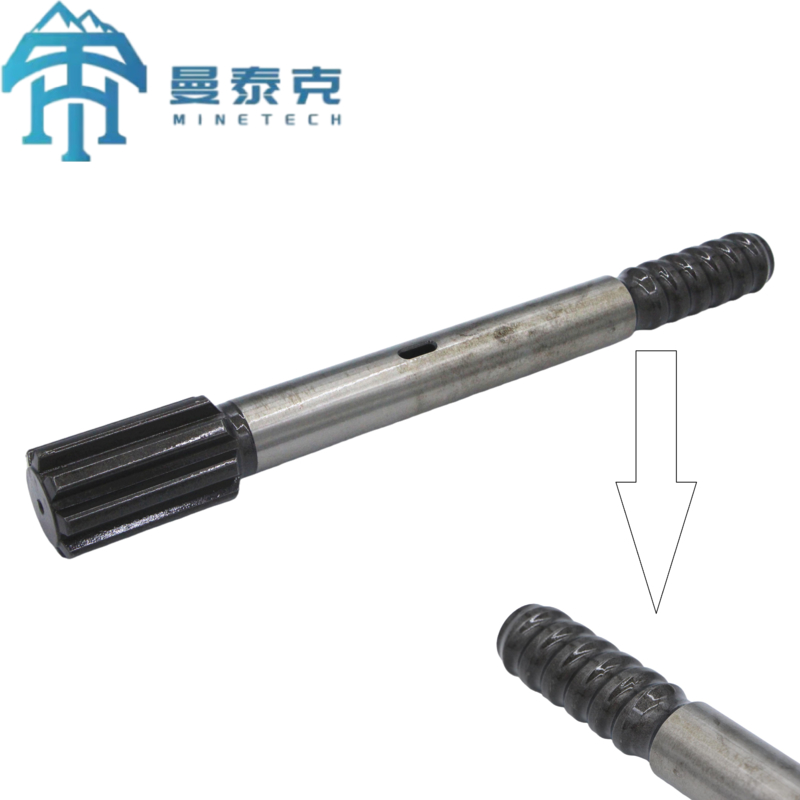

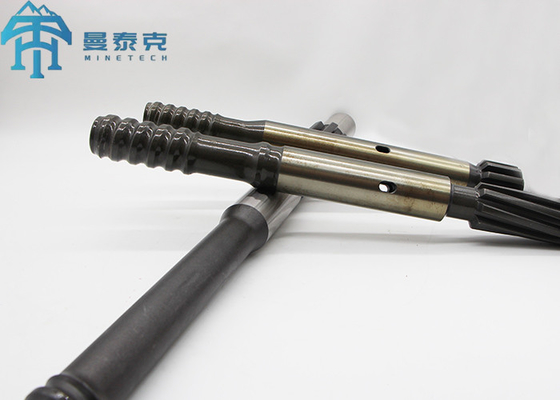

The Underground Engineering Drilling Tool Shank Adapter COP1838 T38 Thread is designed for transmitting power between drill machines and drill stems. It plays a crucial role in transferring power from rock drills to the drill stems.
In rock drilling, top hammer shank adapters are essential as they directly bear the impact energy and torque of the rock drill. The adapter transfers energy from the drill rig to the drill rod, with one end connecting to the drill rig and the other to the drill rod, enabling effective drilling operations.
Item | Thread | Length (mm) | Diameter (mm) | Weight (kg) |
---|---|---|---|---|
COP 1238 | T38 (1 1/2") | 500 | 38 | 4.4 |
COP 1440, COP 1838 | R32 (1 1/4") | 640 | 52 | 9.1 |
COP 1440, COP 1838 | R38 (1 1/2") | 640 | 52 | 8.9 |
COP 1440, COP 1550, COP 1838 | T38 (1 1/2") | 525 | 52 | 5.9 |
COP 1440, COP 1550, COP 1638, COP 1838, COP 2238 | T38 (1 1/2") | 435 | 38 | 3.8 |
COP 1638, COP 1838AW | T38 (1 1/2") | 525 | 38 | 4.5 |
The shank adapter plays a critical role across multiple industries, enabling efficient rock excavation, material extraction, and infrastructure development:
For additional safety, especially for international shipments, the boxed Shank Adapters are securely packed into reinforced wooden cases. These cases are constructed from hardwood or plywood, ensuring superior strength and resistance to rough handling, moisture, and other potential hazards during long-distance transportation.
Minetech provides technical support and service to ensure the best performance of our products. Our technical support team is available to answer your questions and provide assistance with installation and maintenance. We also maintain a comprehensive library of online resources, including user manuals, software updates, and product information.
Hebei Minetech Machinery Technology Co., Ltd. is a leading manufacturer and exporter specializing in high-quality mining drilling tools, headquartered in Hebei Province, China. With over a decade of industry expertise, our company has established itself as a trusted provider of premium tapered and threaded rods, chisel bits, button bits, and a wide range of other mining drilling equipment. With our rich experience and professional engineering team, we focus on providing complete solutions for mining machinery.
