High - Tensile Steel Friction Bolts Rock Stabilization Tool

Mining Strong Support Tool Friction Bolts Size 47mm Material Q235

Description:

The bolt is made from high-tensile steel formed into a "C" shape (also known as a friction stabilizer).

When driven into a drill hole that has a smaller diameter than the bolt, the steel is compressed, creating radial friction against the rock walls.

This compression generates load transfer from the bolt to the surrounding rock, providing immediate support without the need for grouting or resin injection.

Specification:

Application:

Friction bolts are primarily used in copper, gold or other metallic mines. They're cost-effective, reliable, and easy-to-install underground support solution, making them a preferred choice for mining operations requiring fast and efficient rock stabilization. Their proven performance in hard rock mines ensures safety and structural integrity in underground workings.

Feature:

Made fromhigh-yield, high-strength steelfor superior durability.
Features ahigh-quality welded ring that maintains strong adhesion even under stress.
Even if the bolt body fractures, the welding ring remains securely in place, preventing sudden failures.
Available in black (uncoated) or hot-dip galvanized versions for enhanced corrosion resistance in harsh mining environments

Advantage:

1. Simple Installation
2. High Yield & Breaking Strength
3. Corrosion-Resistant Options

4. Strong Welding Ring Pull-Out Resistance

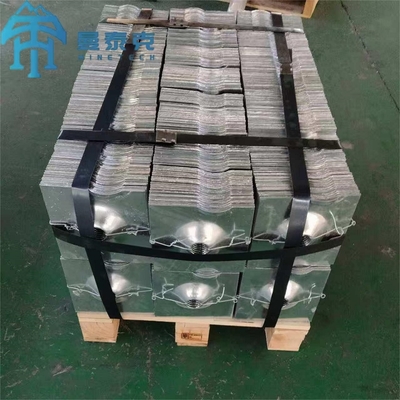

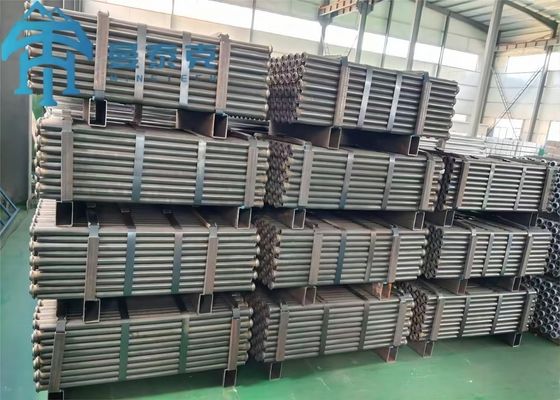

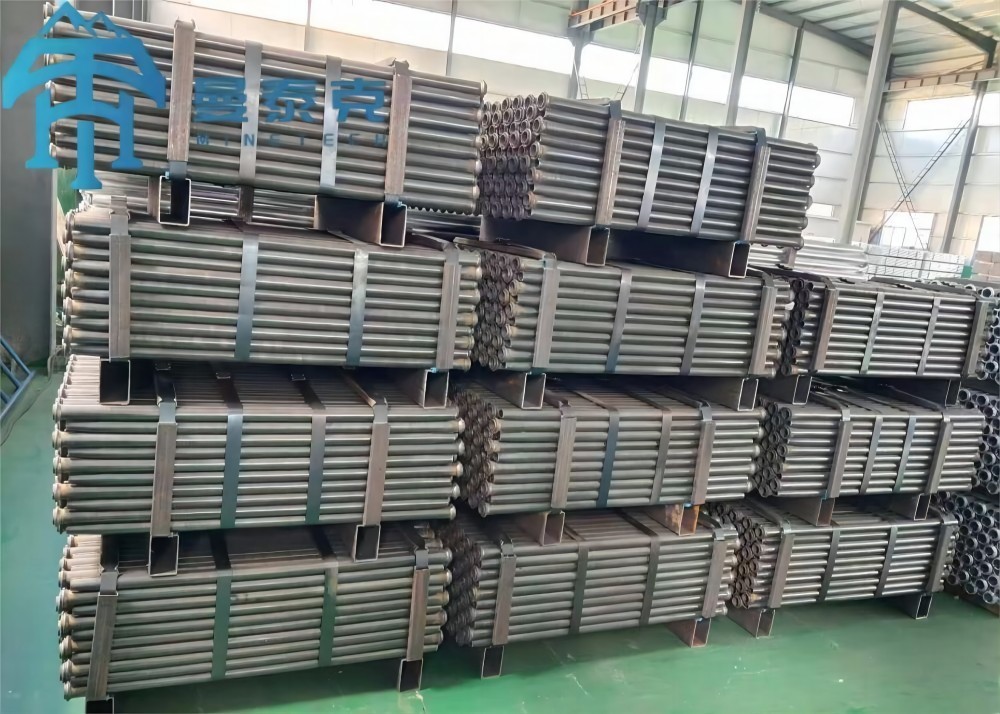

Package:

Friction bolt package is bundle, plate by pallet.

Company Profile:

Hebei Minetech Machinery Technology Co., Ltd. is a leading manufacturer and exporter specializing in high-quality mining drilling tools, headquartered in Hebei Province, China. With over a decade of industry expertise, our company has established itself as a trusted provider of premium tapered and threaded rods, chisel bits, button bits, and a wide range of other mining drilling equipment. With our rich experience and professional engineering team, we focus on providing complete solutions for mining machinery.
