Y26 Model Hand-Held Pneumatic Rock Drill with 60mm Piston Stroke and 28kg Weight for Efficient Drilling

Y26 Model Hand-Held Pneumatic Rock Drill with 60mm Piston Stroke and 28kg Weight for Efficient Drilling
Y26 Model Hand-Held Pneumatic Rock Drill with 60mm Piston Stroke and 28kg Weight for Efficient Drilling
Y26 Model Hand-Held Pneumatic Rock Drill with 60mm Piston Stroke and 28kg Weight for Efficient Drilling Y26 Model Hand-Held Pneumatic Rock Drill with 60mm Piston Stroke and 28kg Weight for Efficient Drilling Y26 Model Hand-Held Pneumatic Rock Drill with 60mm Piston Stroke and 28kg Weight for Efficient Drilling Y26 Model Hand-Held Pneumatic Rock Drill with 60mm Piston Stroke and 28kg Weight for Efficient Drilling

Large Image :  Y26 Model Hand-Held Pneumatic Rock Drill with 60mm Piston Stroke and 28kg Weight for Efficient Drilling

Product Details:
Place of Origin: CHINA
Brand Name: MTH
Certification: ISO 9001
Model Number: Y26
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 3000 pieces per month
Contact Now

Y26 Model Hand-Held Pneumatic Rock Drill with 60mm Piston Stroke and 28kg Weight for Efficient Drilling

Description
Name: Pneumatic Portable Drilling Machine/Hand Held Rock Drill/jack Hammer Model: Y26
Piston Stroke: 60mm Application: Surface Mining, Quarrying, Construction
Feature: High Drilling Efficiency Weight: 28kg
Highlight:

Y26 pneumatic rock drill

,

hand-held pneumatic drilling tool

,

powerful jack hammer rock drill

Y26 Hand-Held Pneumatic Rock Drill - Powerful Pneumatic Drilling Tool Jack Hammer
The Y26 hand-held rock drill machine features compact size, lightweight design, and low gas consumption, making it ideal for small mines, quarries, mountain roads, and water conservancy construction projects. It efficiently drills vertical downward or sloping blasting holes in surface layers, with an independent strong air blowing system for optimal performance.
Key Features
  • Compact and lightweight design for easy handling
  • Low gas consumption for efficient operation
  • Independent strong air blowing system
  • Suitable for vertical downward blasting holes
  • Ideal for small-scale mining and construction projects
Technical Specifications
Parameter Value Unit
Weight 26 KG
Outside dimensions (L×W×H) 650×534×125 MM
Cylinder diameter 65 MM
Piston Stroke 70 MM
Working Pressure 0.4 Mpa
Impact energy ≥30 J
Impact frequency ≥23 HZ
Air consumption ≤47 L/S
Idling rotational speed ≥200 R/min
Noise ≤124 dB(A)
Working water pressure 0.3-0.35 Mpa
Air pipe inner diameter 19 MM
Water pipe inner diameter 13 MM
Rock drill hole diameter 34-42 MM
Rock drill hole depth 5 M
Shank Size 22×108 MM
Product Images

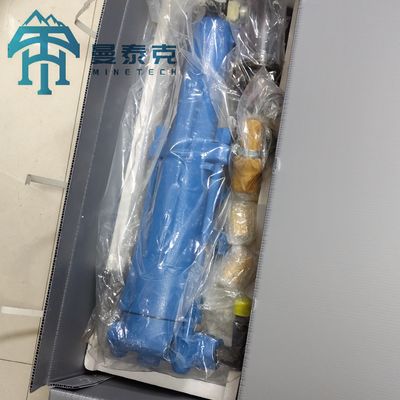

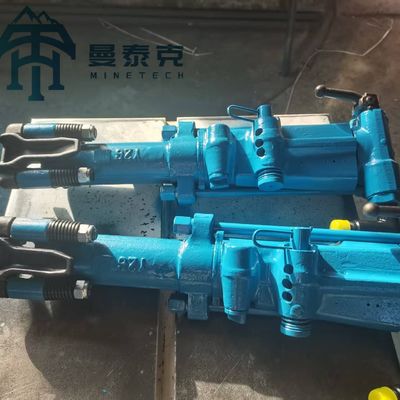

Y26 Model Hand-Held Pneumatic Rock Drill with 60mm Piston Stroke and 28kg Weight for Efficient Drilling 0

Y26 Model Hand-Held Pneumatic Rock Drill with 60mm Piston Stroke and 28kg Weight for Efficient Drilling 1

Y26 Model Hand-Held Pneumatic Rock Drill with 60mm Piston Stroke and 28kg Weight for Efficient Drilling 2
