YN27C Gasoline Rock Drill with 32-42MM Drilling Hole Diameter Max 6m Depth and 27kgs Weight for Ore Mining

Large Image : YN27C Gasoline Rock Drill with 32-42MM Drilling Hole Diameter Max 6m Depth and 27kgs Weight for Ore Mining

Product Details:

Place of Origin:	CHINA
Brand Name:	MTH
Certification:	ISO 9001
Model Number:	YN27C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$3-$300
Packaging Details:	wooden case
Delivery Time:	10-15 days
Payment Terms:	Western Union,T/T,MoneyGram
Supply Ability:	1000 pieces per month

Contact Now

YN27C Gasoline Rock Drill with 32-42MM Drilling Hole Diameter Max 6m Depth and 27kgs Weight for Ore Mining

Description

Product Name:	Gasoline Rock Drill	Model No:	YN27C
Drilling Hole Diameter:	32-42MM	Drilling Depth:	Max 6m
Weight:	27kgs	Size:	746315229
Color:	Yellow Or Customized	Usage:	Ore,mining Used,Rock Drilling
Package:	Wooden Box	Power Type:	Petrol Driven
Highlight:	YN27C internal combustion rock drill , rock drilling tools for construction , internal combustion rock drill with warranty

YN27C Internal Combustion Rock Drill

The YN27C gasoline rock drill is a powerful, portable drilling tool powered by a gasoline engine, eliminating the need for air compressors or external power sources. Its compact design, durable construction, and easy operation make it ideal for remote locations without water or electricity.

Key Features

Gasoline-powered for operation anywhere
Compact design with minimal vulnerable parts
Simple operation and easy control
Integrated system with engine, air pump, and drill components
Versatile applications including breaking, percussive drilling, and tamping

Operation Steps

Preparation: Check fuel and oil levels, select and install appropriate drill bit
Startup: Pull rope to start engine, adjust throttle to desired speed
Operation: Maintain firm grip, align drill with work surface, apply steady pressure
Shutdown: Turn off engine, clean equipment, inspect and maintain components

Technical Specifications

Model	YN27C
Engine Displacement	185 cm³
Engine Rotation Speed	2450r/min
Idle Speed	200 r/min
Drill Rod Size	22108mm/25108mm
Hole Diameter Range	32-46mm
Fuel Tank Capacity	1.14L
Drilling Speed	≥250mm/min
Oil Consumption Rate	0.12L/m
Fuel Mixture Ratio	9:1 (Gasoline:Lubricating Oil)
Spark Plug Clearance	0.5-0.7mm
Impact Energy	≥20 J
Weight	27kg
Dimensions	746315229mm

Key Advantages

Portable operation without external power or compressed air

High-efficiency performance for demanding drilling applications

Multi-functional with various drill bit and chisel options

Ergonomic design for reduced operator fatigue

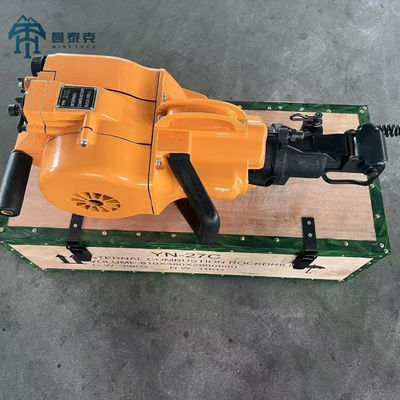

Product Images

Manufacturer Information

Hebei Minetech Machinery Technology Co., Ltd. is a joint venture enterprise with European partners, specializing in manufacturing and exporting mining machinery including hydraulic/pneumatic drill machines, roof bolters, and drilling consumables. With over a decade of experience and a professional engineering team, we provide complete solutions for mining applications. Our products are exported to more than 30 countries including Southeast Asia, USA, Germany, UK, South Africa, Poland, Russia, and South America, establishing a strong international reputation.
