YN27C Gasoline Rock Drill with Hex 22*108 Shank 32MM Drilling Hole Diameter and 5m Drilling Depth

Large Image : YN27C Gasoline Rock Drill with Hex 22*108 Shank 32MM Drilling Hole Diameter and 5m Drilling Depth

Product Details:

Place of Origin:	CHINA
Brand Name:	MTH
Certification:	ISO 9001
Model Number:	YN27C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$3-$300
Packaging Details:	wooden case
Delivery Time:	10-15 days
Payment Terms:	Western Union,T/T,MoneyGram
Supply Ability:	1000 pieces per month

Contact Now

YN27C Gasoline Rock Drill with Hex 22*108 Shank 32MM Drilling Hole Diameter and 5m Drilling Depth

Description

Product Name:	Gasoline Rock Drill	Model No:	YN27C
Drilling Hole Diameter:	32MM	Drilling Depth:	5m
Weight:	27kgs	Size:	746315229
Color:	Yellow Or Customized	Usage:	Ore,mining Used,Rock Drilling
Package:	Wooden Box	Power Type:	Petrol Driven
Highlight:	YN27C gasoline rock drill , rock drilling tools hex 22 , gasoline rock drill with warranty

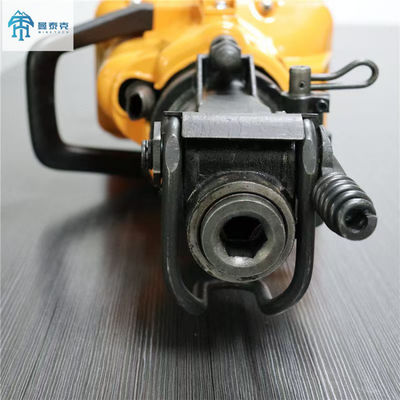

YN27C Gasoline Rock Drill Rock Drilling Tools with Shank Size Hex 22*108

The YN27C gasoline rock drill is a petrol-driven machine that operates without an air compressor. This highly efficient tool features a compact structure, minimal vulnerable components, and simple controls. Ideal for locations without water or electrical power, it combines a gasoline engine, air pump, rock drill, and rotation equipment into one portable unit suitable for breaking, percussive drilling, and tamping operations.

Key Components

Engine: Single cylinder, two-stroke petrol engine with air cooling, reflux air conversion, no contact ignition, and non-floating carburetor. Includes control parts, starter components, oil tank, flywheel, crankshaft, connecting rod, crankshaft case, magneto, piston, and cylinder components.
Air Compressor: Features separate engine piston and hammer piston mounted in upper and lower cylinder positions moving synchronously. Forms compression chamber with hammer piston and larger cylinder bore, including air inlet/outlet valves and ventilator valves.

Technical Specifications

Model	YN27C
Engine Displacement	185 cm³
Engine Rotation Speed	2450r/min
Idle Speed	200 r/min
Drill Rod Size	22*108mm
Hole Diameter Range	26-46mm
Fuel Tank Capacity	1.14L
Drilling Speed	≥250mm/min
Oil Consumption Rate	0.12L/m
Fuel Mixture Ratio	9:1 (Gasoline:Lubricating Oil)
Spark Plug Clearance	0.5-0.7mm
Impact Energy	≥20 J
Weight	27kg
Dimensions	746315229mm

Key Advantages

Portability: Operates without external power or compressed air, making it ideal for field operations and areas with limited electricity.

High Efficiency: Powerful internal combustion engine delivers excellent performance for drilling and hole drilling operations.

Multi-function: Compatible with various drill bits and chisels to accommodate diverse work requirements.

Easy Operation: Simple start/stop controls and ergonomic design minimize operator fatigue.

Product Images

Manufacturer Information

Hebei Minetech Machinery Technology Co., Ltd. is a joint venture enterprise with European partners specializing in manufacturing and exporting mining machinery including hydraulic/pneumatic drill machines, roof bolters, and drilling consumables.

With over a decade of experience and a professional engineering team, we provide complete solutions for mining applications. Our products are exported to more than 30 countries including Southeast Asia, USA, Germany, UK, South Africa, Poland, Russia, and South America, establishing a strong international reputation.
